AUSA · Articulated Dumper

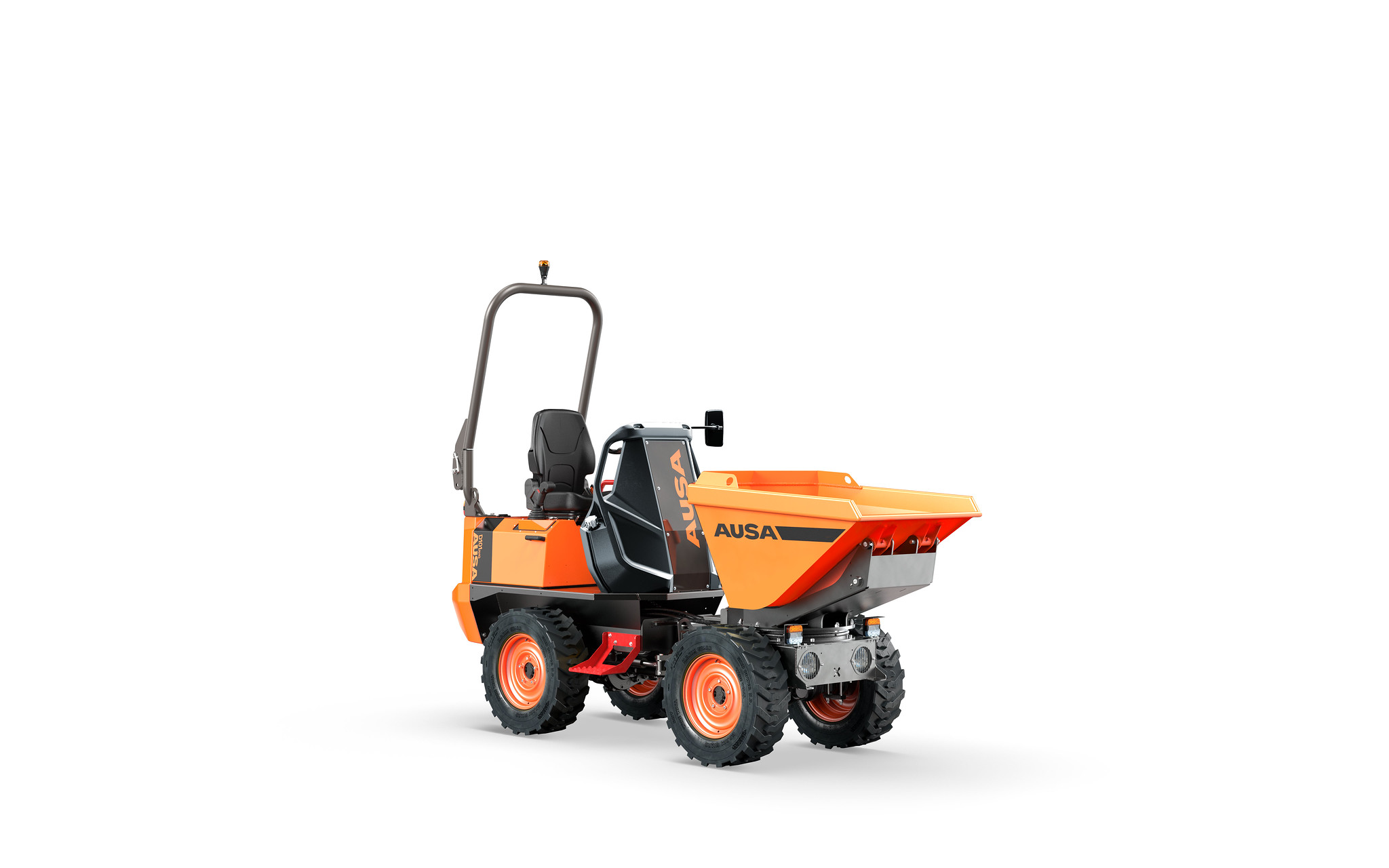

AUSA D101AHG Dumper
Description
The Compact Dumper For King Size Jobs
The D101AHG is AUSA’s most compact dumper with a swivel skip. Its compact size and excellent maneuverability make it ideal for conveniently unloading materials into side ditches. With hydrostatic transmission, comfort and safety are given. The transmission’s retention prevents the machine from rolling on slopes, even without applying the brake. Additionally, with no need to shift gears, the operator can fully focus on maneuvering the machine and managing the load.
Features & Benefits
Articulating dumping feature
Safety combined with versatility
Seat with operator's presence sensor
4x4 traction for stability
LED green rotating beacon
Low emissions
White noise acoustic warning for reverse gear
Front LED working lights
Second rear-view mirror
Waterproof document holder
Specifications
AUSA D101AHG Dumper Specifications
Unloading SystemSwivel tip
Load Weight Capacity2,200 lbs.
ChassisArticulated
Heaped Skip Capacity0.71 cu yd / Level Skip Capacity 0.51 cu yd
TransmissionHydrostatic
Max. Speed9 mph
Maximum Gradient35 %
External Turning Radius118 in.
Traction4x4
Tires27x8.50-15
Fuel Tank9.9 gallons
Engine Options
ModelPowerEmissions
Kubota D1105-E4B20.6 hpStage V - EPA Tier 4
