AUSA · Articulated Dumper
AUSA D301AHG Dumper
Description
Easy Maintenance & Budget-Friendly Performance All-In-One
With a 6,600 lb. payload, swivel skip, and hydrostatic transmission, the D301AHG dumper offers outstanding productivity, cost-effectiveness, and safety. Its power-to-weight ratio ensures low fuel consumption and makes it an extremely maneuverable machine with a high capacity for transporting material.

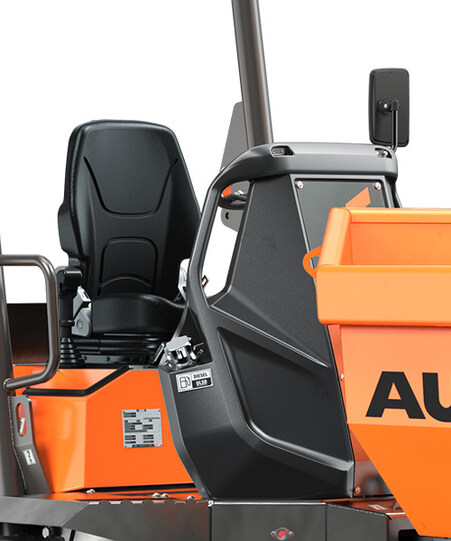

Additionally, the counterweight’s large central grille allows quick access to the cooler, making it easy to clean and remove. The driving position is equipped with a seat with a presence sensor and a seat belt with a buckle sensor to prevent unintentional machine start-up. Additionally, it has an electronic negative brake that automatically engages when the dumper’s engine is switched off, preventing any movement.
Features & Benefits
Multiple safety features
High-capacity transportation advantages
Rear folding ROPS protective structure
Fuel Efficient
Easy maintenance accessibility
Anti-vandal security system
Camera on the counterweight side and proximity sensors
Adjustable ergonomic seat
All-in-one joystick
Specifications
AUSA D301AHG Dumper Specifications
Operating Weight5,070 lbs.
Load Capacity6,600 lbs.

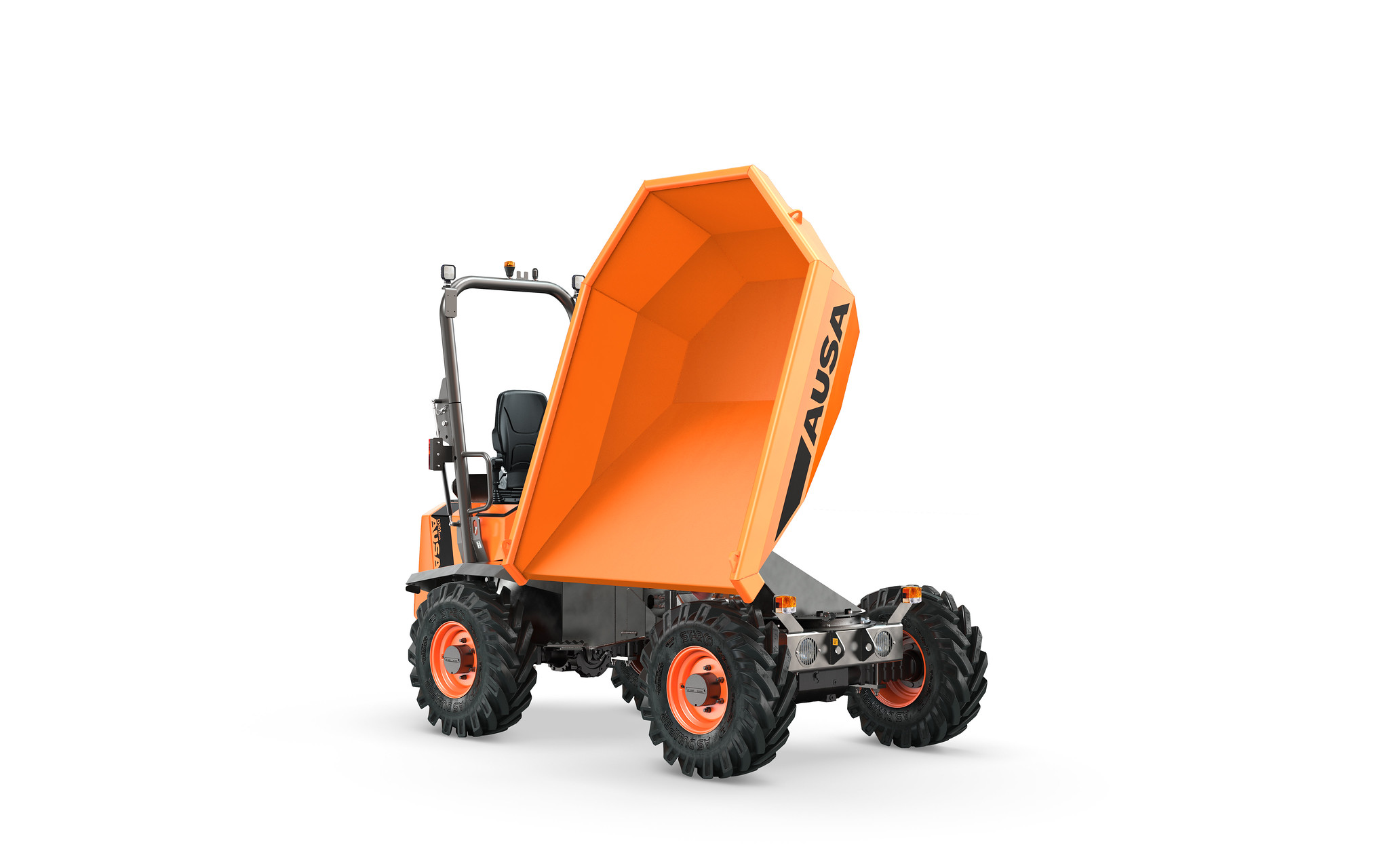

Unloading SystemSwivel tip
ChassisArticulated
Heaped Skip Capacity2.28 cu yd / Level Skip Capacity 1.72 cu yd
TransmissionHydrostatic
Max. Speed11.2 mph
Maximum Gradient50 %
External Turning Radius155.7 in.
Traction4x4
Tires11,5/80-15.3
Fuel Tank9.9 gallons
Engine Options
ModelPowerEmissions
Kubota V1505-E4B24.8 hpStage V - EPA Tier 4
Gallery
See It in Detail
