AUSA · Articulated Dumper

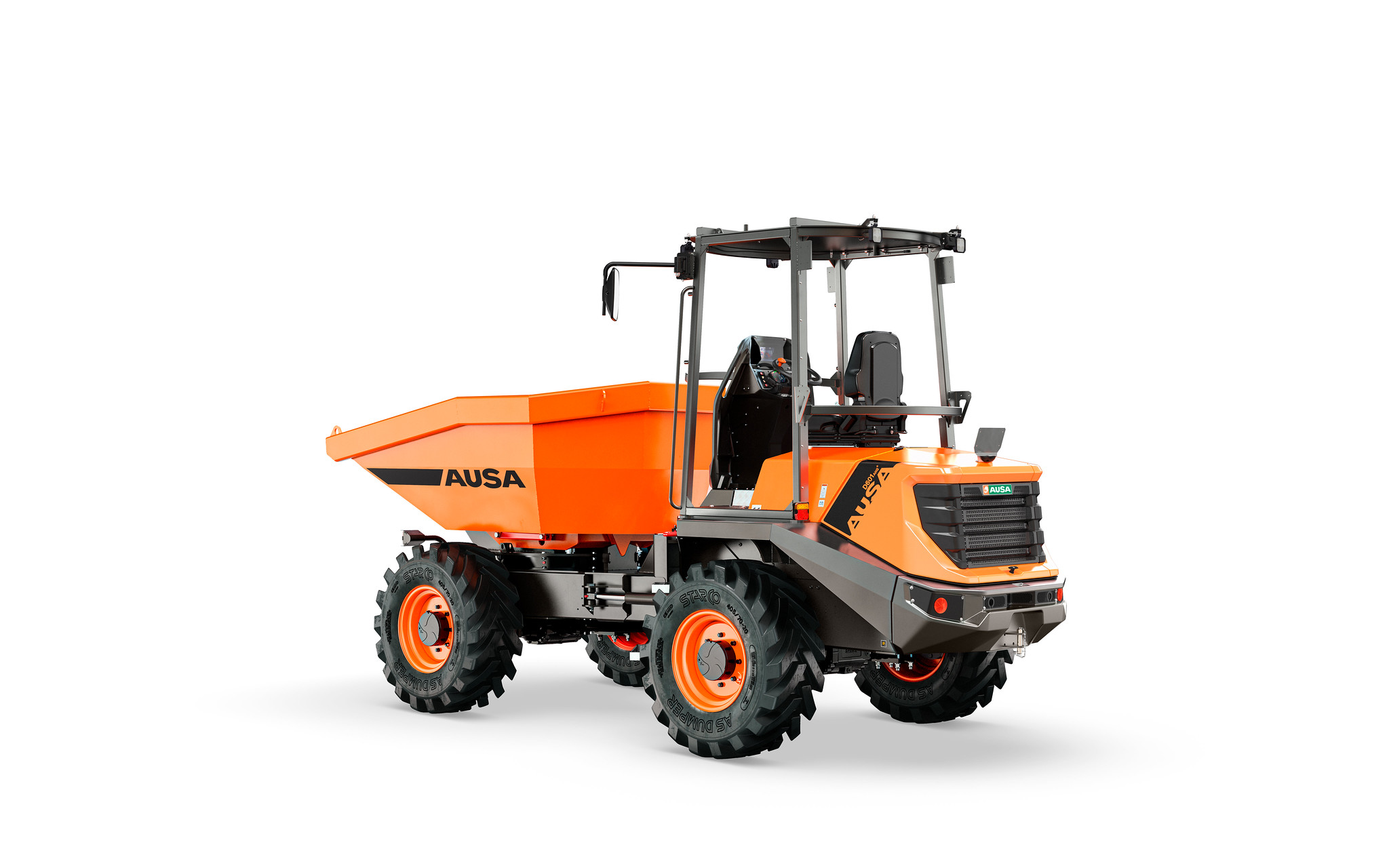

AUSA D601AHG Dumper
Description
Powerful Payload With Articulating Advantages
Cost-effective, safe, and high-tech. It has a 180-degree swing skip, a 13,200-lb. payload, and a hydrostatic transmission for maximum comfort and safety. The D602AHG dumper is efficient and environmentally friendly. Equipped with the ECO Mode system as standard, which automatically regulates the machine’s RPM at low speeds, and the optional Smart Stop feature, which switches off the engine when not in use, you will significantly reduce fuel consumption while maintaining low CO2 emissions.
You will also have an exceptionally safe system. It features a new Hill Holder system that automatically applies the brakes when you lift off the accelerator at speeds close to zero. Imagine how easy it will be to maneuver on any slope!
Features & Benefits
Closed ROPS/FOPS cab with heating and air conditioning
Exceptional safety features
180-degree articulation duping
Large payload capacity for fewer trips
Rear folding ROPS protective structure
Camera on the counterweight side and proximity sensors
Three rear-view mirrors
Hill Holder - hill-start assist
Specifications
AUSA D601AHG Dumper Specifications
Operating Weight9,843 lbs.
Unloading SystemSwivel tip
Load Weight Capacity13,200 lbs.
ChassisArticulated
Heaped Skip Capacity4.12 cu yd / Level Skip Capacity 3.21 cu yd
TransmissionHydrostatic
Max. Speed15.5 mph
Maximum Gradient45 %
External Turning Radius232 in.
Traction4x4
Tires405/70-20
Fuel Tank18.2 gallons
Engine Options
ModelPowerEmissions
DEUTZ TD3.6 L474.3 hpStage IIIB - EPA Tier 4F
