AUSA · Articulated Dumper

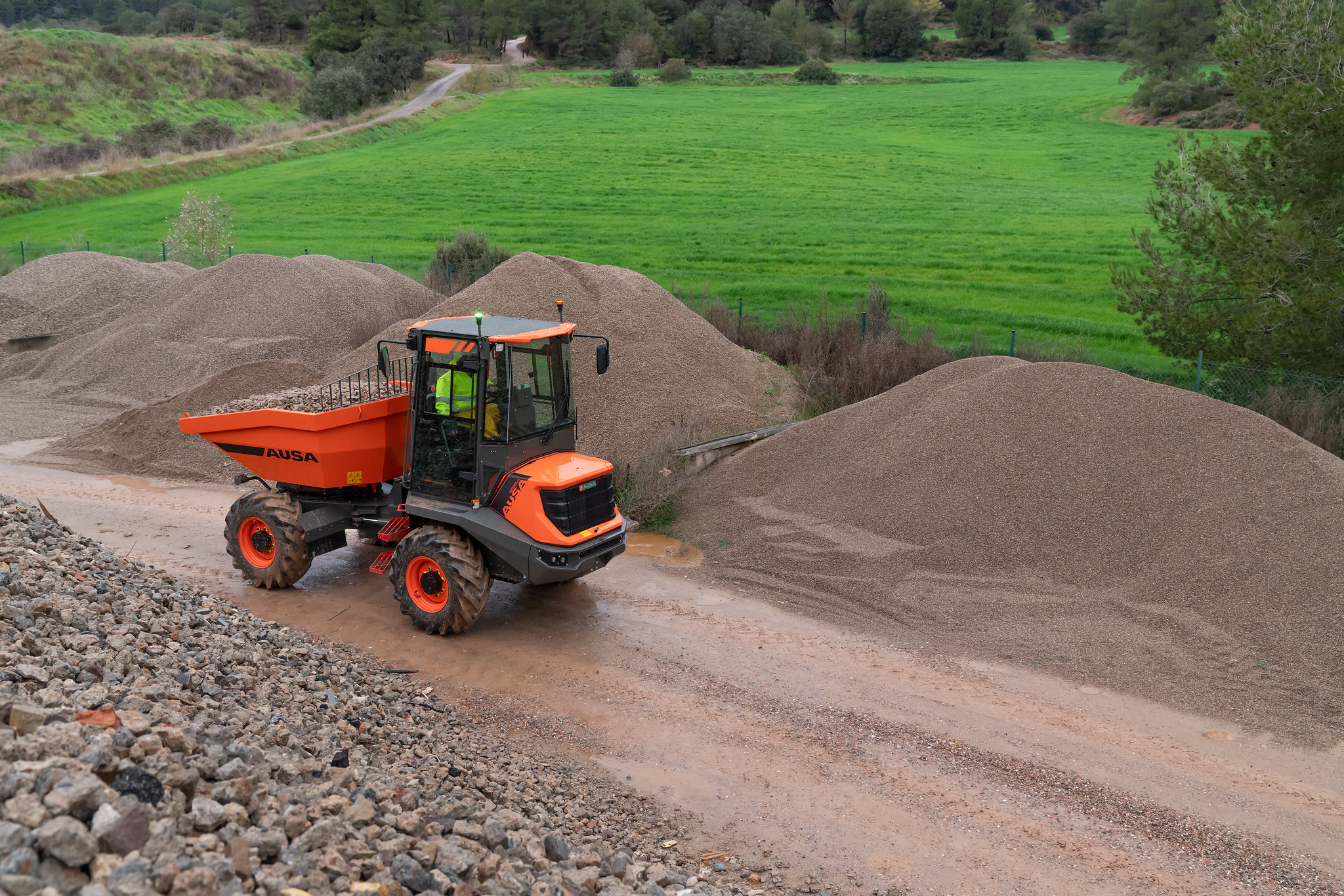

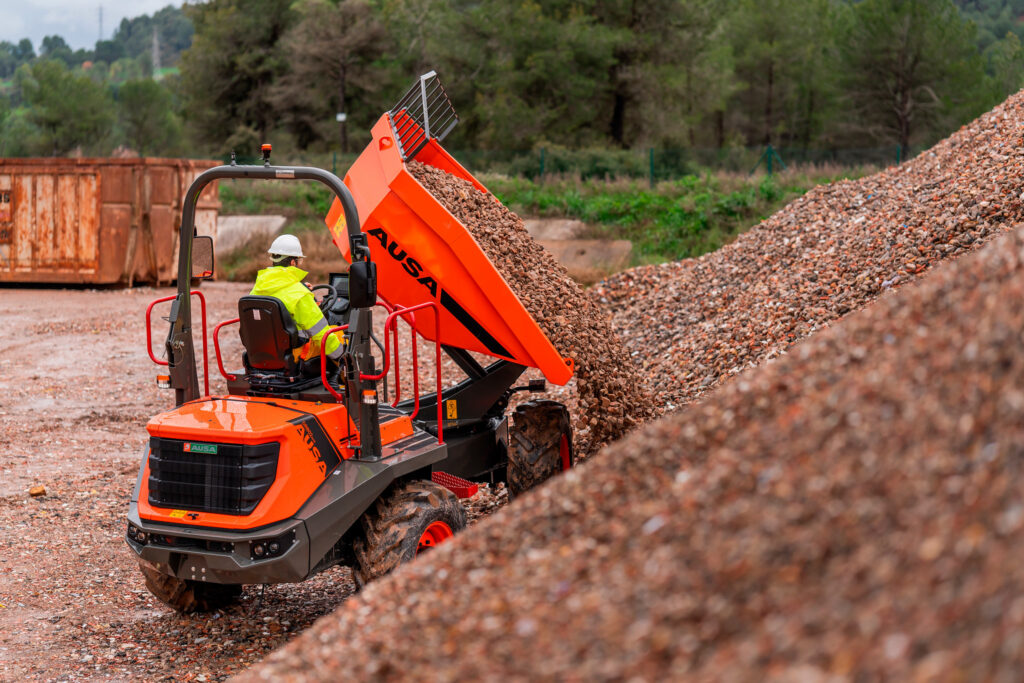

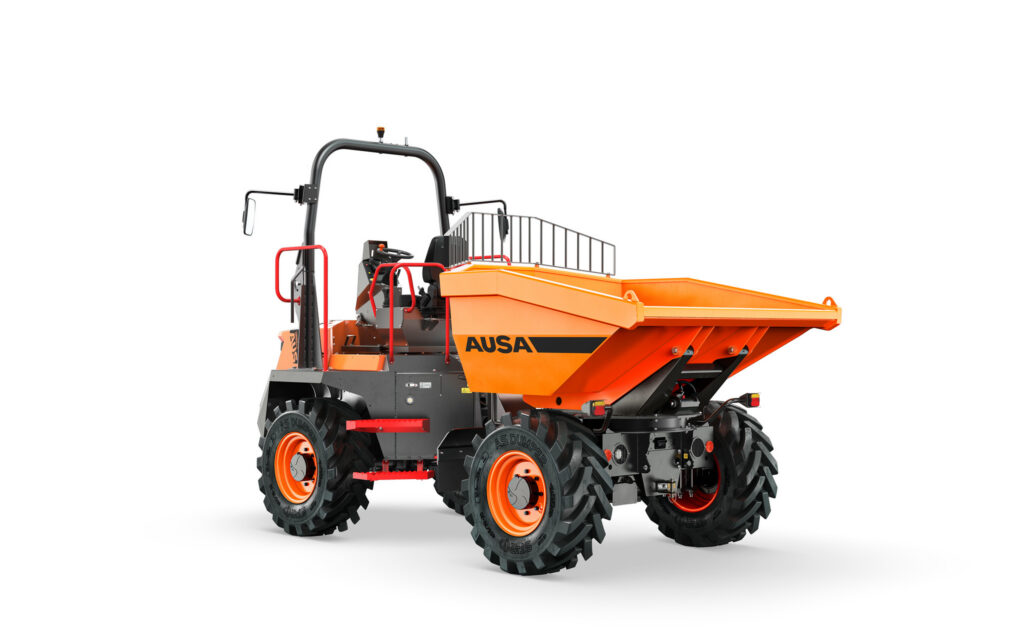

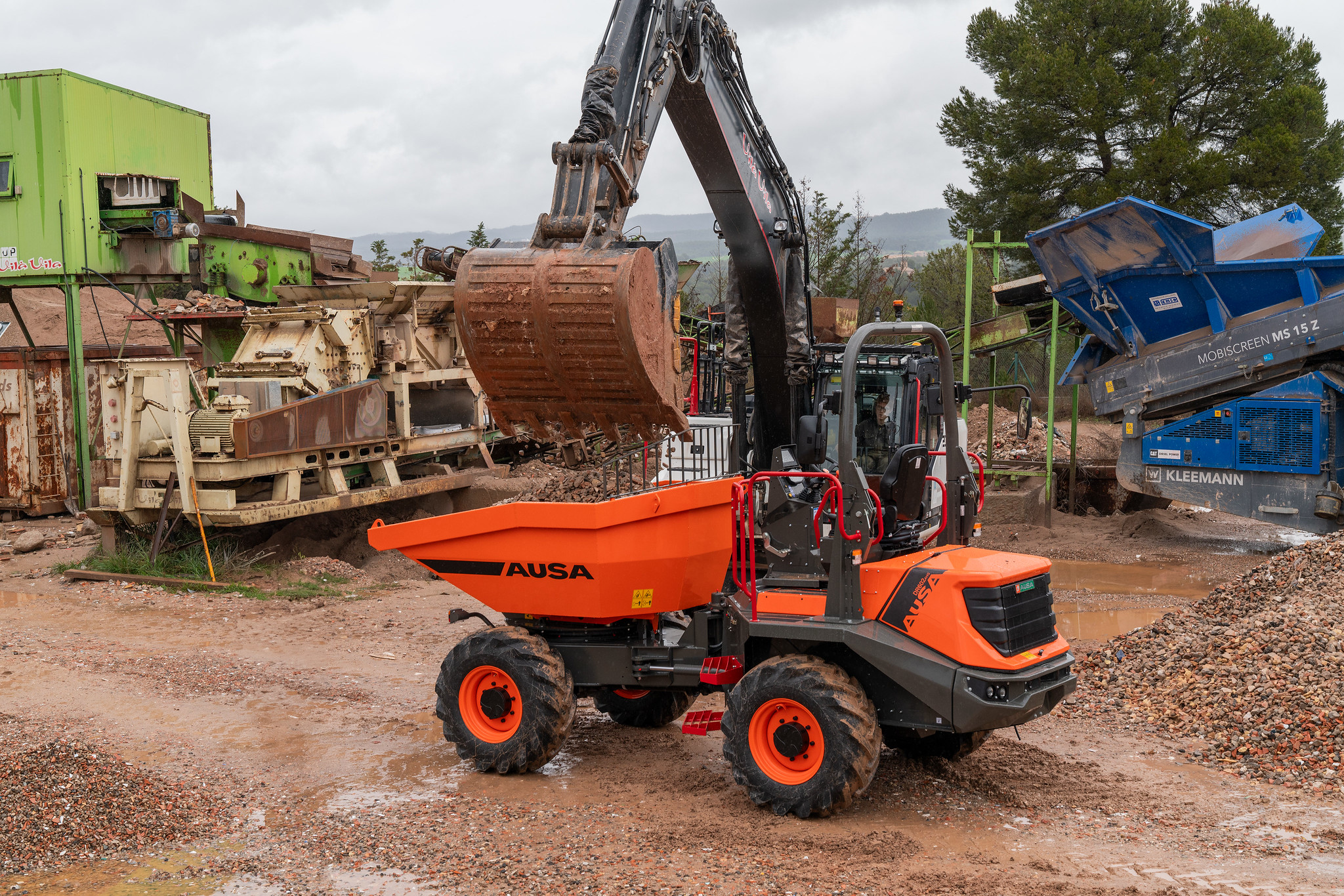

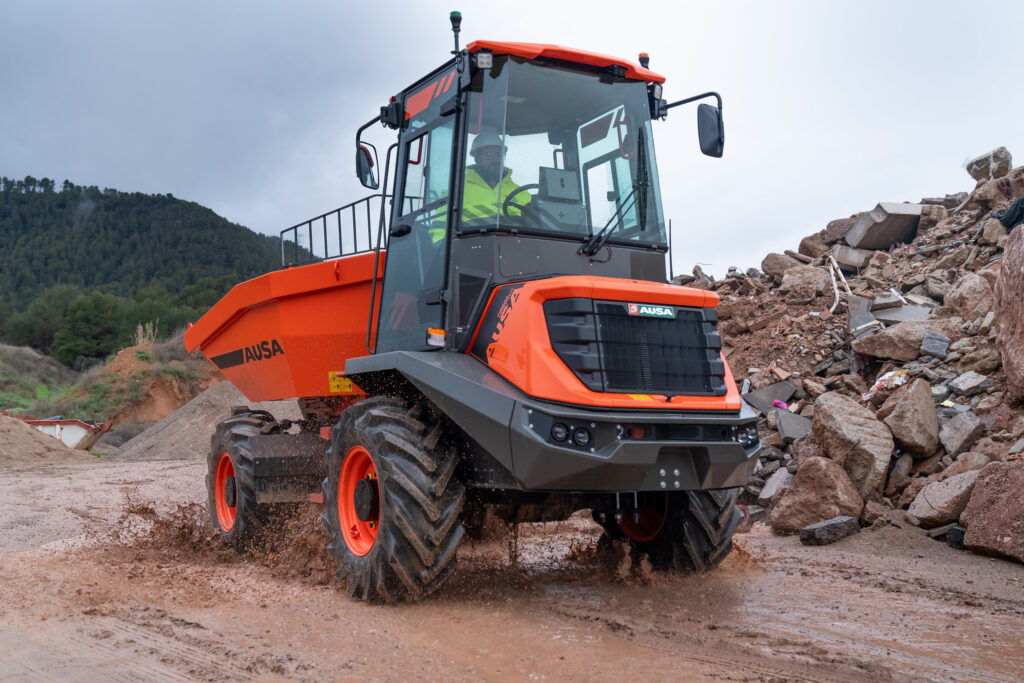

AUSA DR602AHG Dumper
Description
High-Performance Dumper with Multi-Directional Driving Safety
With a 13,200-lb. load capacity and a swivel skip, its standout feature is the reversible driving position. The operator can rotate the seat, steering wheel, and controls 180º to ensure optimal visibility by always facing forward. This configuration enhances safety during earthmoving tasks and minimizes the need for maneuvers, thereby improving operational efficiency.
The DR602AHG features a large hood, improving accessibility to the engine and maintenance components. Key elements such as air, liquid, and fuel filters, the radiator, and fluid tanks have been strategically positioned to reduce downtime and simplify servicing tasks.
Features & Benefits
180-degree control dumping
Closed ROPS/FOPS cab with heating and air conditioning
Maximum maneuverability in earth-moving tasks
Accessibility to major engine parts and components
Acoustic warning for reverse gear
Low maintenance costs
Anti-vandal security system
Three rear-view mirrors
All-in-one joystick
Hill Holder - hill-start assist
Specifications
AUSA DR602AHG Dumper Specifications
Unloading SystemSwivel tip
Load Weight Capacity13,200 lbs.
ChassisArticulated
ReversibilityReversible
Heaped Skip Capacity4.12 cu yd
Operating Weight9,310 lbs.
TransmissionHydrostatic
Max. Speed15.5 mph
Maximum Gradient49 %
External Turning Radius232 in.
Traction4x4
Tires405/70-20
Fuel Tank15.8 gallons
Engine Options
ModelPowerEmissions
Deutz TD2.9 L474.3 hpStage V
