Faresin · Telehandler (Middle Range)

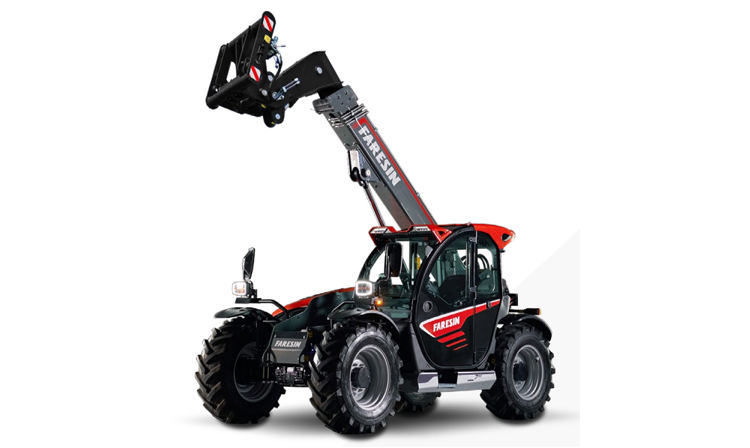

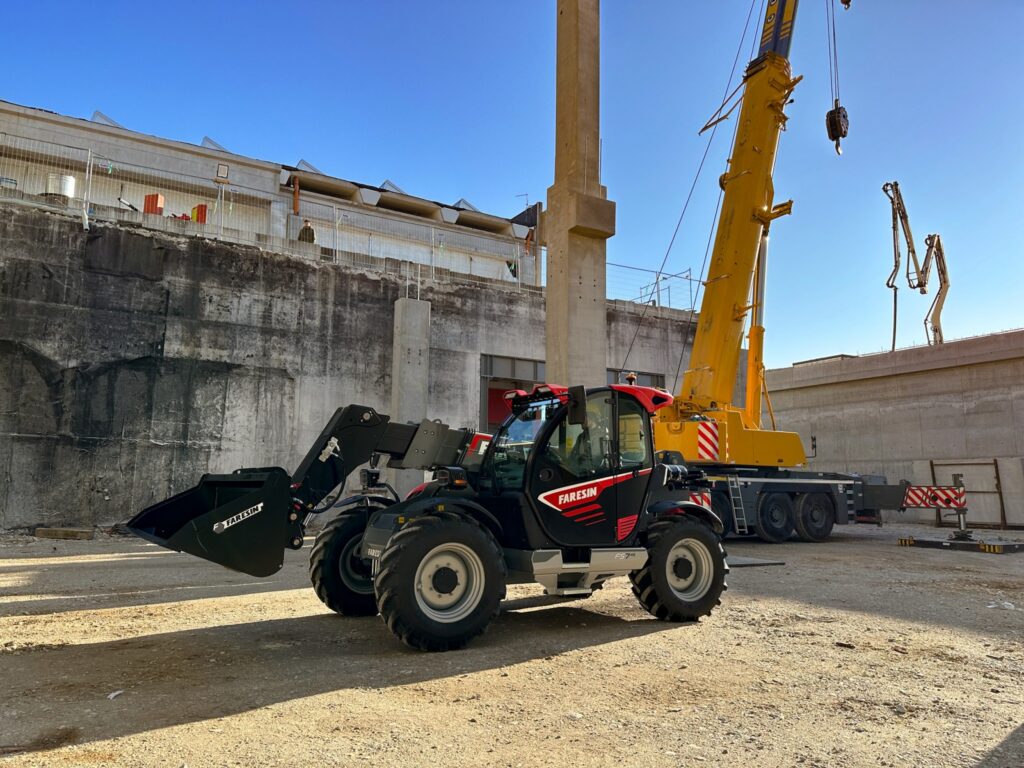

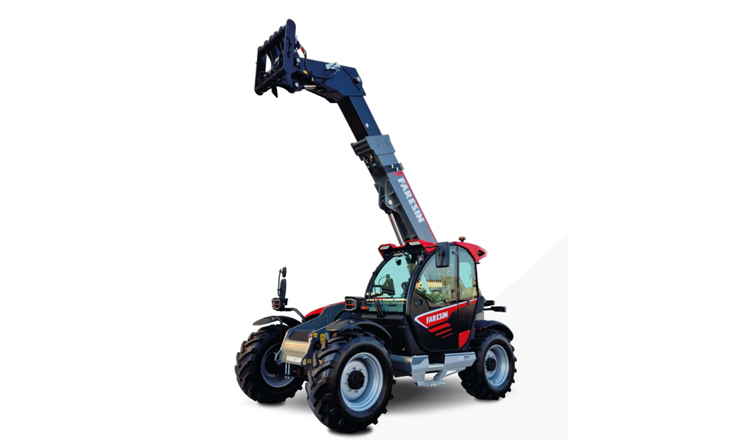

Faresin FT-1023 Telehandler

An All-Round Powerful, Flexible Telehandler

The telescopic handlers in the new FS Middle series are versatile machines, capable of handling any task, whether in agriculture or construction. They can lift up to 4.5 tons and feature booms ranging from 7 to 10 meters. Additionally, they can be equipped with the HVTronic electronically controlled continuously variable transmission, ensuring smooth and comfortable transfers—a must-have for all operators.

The FT-1023 has a low-profile hood, high-visibility full-LED lighting, and wide, adjustable rearview mirrors. Faresin Industries has purposely over-engineered it to ensure versatility, fast work cycles, and smooth, precise movements. The hydraulic oil circuit follows the same design philosophy, offering modular solutions for every application while optimizing performance and fuel efficiency.

Features & Benefits
Enhanced boom movement fluidity and speed, even at low speeds
Autonomous, reversible cooling fan
4-wheel drive steering with 3 steering modes for more versatility on jobsites
Highly sensitive and precise boom controls
Hydraulic capacity flow rate: 26.4 gal @ 3,625 psi
Hydraulic gear pump power supply

Faresin FT-1023 Telehandler Specifications

Operating Weight18,453 lbs
Max LIfting Capacity9,920 lbs.
Max Lifting Height23′ 3″
Horizontal Boom Extension11' 8"
Swinging Angle155°
Travel Speed24 mph
Turning Radius13' 1"
Tires400/70 20
Fuel Tank31.7 gallons

Engine Options

ModelPowerEmissions
Deutz diesel75 hpStage V
