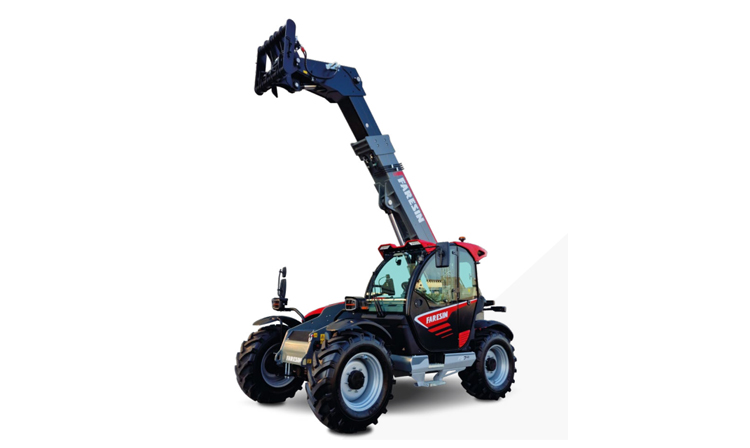

Faresin FT-7023 Telehandler
Description
The Ultimate Powerful & Efficient Telehandler Available
The new FS Compact series features telehandlers with a maximum lifting capacity of 6,400 lbs. and a maximum reach of 29.5 feet. Despite their compact size, these machines deliver exceptional performance, offering unique agility, impressive stability, and unmatched versatility. The series also offers a lowered cab option, keeping the overall height to just 6.8 feet.
All versions of the FS Compact series come standard with Ecodrive hydrostatic transmission control. This advanced system adjusts power distribution based on the driving mode, optimizing engine performance while significantly reducing fuel consumption.
Features & Benefits
Largest cab in its class
360-degree vision at all times for greater safety
4-wheel drive steering with 3 steering modes for more versatility on jobsites
Multi-function electro-proportional joystick with built-in reverser
Ecodrive hydrostatic transmission
Easily accessible engine compartment for simple maintenance

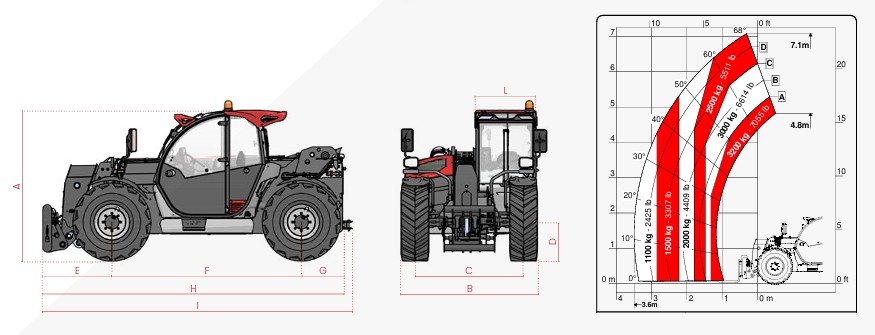

Specifications
Faresin FT-7023 Telehandler Specifications
Operating Weight13,999 lbs.
Max LIfting Capacity 7,054 lbs.
Max Lifting Height23′ 2″
Horizontal Boom Extension29' 5"
Swinging Angle155°
Travel Speed18.6 mph
Turning Radius10′ 8″
TransmissionSingle-gear hydrostatic transmission
Tires400/70 20
Fuel Tank31.7 gallons
Engine Options
ModelPowerEmissions
Duetz Diesel75 hpStage V

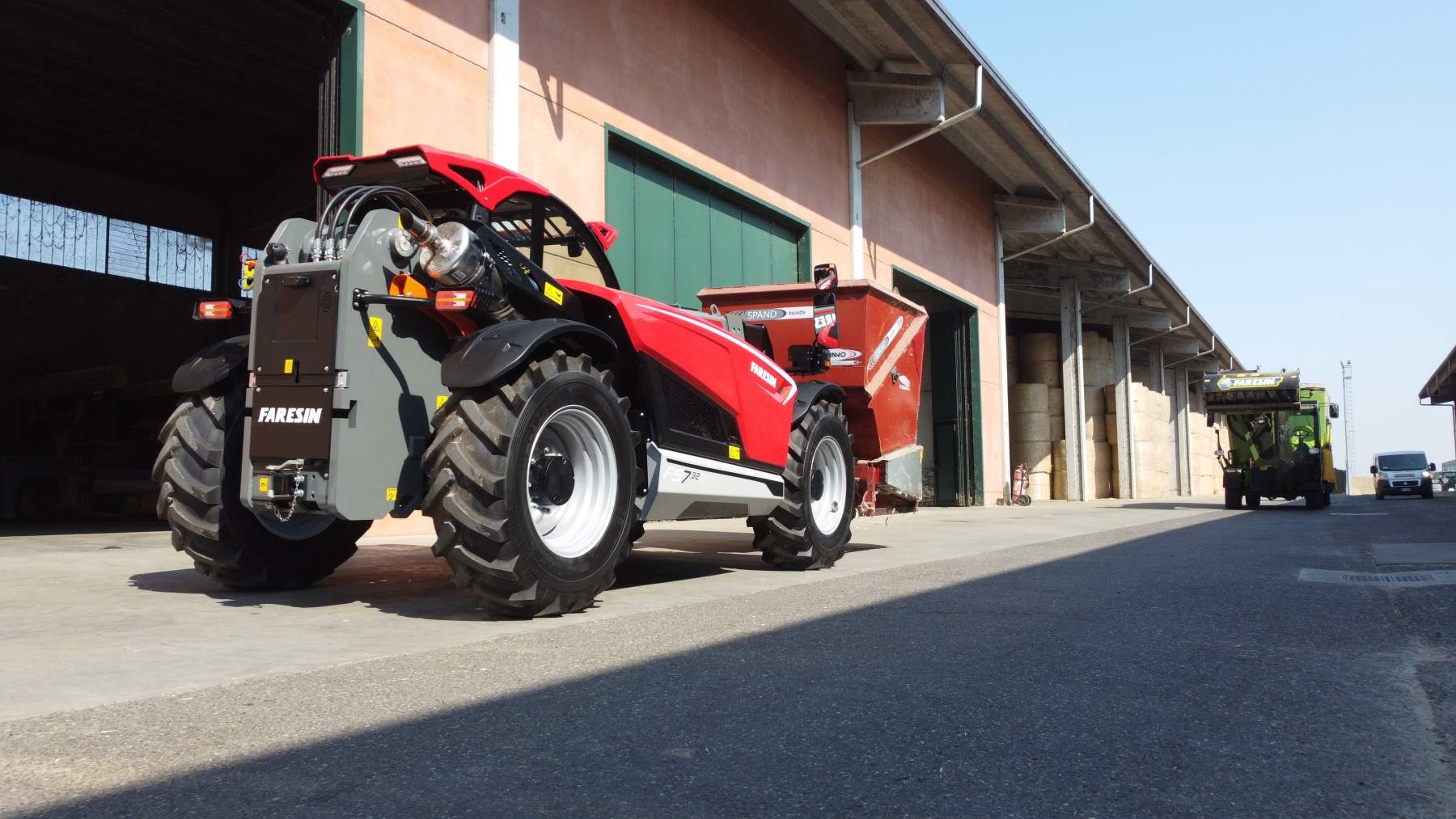

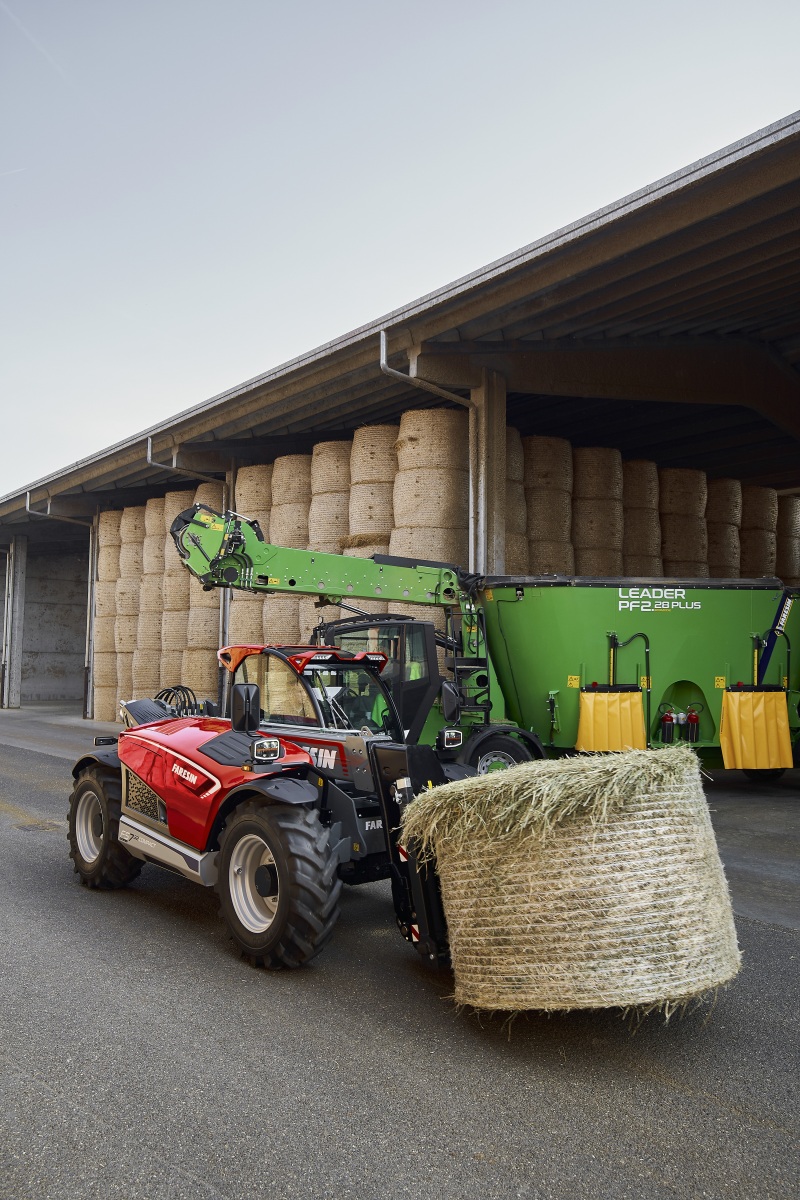

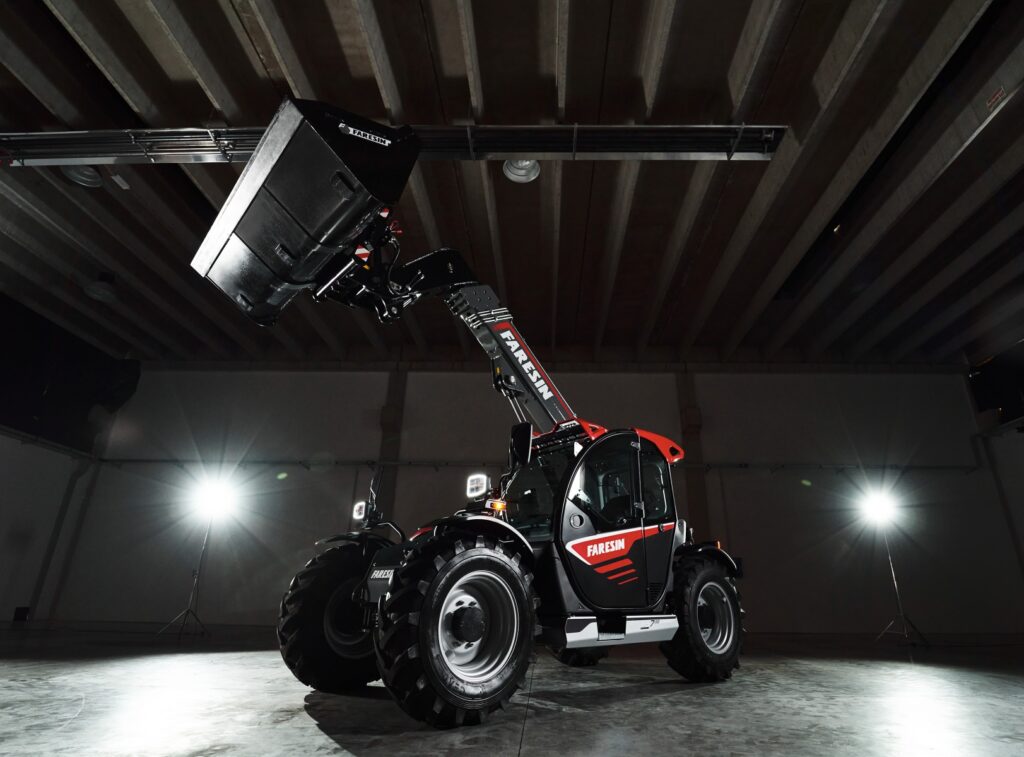

Gallery
