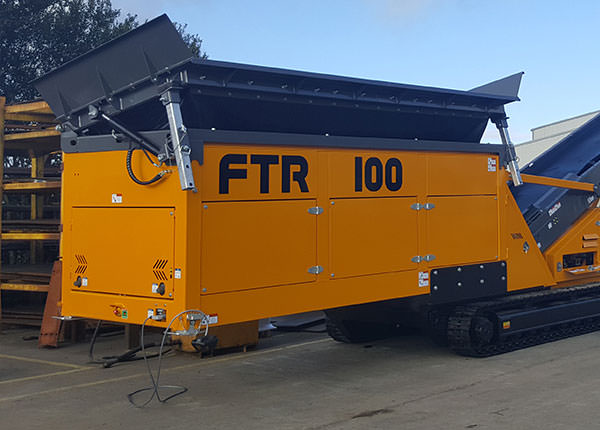

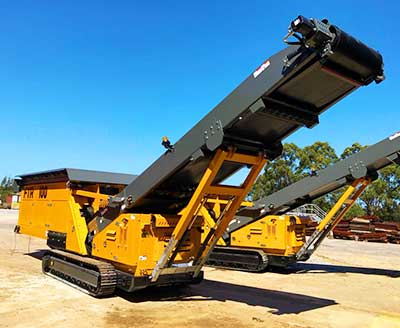

Anaconda FTR100 Feeding Conveyor
Description
Reducing Material Handling Time To Save More Money
The Anaconda FTR100 Feeding Conveyor features a 14’ feeder with a 8.5 yd³ hopper and can be used for a wide range of applications such as sand, gravel, aggregates, compost, coal, and wood chips. The FTR100 has a variable-speed conveyor to accommodate different material-processing requirements and can be fitted with an overband magnet for material separation. With the addition of a double-deck vibrating grid, the FTR100 can be transformed into a screen to scalp off oversize material.
Features & Benefits
Hydraulic jacking legs for easy set up
Hydraulic folding head section
Easy access to engine compartment
Set up within 15 minutes
Heavy-duty/high-torque applications
Optional Features
Straight or flared extensions · Mulching drum in feeder hopper · Remote control tipping grid · Two deck vibrating grid · Dust cover for the main belt · Radio remote control · Overband magnet · Twin gearbox drive on feeder or main conveyor for heavy-duty/ high torque applications
Specifications

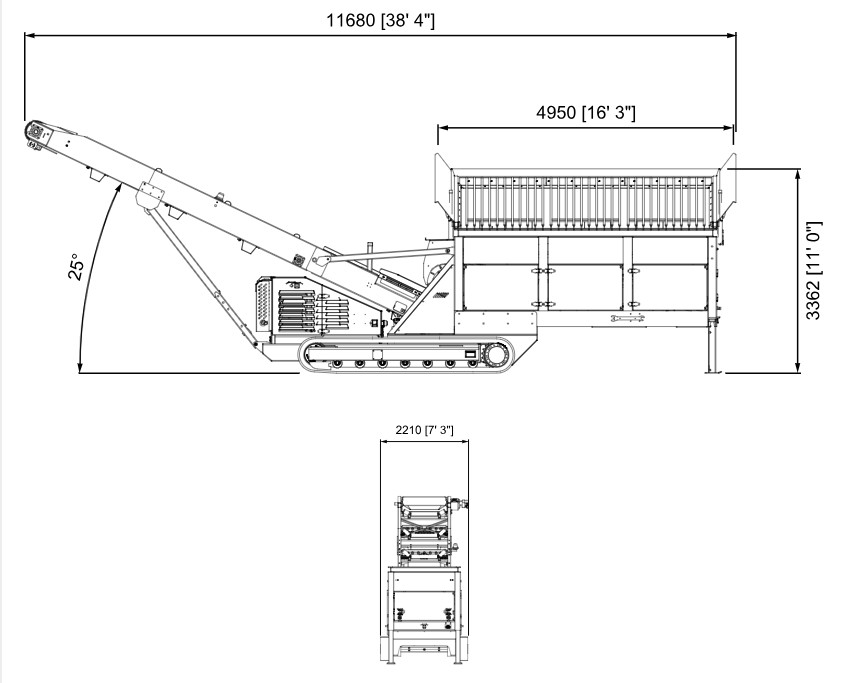

Anaconda FTR100 Feeding Conveyor Specifications
Height13′ 6″
Length38′
Width7′ 4″
Weight (Vibrating grid)37,919 lbs.
Hopper Capacity13 yd³
Variable Speed Belt Feeder42″
Engine Options
ModelPowerEmissions
Deutz 201149 kW (66 HP)Tier 3
JCB 444 DieselMAX63 kW (84 HP)Tier 3
JCB 444 EcoMAX55 kW (74 HP)Tier 4F
JCB 430 DieselMAX55 kW (74 HP)Stage V
Deutz 2.9 L450 kW (67 HP)Stage V
Gallery
See It in Detail
