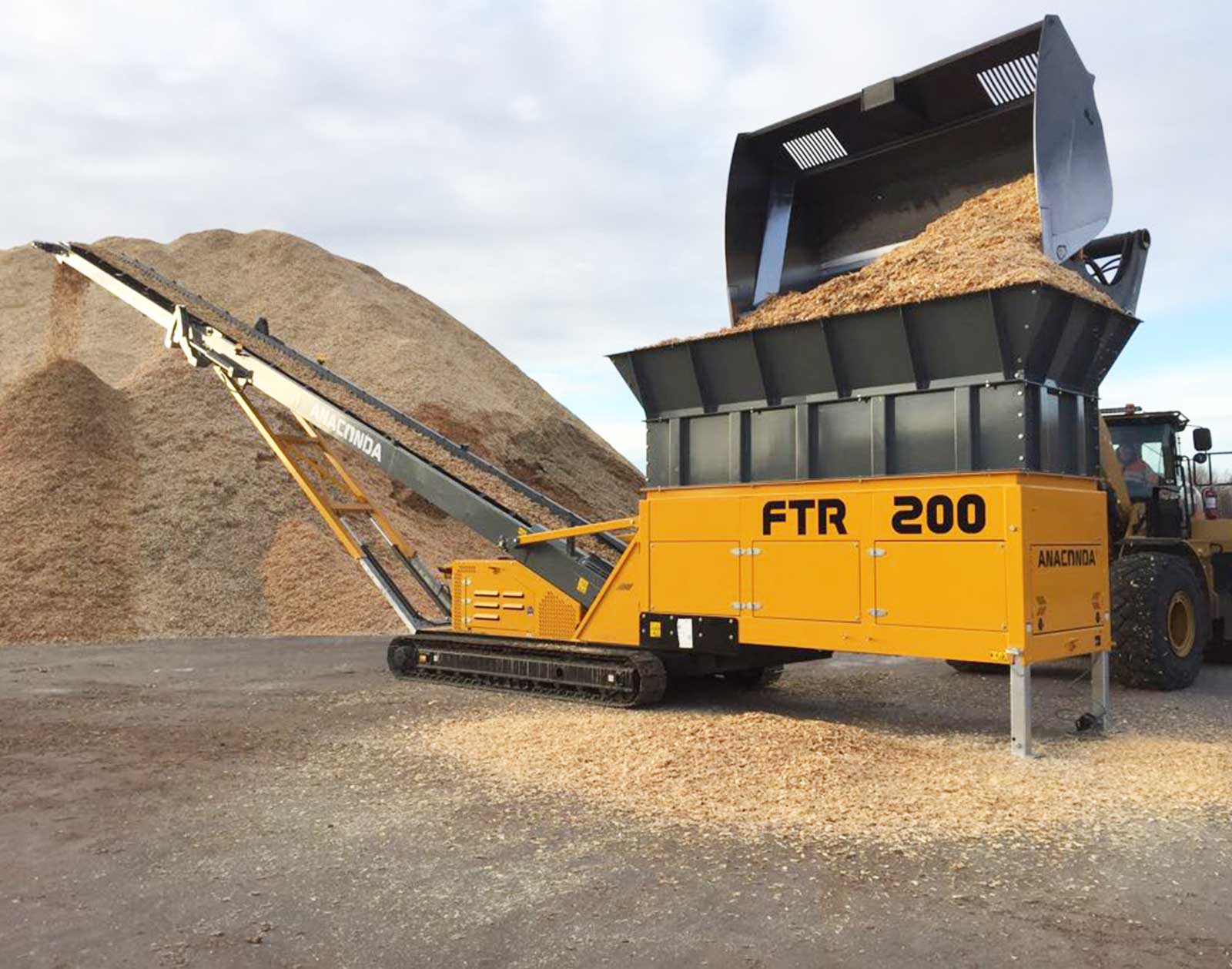

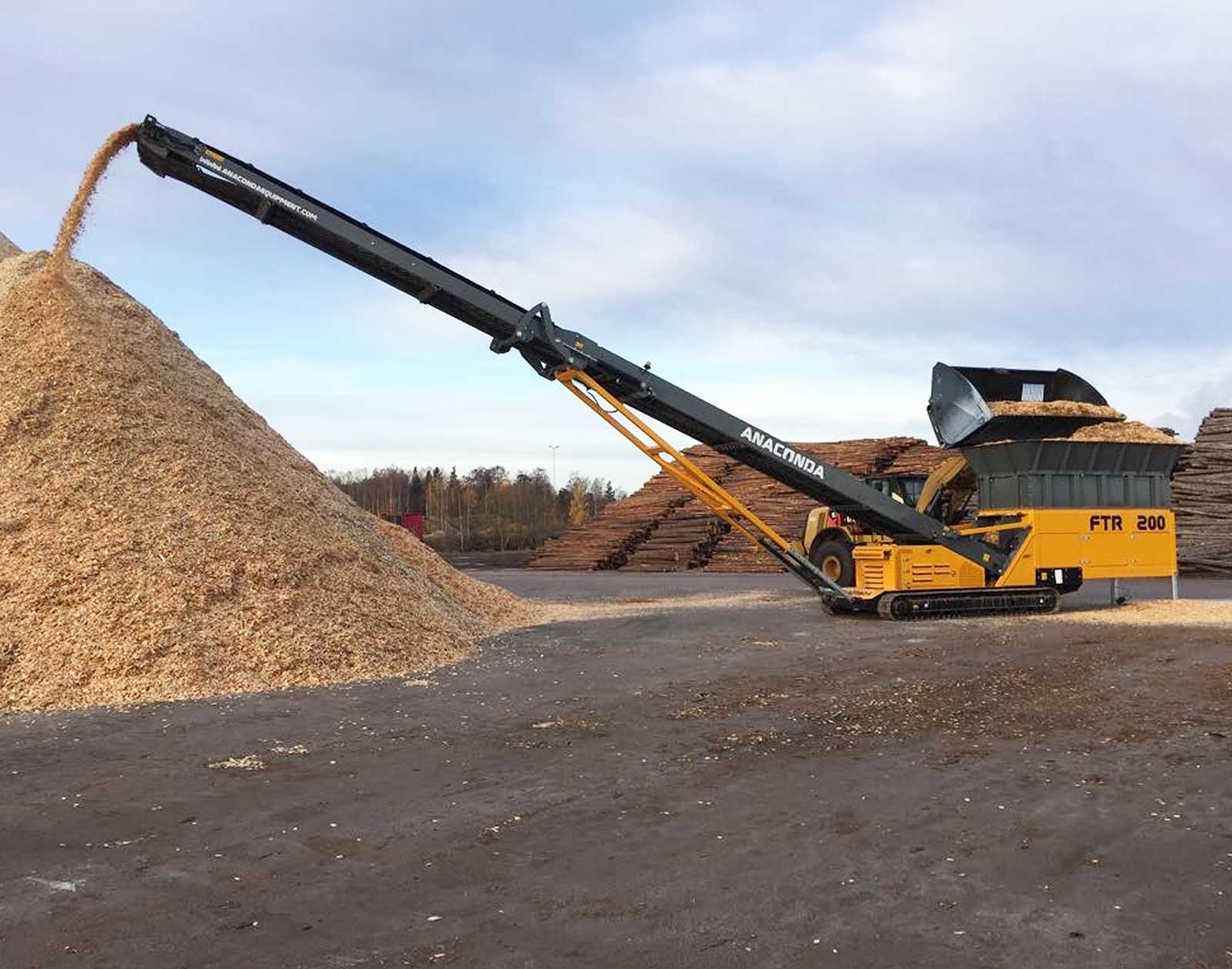

Anaconda FTR200 Feeding Conveyor
Description
Create Stockpiles or Load Barges/Trucks With Ease
The Anaconda FTR200 Feeding Conveyor is a variable-speed conveyor capable of processing sand, gravel, aggregates, compost, coal, and wood chips. The FTR200 is the largest in the Feeding Conveyor range with a length of 66’ and a hopper capacity of 17 yd³. The unit can be fitted with an overband magnet to enhance stockpile quality and used as a screen by adding a double-deck vibrating grid to scalp oversize material. The FTR200 can also operate as a mulcher with the optional mulching drum kit.
Features & Benefits
Hydraulic jacking legs for easy set up
Hydraulic folding head section
Easy access to engine compartment
Optional Features
Straight or flared extensions · Mulching drum kit · Remote control tipping grid · Two-deck vibrating grid · Dust cover for main belt · Radio remote control · Overband magnet
Specifications

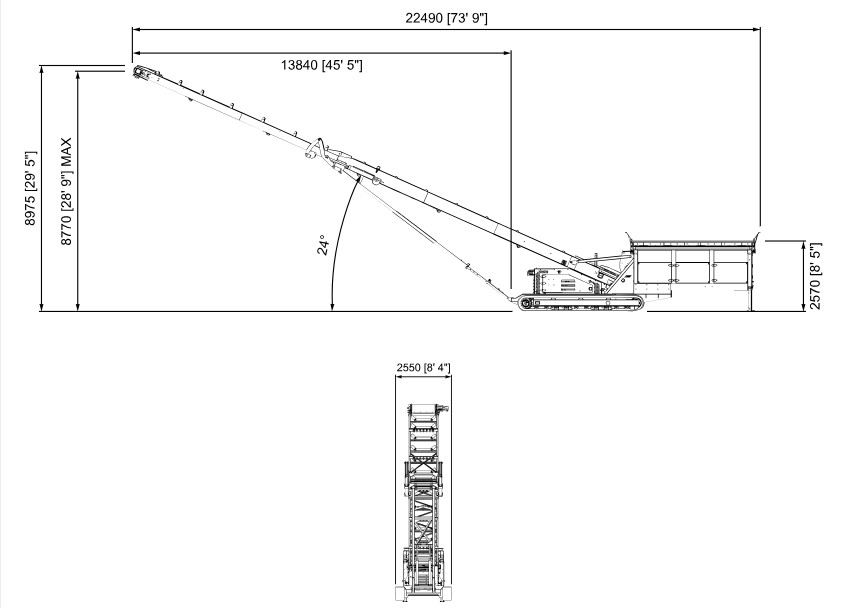

Anaconda FTR200 Feeding Conveyor Specifications
Height29′ 4″
Length73′ 8″
Width8′ 3″
Weight (Vibrating grid)41,854 lbs
Hopper Capacity17 yd³
Engine Options
ModelPowerEmissions
Deutz 201149 kW (66 HP)Tier 3
JCB 444 DieselMAX63 kW (84 HP)Tier 3
JCB 444 EcoMAX55 kW (74 HP)Tier 4F
JCB 430 DieselMAX55 kW (74 HP)Stage V
Deutz 2.9 L450 kW (67 HP)Stage V
CAT C2.855 kW (74 HP)Stage V
