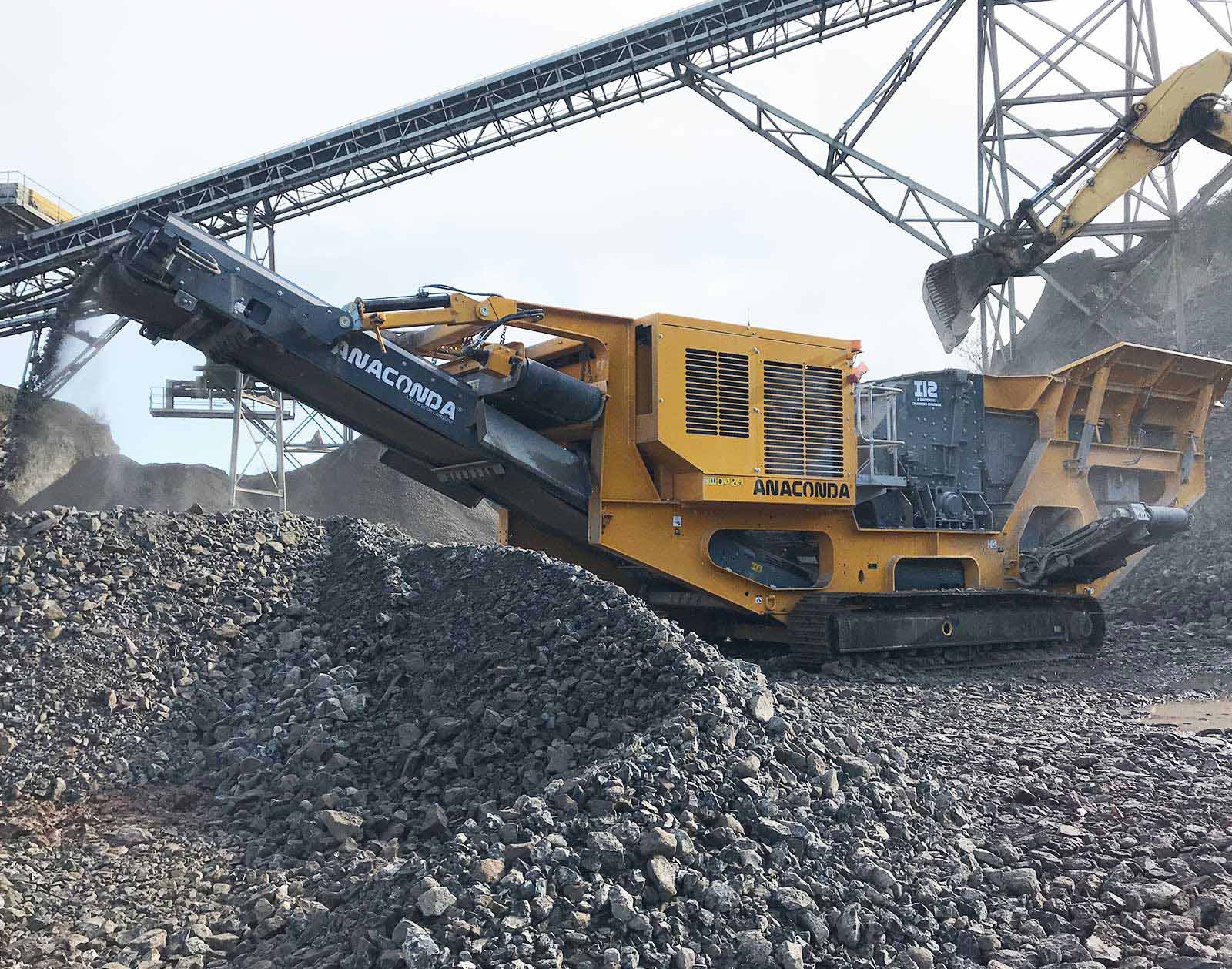

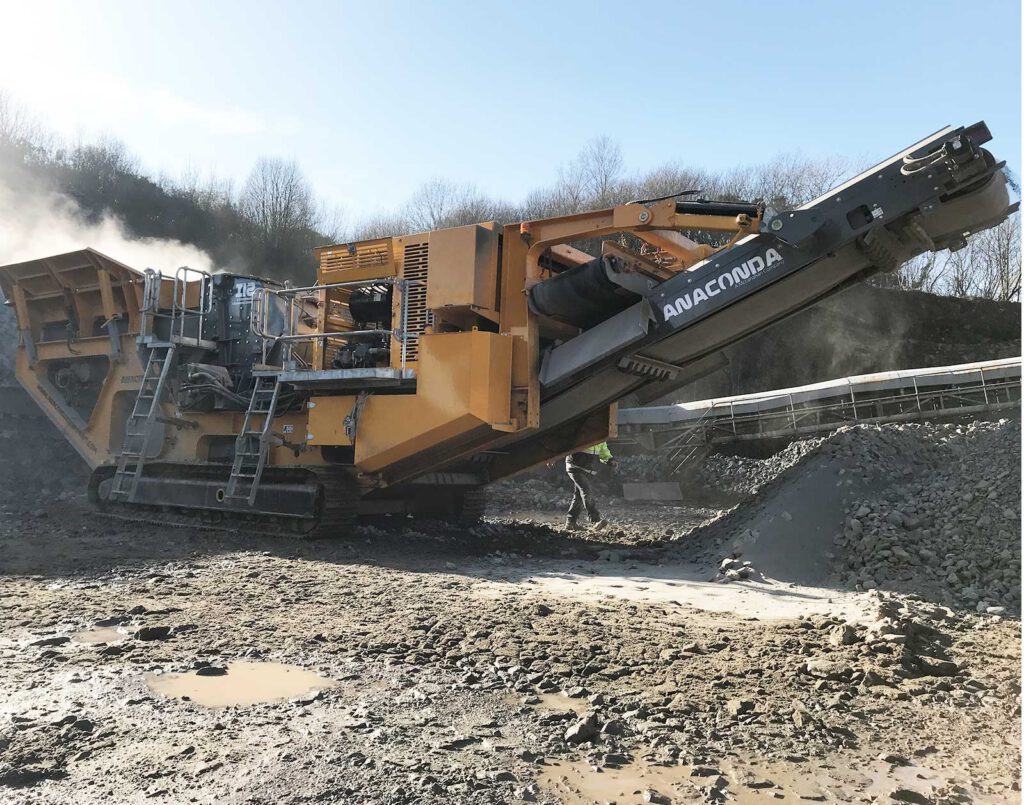

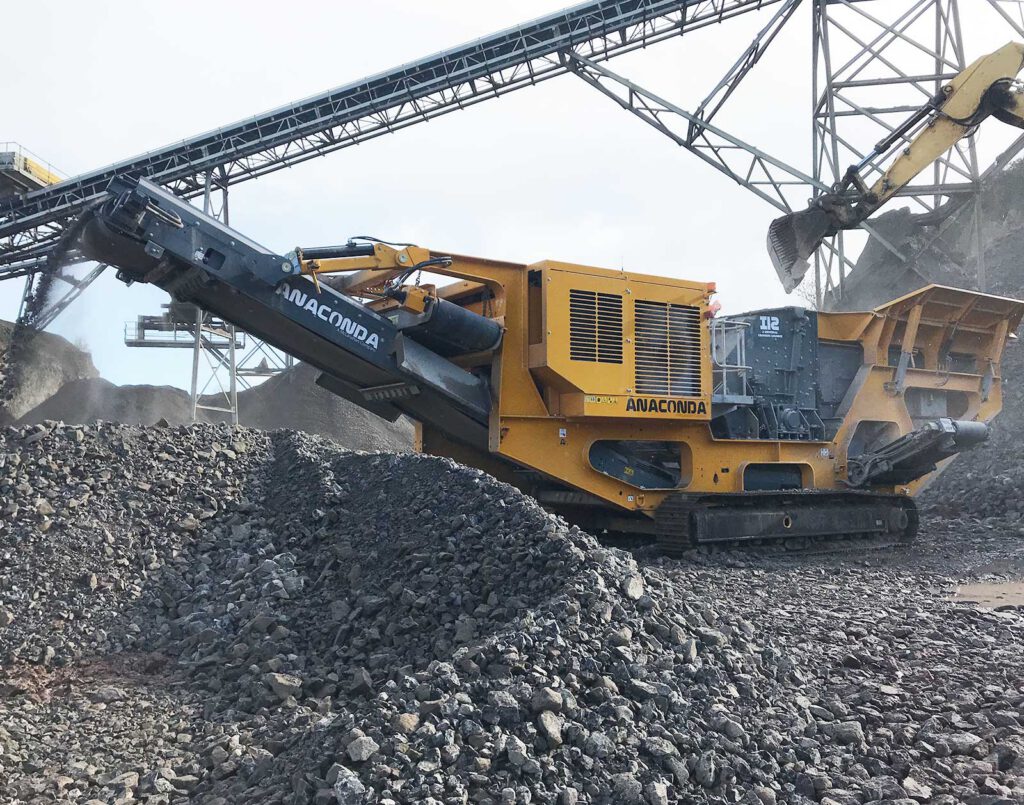

Anaconda I12 Tracked Impact Crusher
Description
Impact Crusher With A Purpose
The Anaconda I12R Impact Crusher is a closed-circuit crushing solution for operators seeking precise product specifications. The I12R features a 43” 4-bar rotor on a 45” Universal crushing chamber. The I12R can recirculate oversize material back into the Universal crushing chamber for further processing using a high-energy double-deck screenbox. Access doors on the side, back, and top of the crushing chamber provide safe, easy access, along with two independent gravity-hung impact curtains. The I12R is suitable for secondary or tertiary crushing of materials, including blue rock, virgin rock, basalt, and C&D waste. The Anaconda I12R Impact Crusher is also available in an open circuit solution – the I12 Impact Crusher.
Features & Benefits
Universal crushing chamber
Quick set up and breakdown time of 20 minutes
Hydraulically folding wing plates
Variable speed on discharge conveyors
Overband magnet with dual side discharge
Vibrating grizzly feeder
Radio remote control
Optional Features
Recirculation package · Recirculation screen decks – mesh or piano wire · Dust covers on main and discharge belts · Hopper extensions · Belt scale · Light mast and cabinet lights
Specifications

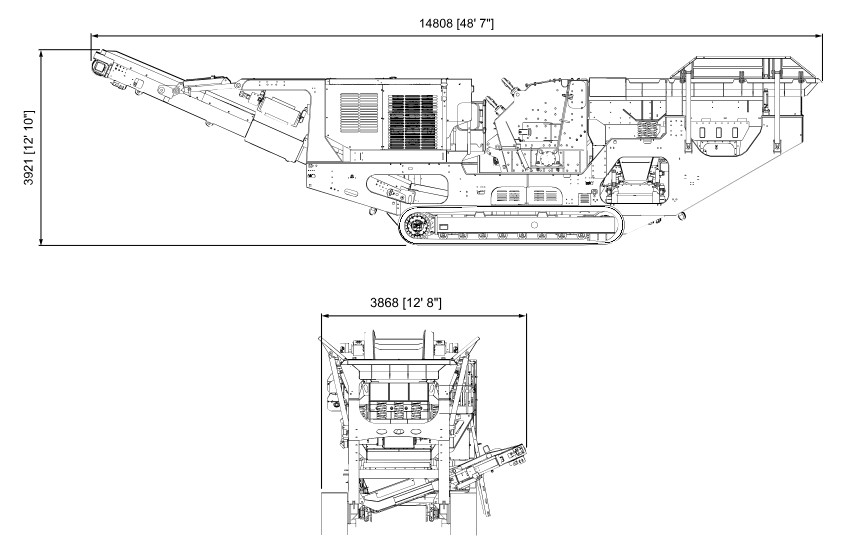

Anaconda I12 Tracked Impact Crusher Specifications
Height12′ 6.7″
Length47′
Width7′
Weight88, 185 lbs.
Hopper Capacity8.5 yd³
Universal Crushing Chamber43” x 45”
Impact Speed Range630 – 700 rpm
PowerCummins IPU L9 380 380 hp
Engine Options
ModelPowerEmissions
Cummins IPU L9 380283 kW (380 HP)Tier 3
CAT 9.3 LRC310 kW (416 HP)Tier 3
Cummins IPU L9 380283 kW (380 HP)Stage V
CAT 9.3310 kW (416 HP)Stage V
