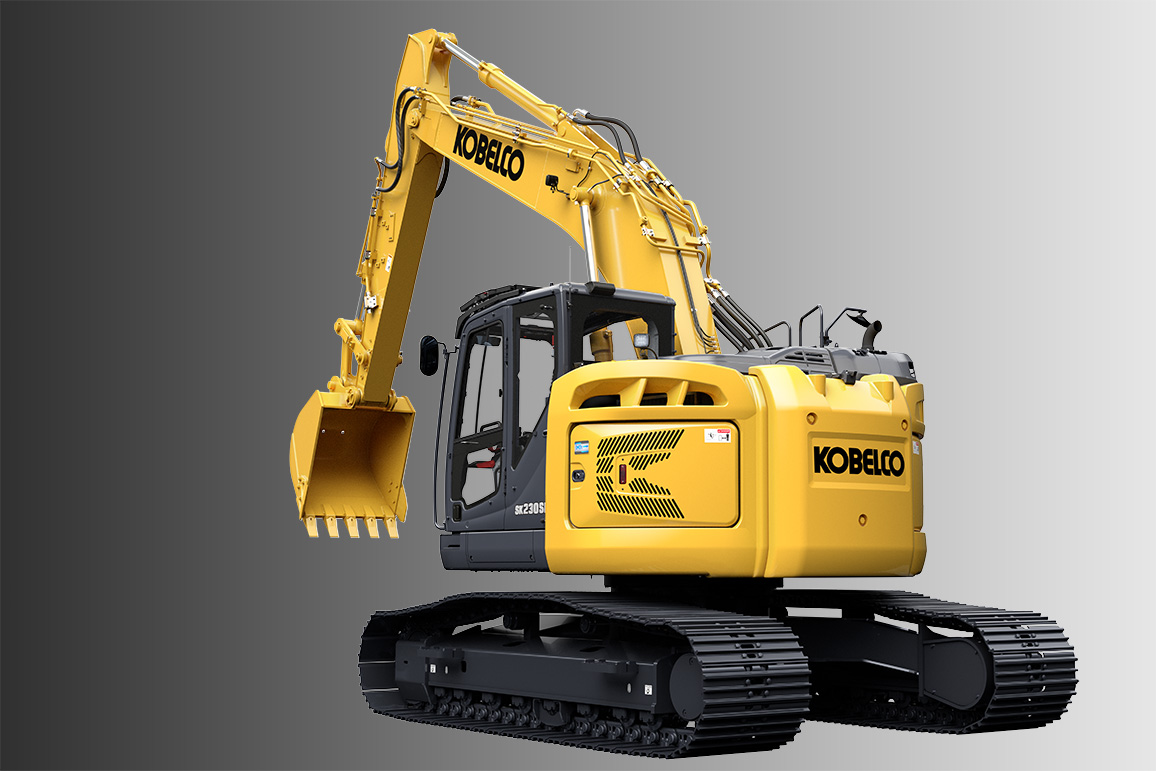

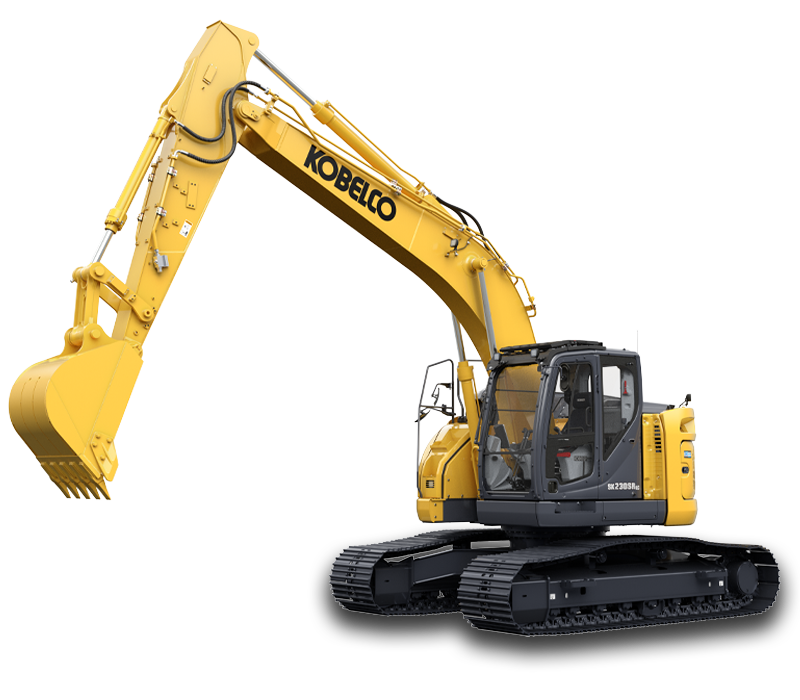

KOBELCO SK230SRLC-7 Excavator
Description
A Full-Fledged Excavator For Tight Spaces
The next-generation SK230SRLC-7 operates like a conventional machine, but it works in tight spaces that only a short-rear-swing excavator can. Like all KOBELCO SR Series models, this unit is built with our exclusive iNDr Cooling System, which reduces dust while delivering ultra-quiet operation, and multiple mode settings that allow you to dial in the perfect balance of performance and fuel economy. Plus, premier operator comforts mean it’s easier to stay focused on the task at hand.
Features & Benefits
Perfect for tight spaces on jobsites
Comfortable, safe, and ergonomic controls to stay focused
Higher efficiency, plus a Tier IV Final Compliant Engine
Large capacity – 17,270 lbs.
Specifications

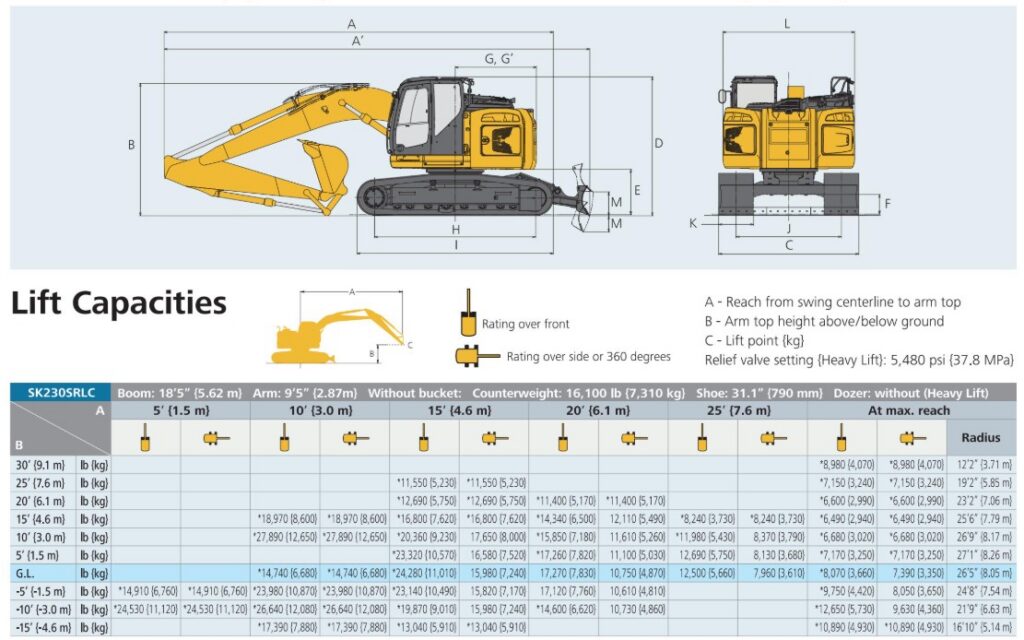

KOBELCO SK230SRLC-7 Excavator Specifications
Operating Weight57,100 lbs.
Overall Height10’ 4”
Overall Width10’ 5”
Max. Lifting Capacity17,270 lbs.
Tail Swing Radius6'
Travel Speed3.6 mph
Engine Power170 hp
Max Digging Reach31' 10"
Max DIgging Depth19'
Fuel Tanks87.2 gallons
Engine Options
ModelPowerEmissions
Yanmar 4TN107FTT170 hpStage IV F

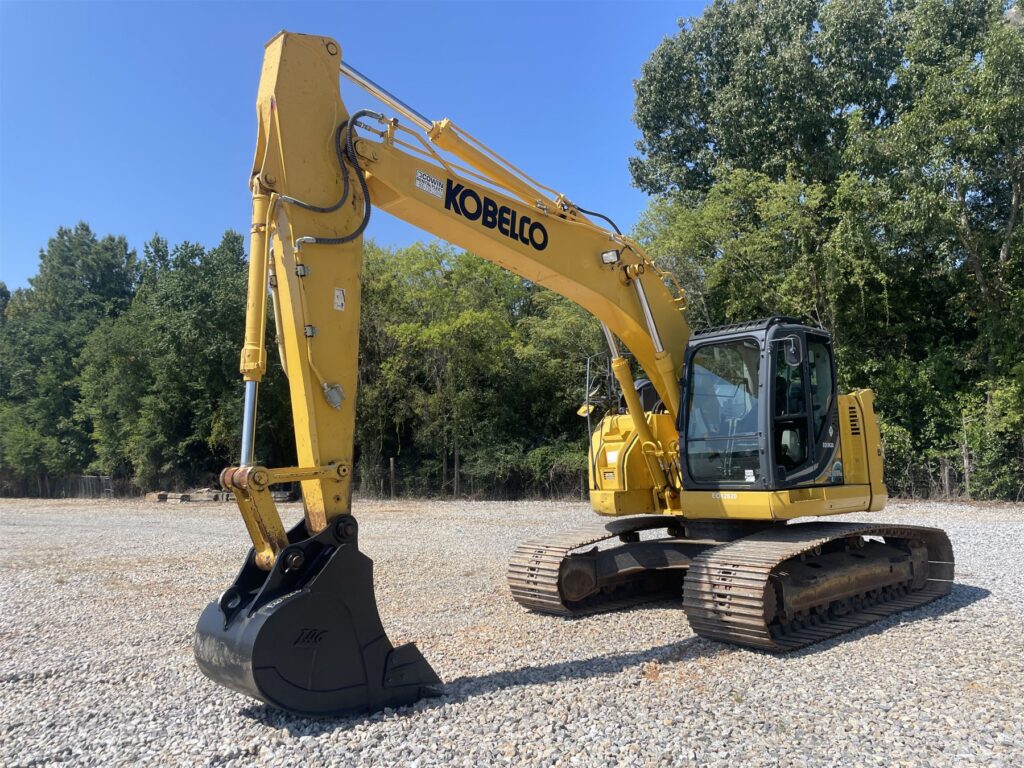

Gallery
See It in Detail
