KOBELCO · Specialty Excavator

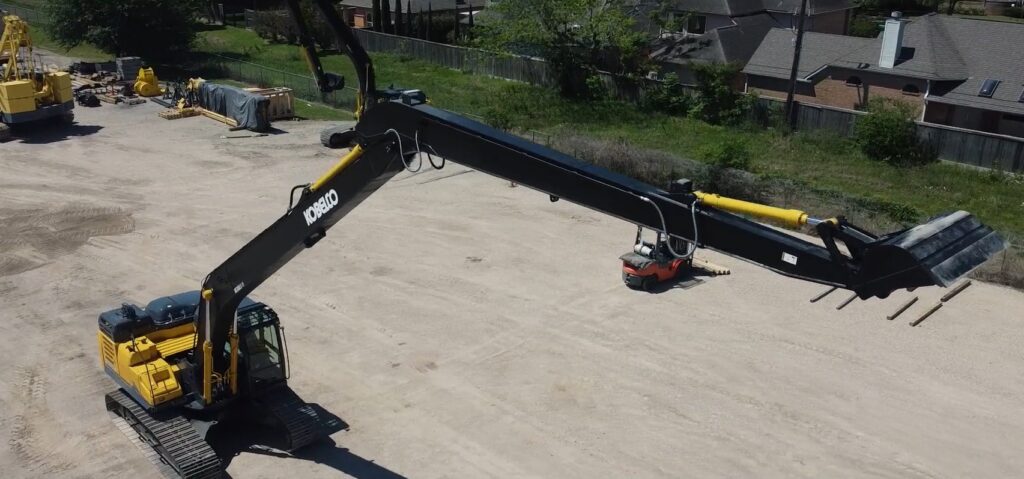

KOBELCO SK300LC-11 Long Reach Excavator
Description
Built Like No Other Specialty Excavator
Special jobs require specially equipped machines. The KOBELCO SK300LC-11 Long Reach excavator has heavy-duty hydraulic fittings and connectors to reliably lift huge loads from seemingly impossible distances. A maximum digging reach of 63’ 1” gives operators the space to tackle even the toughest dredging, ditch cleaning, or sloping jobs. A new Isuzu Tier IV Final-compliant engine delivers more efficient performance and a superior balance between engine output and torque than previous generations.
Features & Benefits
Long digging reach of more than 63 feet
Lifting capacity of 30,000 lbs.
Effective lifting at extended distances
Wide undercarriage, ensuring safe operation during lifts
Specifications
KOBELCO SK300LC-11 Long Reach Excavator Specifications
Operating Weight79,160 lbs.
Overall Height11’ 3”
Max. Lifting Capacity30,000 lbs.
Overall Width11’ 1”
Travel Speed3.2 mph
Power265 mph
Tail Swing20’ 2”
Max Digging Reach63' 10"
Max Digging Depth 48’ 5”
Fuel Tank132.9 gallons
Engine Options
ModelPowerEmissions
Isuzu 6HK1265 hpStage IV F
