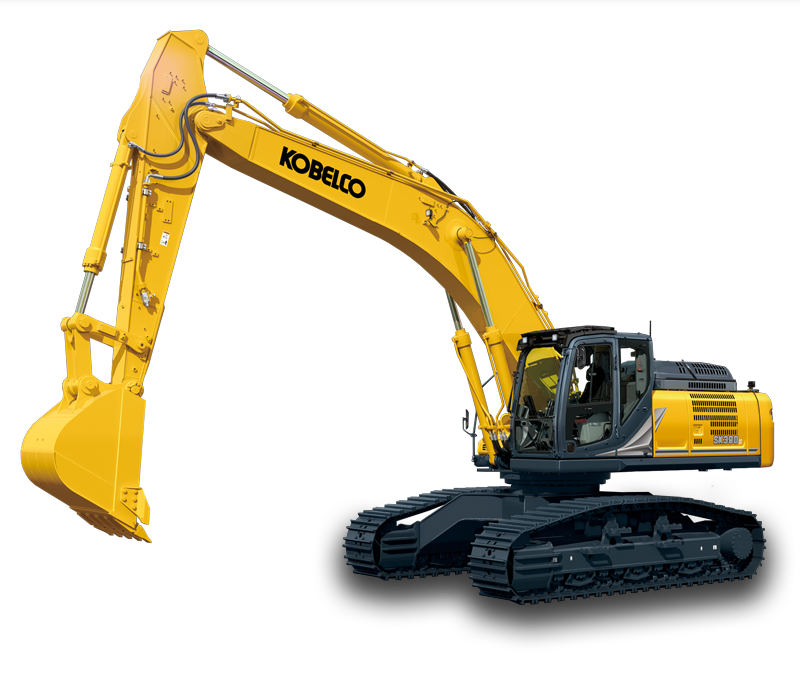

KOBELCO SK390LC-11 High & Wide Excavator

Stability For Loads And Built In Comfort For Operators

The unique KOBELCO SK390LC-11 H&W is designed with the undercarriage of a High & Wide excavator and the upper structure of a Conventional excavator. With a wider stance, increased clearance, and larger boom cylinders, the SK390LC-11 H&W delivers superior stability and maximum lift capacity to increase jobsite performance.

You’ll even find we’ve taken care of the little things like adding swing flashers and a color rear view camera. Plus, premier operator comforts mean it’s easier for you to stay focused on the task at hand.

Features & Benefits
Wider platform and increased clearance
Ultimate in stability and maximum lift capacity
Cabin comfort and safety with swing flashers
Oversized rear view mirrors
Heated air ride suspension seat

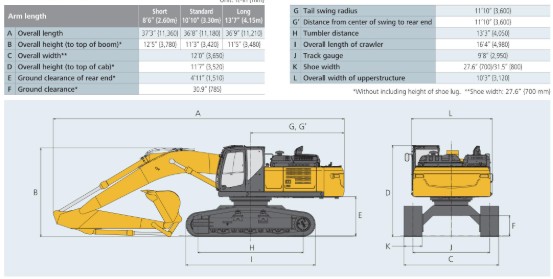

KOBELCO SK390LC-11 High & Wide Excavator Specifications

‬‬‍‌‌‌‌Operating Weight‬‍‬‍‌‌‌84,000 lbs.
Overall Height12' 5"
Max. Lifting Capacity32,480 lbs.
Overall Width12'
Travel Speed3.7 mph
Power264 hp
Tail Swing11' 10"
Max Digging Reach34' 10"
Max Digging Depth20' 10"
Fuel Tank132.9 gallons

Engine Options

ModelPowerEmissions
Isuz‌‌‌‌‌‬‬‍‌‌‌‌‌‍‬‍‌‍‌‌‍‌‌‌‌u 6HK‌‌‌‌‌‬‬‍‌‌‌‌‌‍‬‍‌‍‌‌‍‌‌‌‌1264 mphStage IV F
