KOBELCO · Conventional Excavator

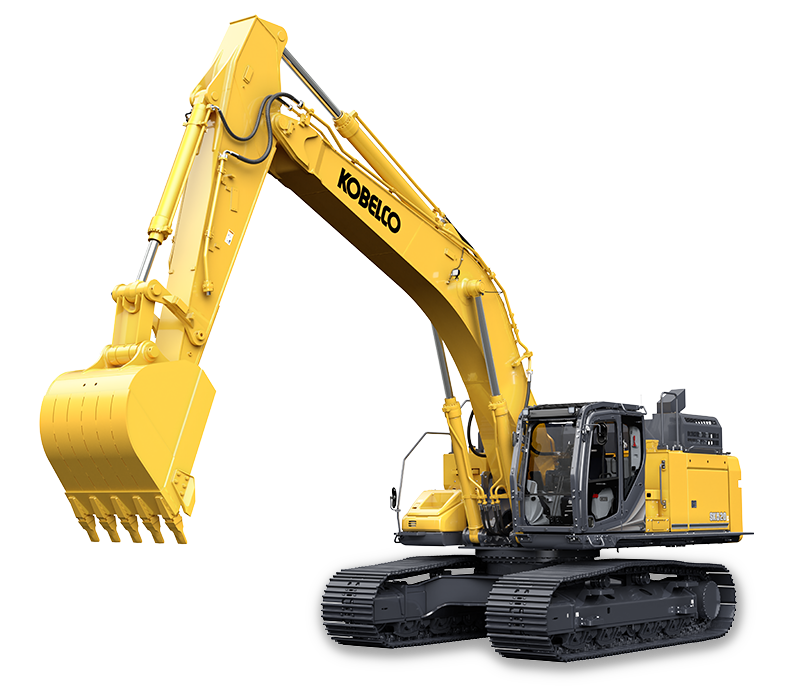

KOBELCO SK520LC-11 Excavator
Description
The Ultimate Partner On The Jobsite
The KOBELCO SK520LC-11 Conventional Excavator is a powerful machine designed for exceptional performance on even the most challenging jobsites. Equipped with a Tier IV Final Compliant engine, it delivers over 450 horsepower, ensuring efficient yet productive operation. Operators will appreciate premium comforts, including a heated air-ride suspension seat, multi-vent air conditioning, ergonomic lever angles, and adjustable-height joysticks.
Features & Benefits
Real-time monitoring and maintenance insights
Lifting capacity of 46,540 lbs.
Optional front cab guard
Heated Aire Ride Suspension Seat
Ergonomic Lever Angles
Specifications

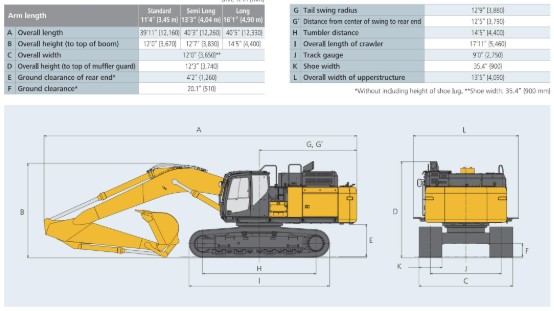

KOBELCO SK520LC-11 Excavator Specifications
Operating Weight121,000 lbs.
Overall Height14’ 5”
Overall Width13’ 5”
Travel Speed3.4 mph
Engine Isuzu 6WG1
Tail Swing12’ 9”
Max. Digging Depth25’ 6”
Max Digging Reach39' 7"
Fuel Tank190 gallons
Lifting Capacity46,540 lbs.
Engine Options
ModelPowerEmissions
Isuzu 6WG1463 mphTIer 4 F
Gallery
See It in Detail
