KOBELCO · SR Series Excavator

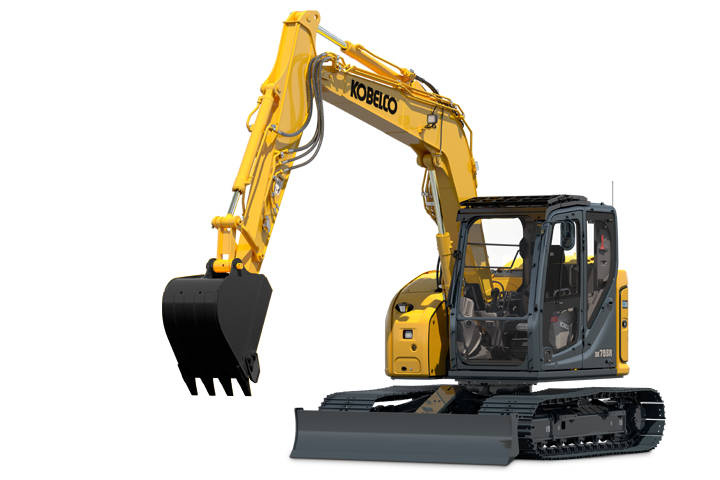

KOBELCO SK75SR-7 Offset Boom
Description
Benefits You Need For Tight Spaces
At KOBELCO, we invented short-rear-swing excavators, so it only makes sense that we’d stay ahead of the competition with the SK75SR-7 Offset Boom. This model has the power, fuel economy, and features you need to tackle jobs in tight spaces. KOBELCO’s exclusive iNDr Cooling System reduces dust while delivering ultra-quiet operation, and multiple mode settings allow you to dial in the perfect balance of performance and fuel economy. Plus, premier operator comforts mean it’s easier to stay focused on the task at hand.
Features & Benefits
iNDr reduces dust with quiet operation
Ability to set a perfect balance of performance and fuel economy

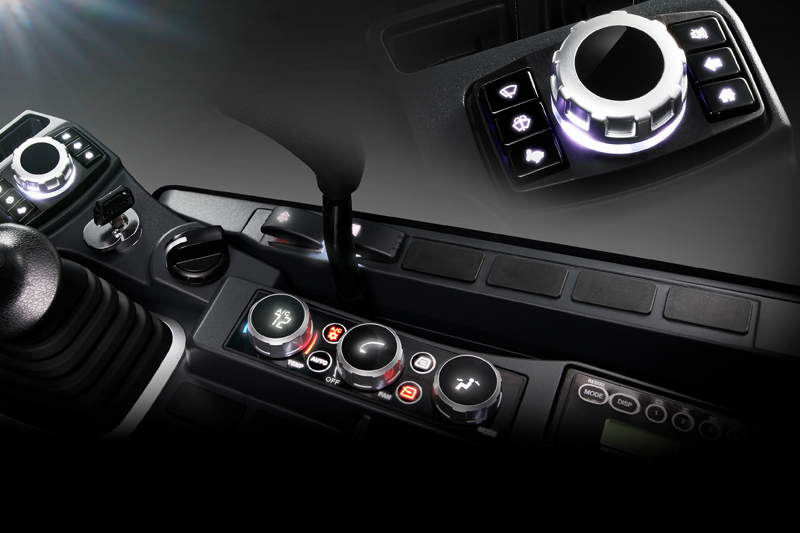

Premier operator comfort
Complies with Tier IV emissions regulations
Specifications

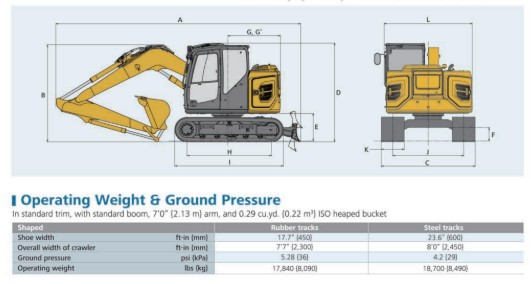

KOBELCO SK75SR-7 Offset Boom Specifications
Operating Weight19,555 lbs.
Overall Height8' 5"
Lifting Weight Capacity3,320 lbs.
Tail Swing Radius4'
Travel Speed3.1 / 1.7 mph
EngineYanmar 4 TNV 98 CT
Power72 hp
Max Digging Depth14’ 1”
Max Digging Reach22' 7"
Fuel Tank31.7 gallons
Engine Options
ModelPowerEmissions
Yanmar 4 TNV 98 CT72 hp (53.7 kW) / 70 hp (52.3 kW)Stage V
Gallery
See It in Detail
