RubbleCrusher · Modular Skid Plant

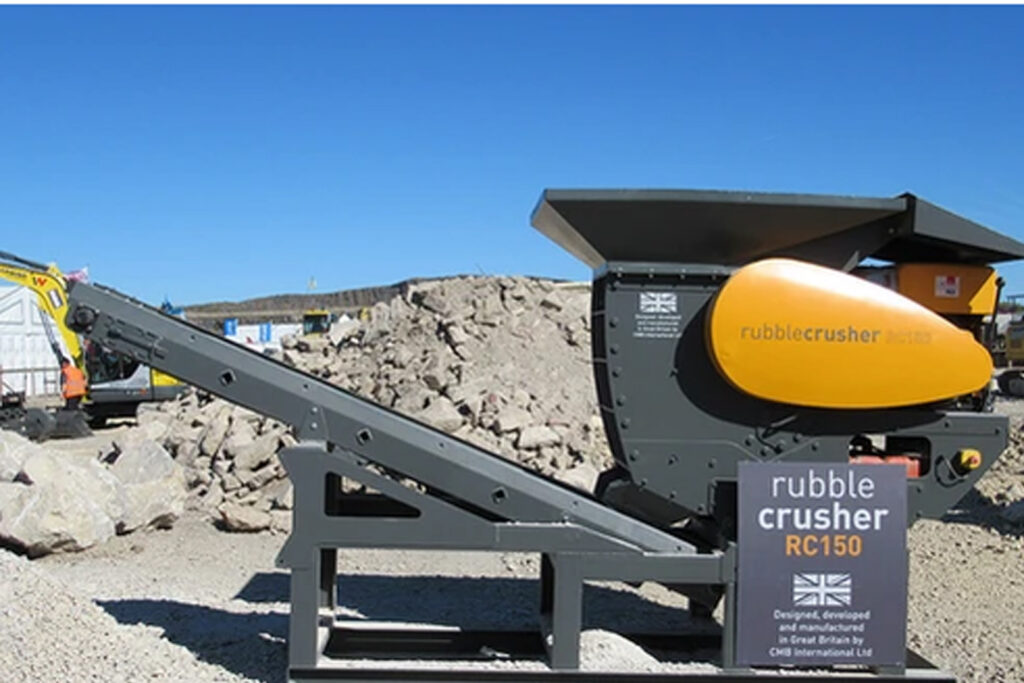

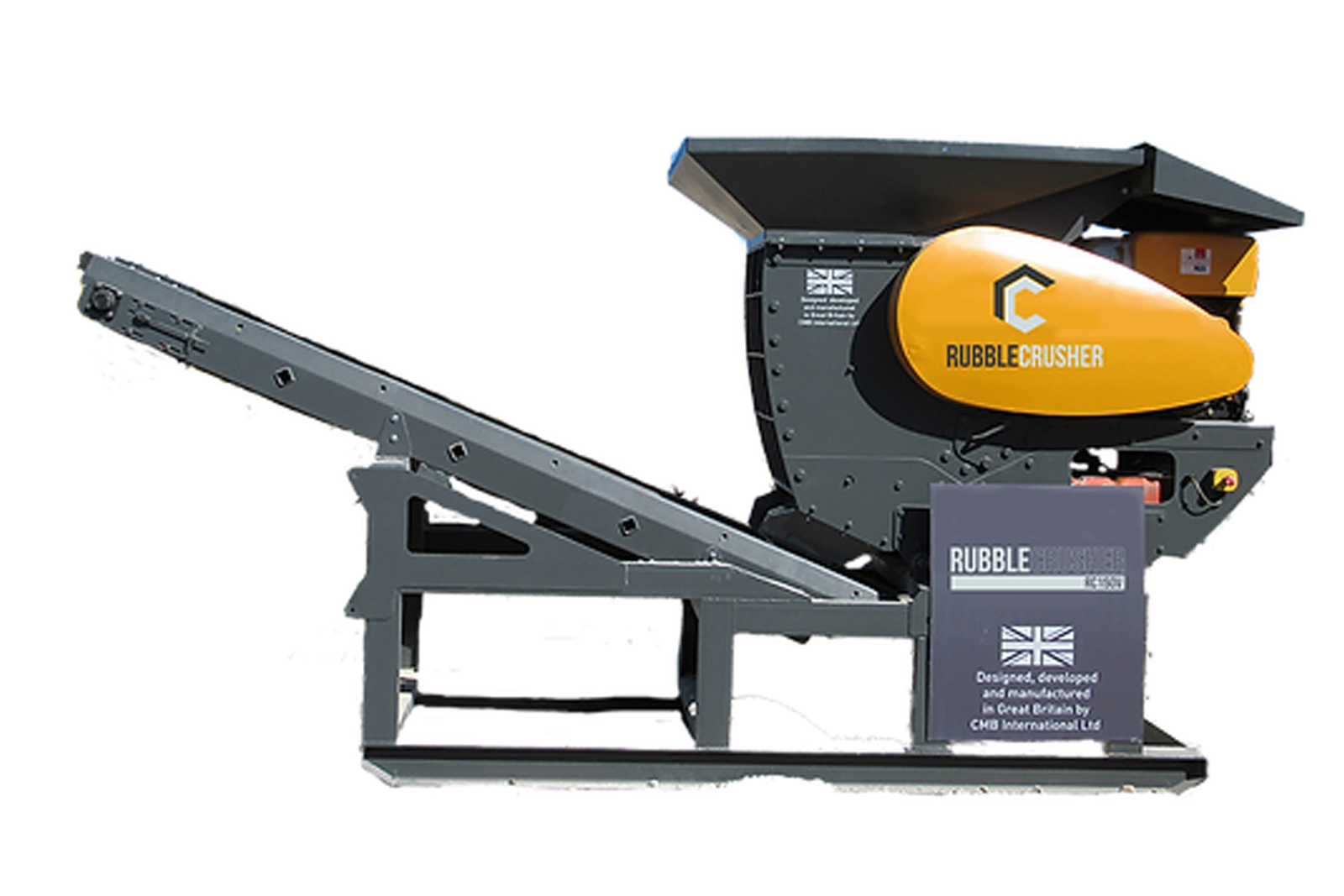

RubbleCrusher RC150 Skid Crusher
RC-150V Skid-Mounted Jaw Crusher features a proven 26″x14″ (650 mm x 350 mm) jaw crusher and can be supplied with various options to suit your requirements.
Given the compact size and flexibility of the crusher, it is ideal for skip yards and waste transfer stations, allowing for “waste” construction and demolition material to be crushed on site and then be sold for various uses.
The skid-mounted crusher can be powered either by diesel/hydraulic or fully electric, depending on the application and requirement.
Features & Benefits
Option of a vibrating feeder with grizzly
Optional extended conveyor for unique processing requirements
Double-deck screening for the sizing of crushed material
Reject grid to capture obscure materials before they enter the stockpile
Removal of metallic items with optional magnet
Diesel, hydraulic or fully electric options available
Specifications
RubbleCrusher RC150 Skid Crusher Specifications
Operating Weight8,000 lbs
Maximum Feed SIze20” x 11”
Feed Hopper64" x 50" + Spill Guard
Jaw Module26″ x 14″
Setting Range5/8” – 4”
AdustmentHydraulic Wedge System
TransmissionHydraulic Driven Cusher
Conveyor – Discharge Height51" (Adjustable)
onveyor – Length x Width90" x 20"
Conveyor – BeltChevron
Conveyor – DriveHydraulic
Fuel Tank10.5 gallons (Electric)
Engine Options
ModelPowerEmissions
Yanmar or Electric Battery38 hp
