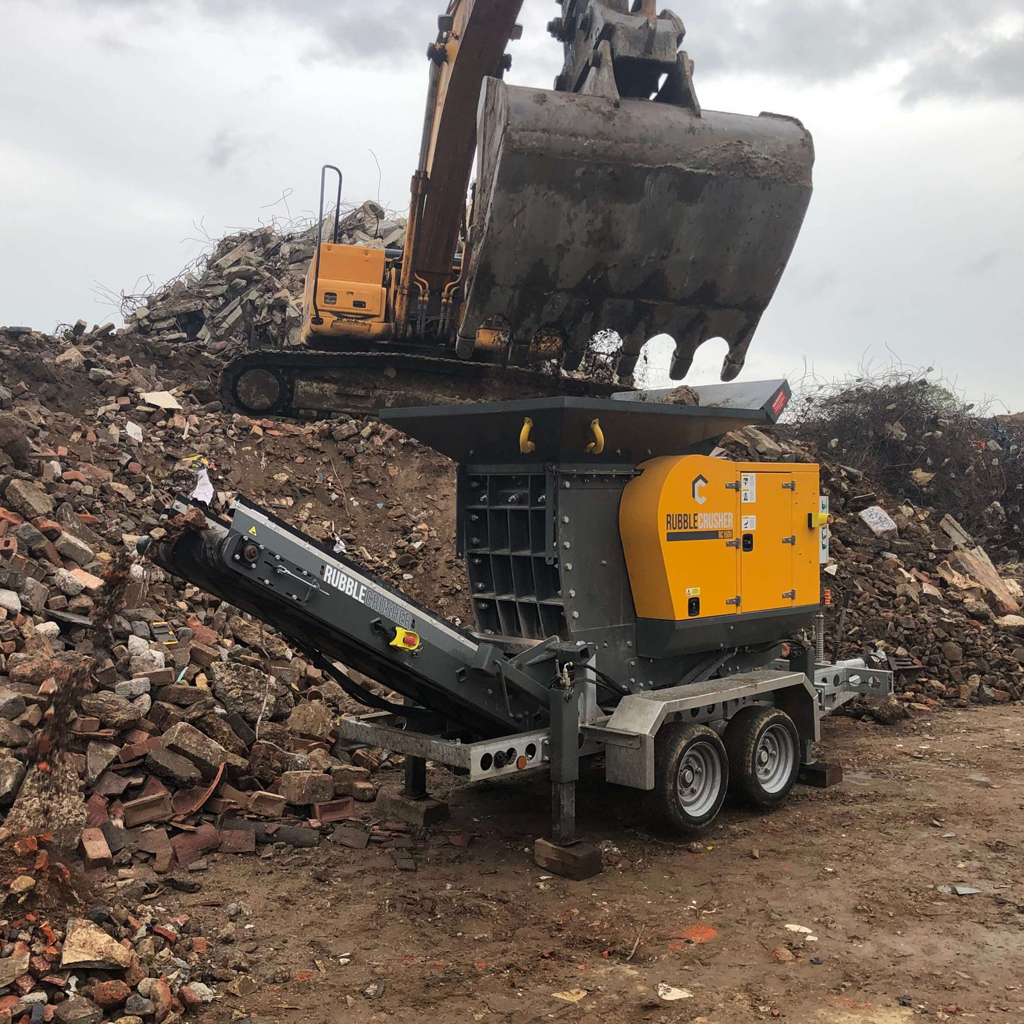

RubbleCrusher RC150V Trailer Crusher
Description
Portable Crushing At Its Best
The RubbleCrusher RC-150V is a compact, robust, trailer-mounted mobile jaw crusher. Weighing under 7,800 lbs (3,500 kg), the crusher can be towed to your required designation using a 4×4 vehicle. This enables the production of crushed materials immediately on site and allows for the crushed materials to be reused straightaway.
The RubbleCrusher RC-150V Trailer-Mounted Jaw Crusher is the perfect machine for all small to moderate crushing projects where construction and demolition “waste” materials can be recycled onsite, providing a great solution for builders, landscape gardening, recycling demolition, infrastructure, relief aid and medium sized aggregate crushing applications.
Features & Benefits
Hydraulically driven crusher with reversing function
Mechanical crusher output adjustment - shim system
Hydraulic jack support legs
Hydraulic product conveyor
Fixed feed hopper with replaceable Hardox liners
26″ x 14″ (650mm x 350mm) jaw crusher module
Specifications
RubbleCrusher RC150V Trailer Crusher Specifications
Operating Weight7,700 lbs.
Maximum Feed Size64" x 50" + spill guard
Feed Hopper20" x 12"
Jaw Module26" x 14"
AdjustmentHydraulic Wedge System
TransmissionCrusher hydraulic driven
Throughput5 – 50 tonnes per hour
Conveyor – Length x Width90" x 20"
Conveyor – Discharge Height51" (Adjustable)
Conveyor – BeltChevron
Conveyor – DriveHydraulic
Fuel Capacity10.5 US Gallon
Engine Options
ModelPowerEmissions
Yanmar38 hpUS Tier 4 Powerpack
