ASV · Skid Steer

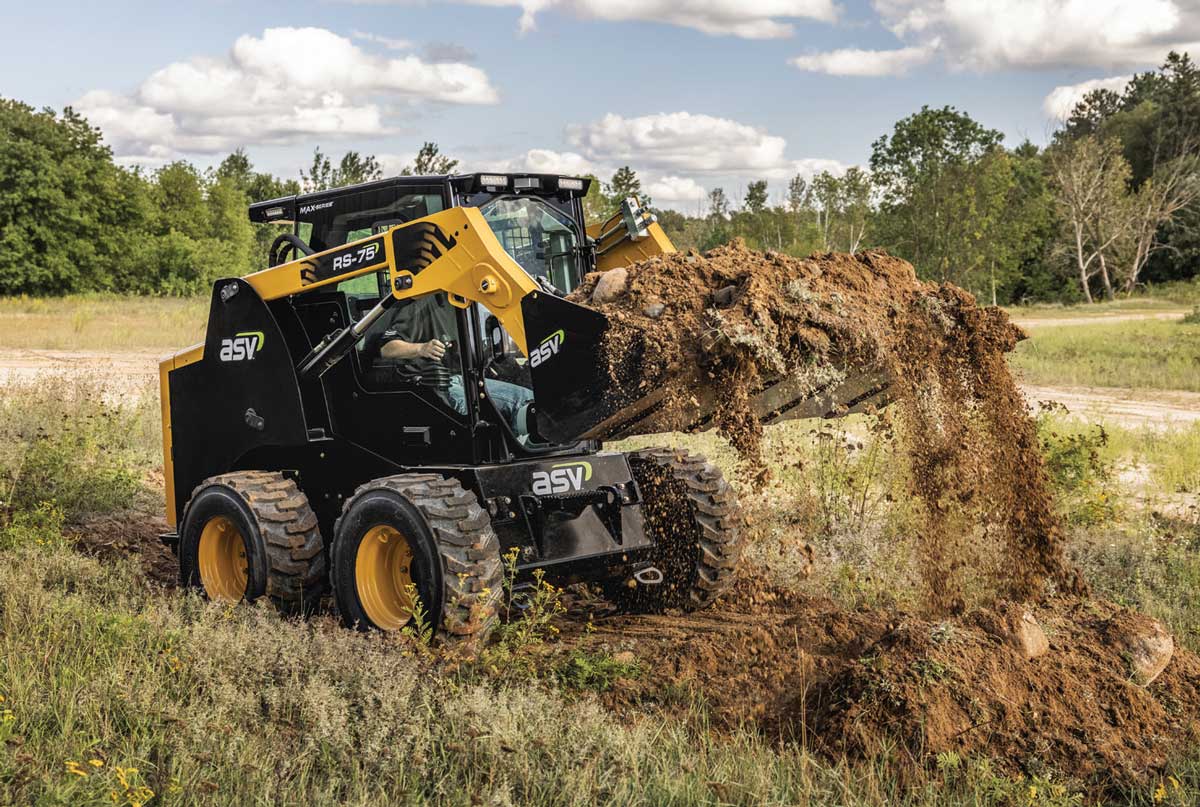

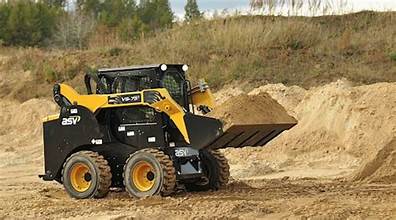

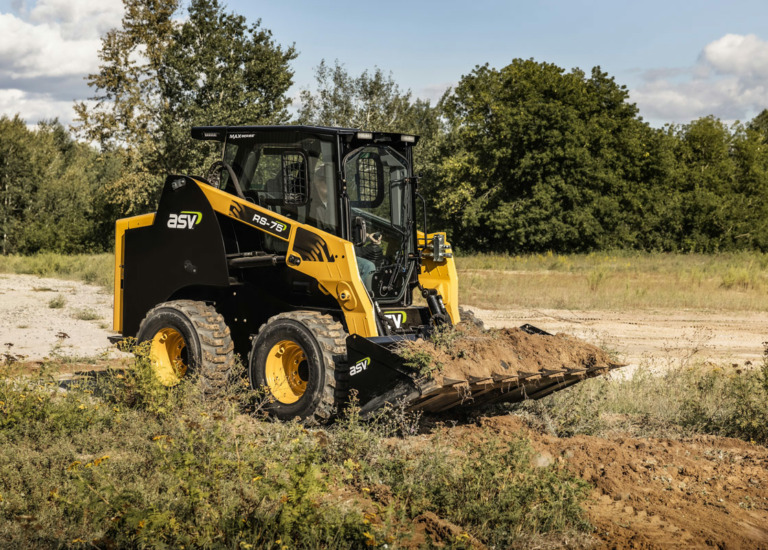

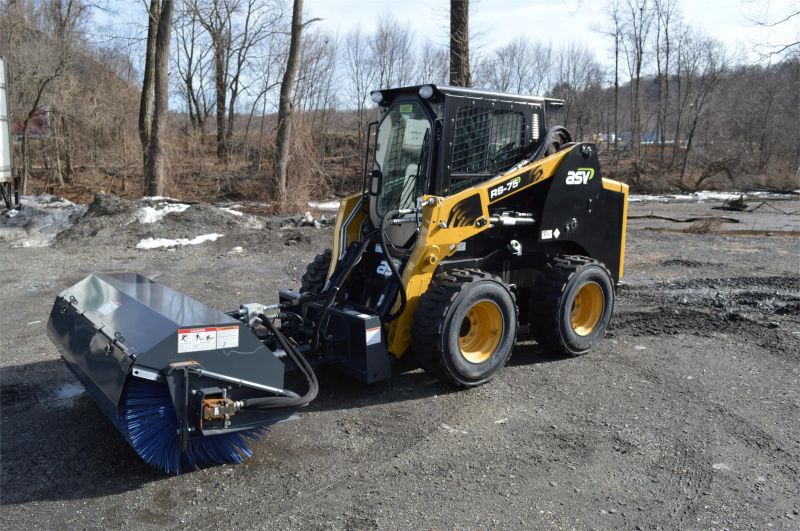

ASV RS-75 Skidsteer Loader
Description
Built For Comfort. Engineered For Speed
With the precision of pilot controls, fast ground speed, optimum loader cycle time, and next-generation MAX-Series features, the radial lift RS-75 not only gets a lot of work done—it gets it done in a hurry.
The ASV RS-75 skid steer comes with a powerful diesel engine and powertrain, making it well-suited for a range of industries and applications. Built for speed and with an industry-leading ground clearance, the RS-75 can load more material faster without slowing down, so operators can get more done in any condition.
Features & Benefits
Large lines, hydraulic coolers, and direct-drive pumps provide efficient hydraulic and cooling systems, allowing the machine to work in more conditions at maximum power
Eliminates the need for regeneration, exhaust sensors, and diesel exhaust fluid
Operator features for longer periods of time: more all-around space, improved ergonomics
Optional high-flow auxiliary hydraulics
Specifications
ASV RS-75 Skidsteer Loader Specifications
Operating Weight7,595 lbs.
Overall Height84 in.
Rated Operating Capacity2,600 lbs.
Power74.2 hp
Wheel Size12 x 16.5 in.
Max. Travel Speed (2-Speed)8.1 mph
Ground Clearance (Unloaded)10.5 in.
Ground Pressure4.5 psi
Fuel Tank28 gallons
Engine Options
ModelPowerEmissions
Deutz TD2.9L474.2 hp (55 kW)Tier 4 Final
Gallery
See It in Detail
