ASV · Compact Track Loader

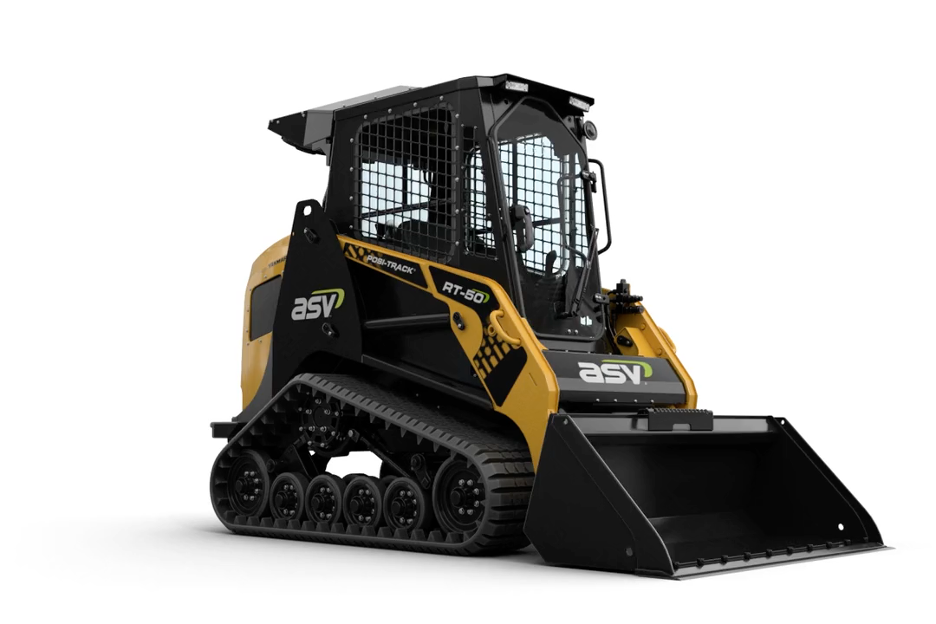

ASV RT-50 Compact Track Loader

Works Hard. Tows Easy.

The RT-50 boasts a greater performance-to-weight ratio than any machine in its class, so you can get more power in tight areas than ever before. The RT-50 touts a 1,400-pound rated operating capacity while weighing just 5,180 pounds. Not to mention the industry’s lowest ground pressure and the ability to be towed behind a ½-ton pick-up truck. This small machine packs an impressive punch for contractors, homeowners, or rental customers. And attachments are a breeze thanks to its efficient cooling system and robust hydraulic system with 3,000 psi of auxiliary pressure and 13.3 gpm flow.

Soft ground conditions are no problem for the RT-50 thanks to its 15-inch-wide tracks and even weight distribution on the patented Posi-Track undercarriage. And the loader’s 109.6-inch pin height means operators can load landscape trucks and even small dump trucks.

Features & Benefits
Easily accessible maintenance points, zero fittings for convenient greasing, and spin-on, frame-mounted filters with single-wrench service
Performs better in wet weather due to wider track and Posi-Track technology
Adjustable joystick & armrest positions for operator comfort
360-degree visibility for maximum safety
Easy access to components to eliminate high labor repair costs

ASV RT-50 Compact Track Loader Specifications

Operating Weight5,180 lbs.
Overall Height80 in.
Overall Width58.5 in.
Rated Operating Capacity (35%)1,400 lbs.
Ground Pressure3.0 psi
Engine Power53.8 hp
Max. Travel Speed7.1 mph
Track Width15 in.
Ground Clearance14.4 in.
Fuel Tank13 gallons

Engine Options

ModelPowerEmissions
YANMAR 3TN86CHT53.8 hp (40.1 kW)Tier 4 Final
