Anaconda · Wheeled Conveyor

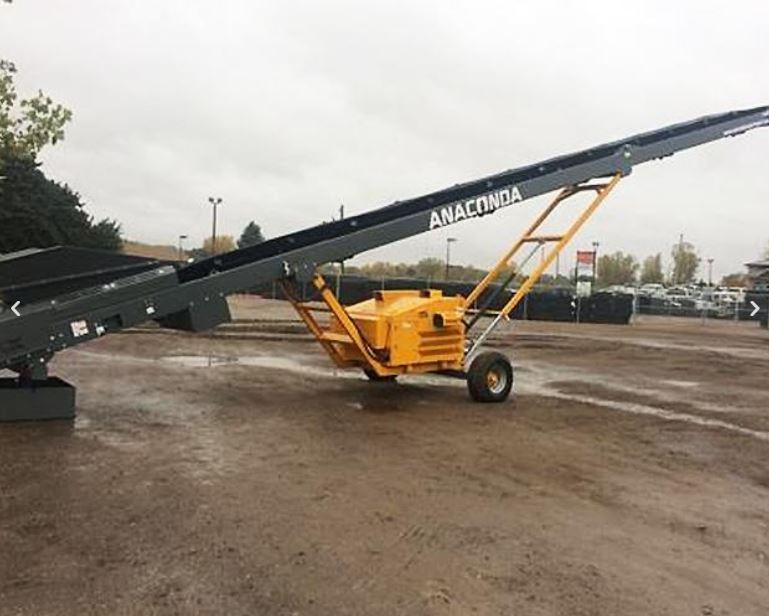

Anaconda ST50 Wheeled Conveyor
Description
Made To Boost Productivity by Up to 15–20%
The Anaconda ST50 Wheeled Conveyor has a 50′ conveyor belt and can handle up to 221 US tph. The ST50 can accept a max feed size of 4” and comes with fixed or manual radial-powered wheels, giving operators the ability to make flexible stockpiles. Limit on-site movements, double handling, and associated equipment costs with a transportable conveying solution. Pairing the ST50 with other Anaconda processing equipment can increase productivity by 15-20%.
Features & Benefits
Fixed speed conveyor belt
Manual folding head section
Manual radial wheels
3-ply 800 mm (32”) wide plain belt
Optional Features
Chevron belt · Electric motor/gearbox drive · Dust canopy · Impact section · Belt upgrades available
Specifications

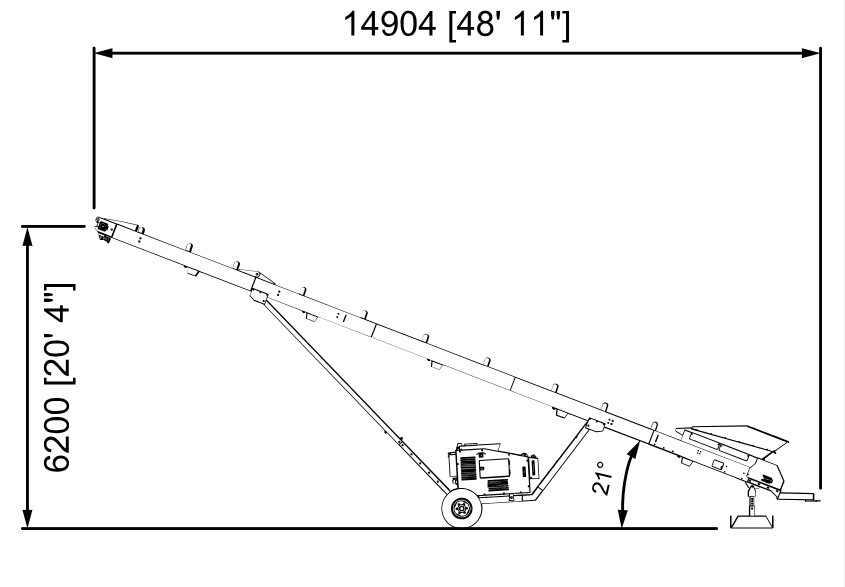

Anaconda ST50 Wheeled Conveyor Specifications
Height18′ 4″ – 20′ 7″
Length47′ 6″
Width8′ 5″
Weight6,200 lbs.
Engine Options
ModelPowerEmissions
CAT 2.236.3 kW (49 HP)Tier 3a
Deutz 2.9 L450 kW (67 HP)Stage V
Gallery
See It in Detail
