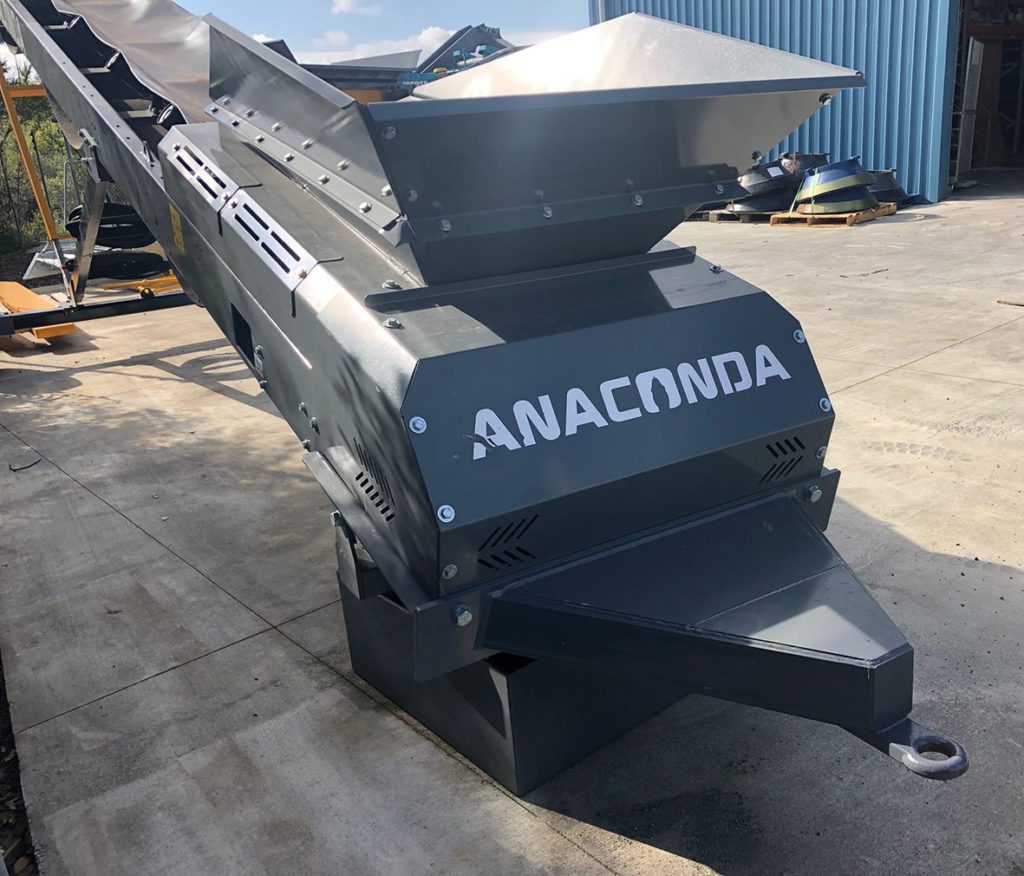

Anaconda ST60 Wheeled Conveyor
Description
Designed To Boost Productivity By Up To 15–20%
Anaconda’s ST60 Wheeled Conveyor has a 60’ conveyor belt and can handle up to 200 tph (221 US tph). The max feed size for the ST60 is 4” and can process a wide range of materials, including crushed stone, washed sand, or sand with gravel. The ST60 can be fitted with hydraulic radial wheels, allowing operators to create flexible stockpiling solutions.
Features & Benefits
Built to Run Hard
Fixed speed conveyor belt
Manually folding head section
Manual radial wheels
3-ply 800 mm (32”) wide plain belt
Optional Features
Chevron belt · Hydraulically powered radial wheels · Electric motor/gearbox drive · Dust canopy · Belt upgrades available
Specifications

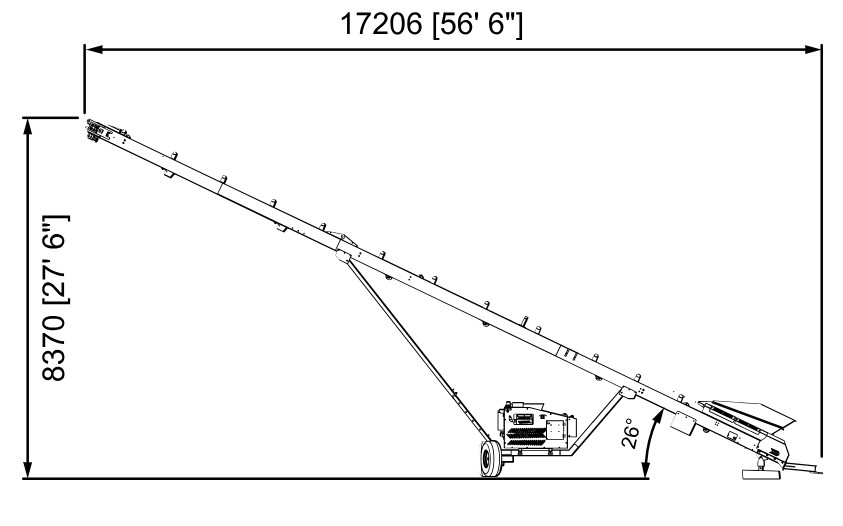

Anaconda ST60 Wheeled Conveyor Specifications
Height22′ 3″ – 24′ 6″ (6.8 m – 7.5 m)
Length56′ 4″ (17.2 m)
Width10′ 5″ (3.2 m)
Weight7,000 lbs (3,200 kg)
Engine Options
ModelPowerEmissions
CAT 2.236.3 kW (49 HP)Tier 3a
Deutz 2.9 L450 kW (67 HP)Stage V
