Anaconda · Wheeled Conveyor

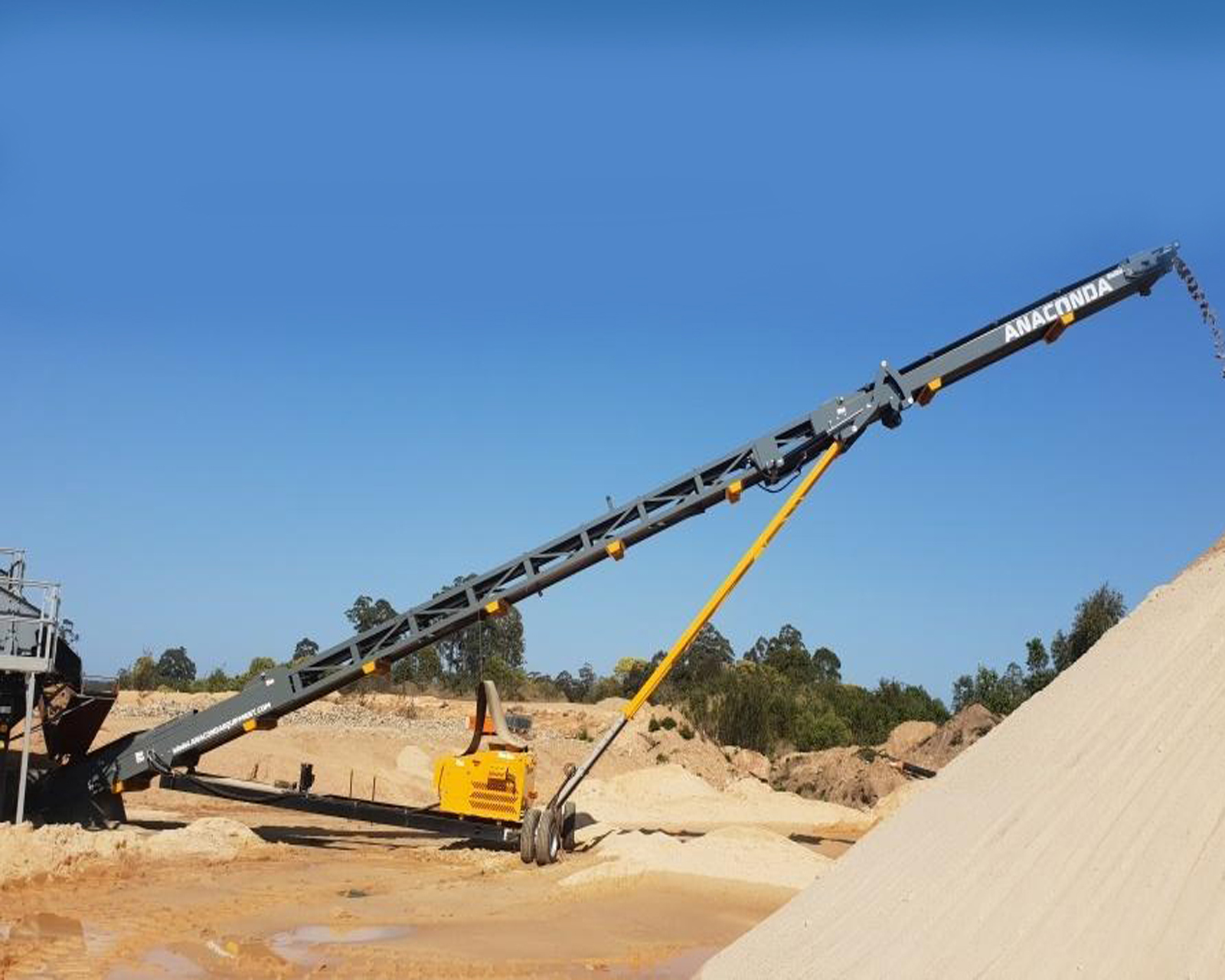

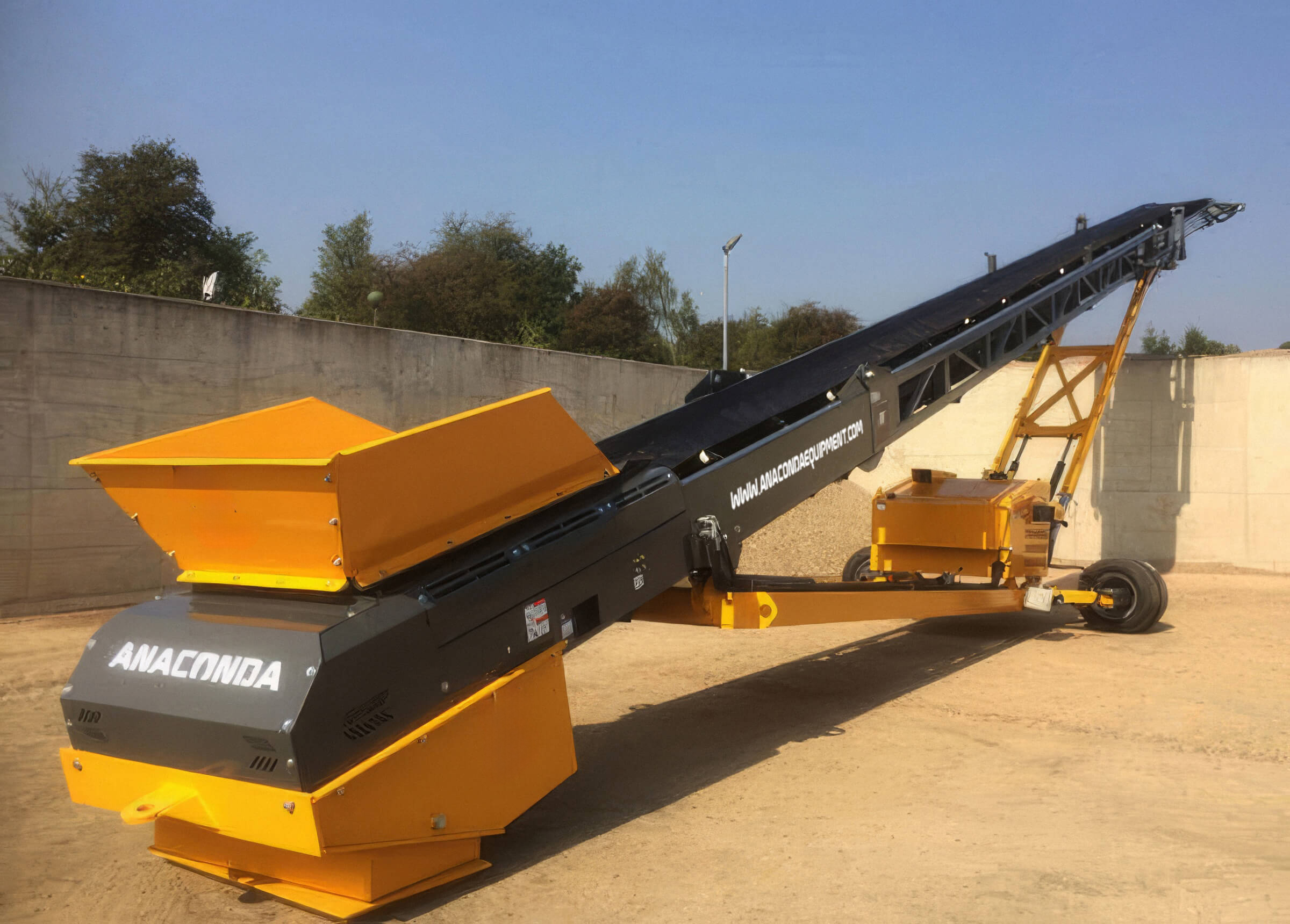

Anaconda ST80 Wheeled Conveyor
Description
Designed To Boost Productivity By Up To 15–20%
The Anaconda ST80 Wheeled Conveyor is the largest in the wheeled conveying range, measuring 80’ in length, and can handle up to 440 US tph. The ST80 can be used in a wide variety of applications from washed sand up to aggregates measuring 4”.
Features & Benefits
Fixed speed conveyor
Manual folding head section
Manual radial wheels
3-ply 36” wide plain belt
Optional Features
Chevron belt · Hydraulically powered radial wheels · Hydraulic coupling · Electric coupling · Belt upgrades available
Specifications

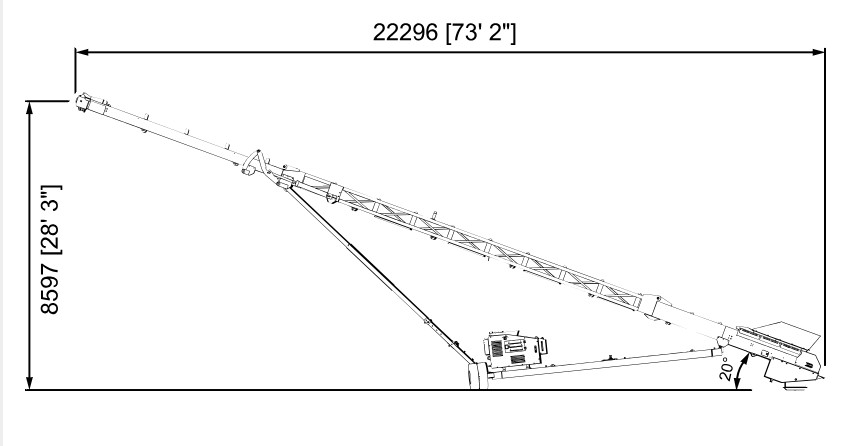

Anaconda ST80 Wheeled Conveyor Specifications
Height25′ – 34′
Length77′ 3″
Width11′ 8″
Weight19,180 lbs.
Engine Options
ModelPowerEmissions
CAT 2.236.3 kW (49 HP)Tier 3a
Deutz 2.9 L450 kW (67 HP)Stage V
CAT C1.736.3 kW (48 HP)Stage V
Gallery
See It in Detail
