Anaconda TR100 Tracked Conveyor
Description
Minimize Operating Costs While Maximizing Stockpiling Capability
The Anaconda TR100 Tracked Conveyor is the largest in the TR range with a 101′ 8″ conveyor body, capable of creating stockpiles up to 45′. The TR100 can be set up and running in as little as 20 minutes, helping operators to get up and running as quickly as possible. As a heavy-duty conveyor, the TR100 can be used in a wide variety of applications, including topsoil, wood chips, and aggregate. Featuring hydraulically folding head and tail sections, the TR100 only requires the feed boot to be dismantled prior to transportation.
Features & Benefits
Hydraulic folding head and tail section
Hydraulic raise and lower front and rear legs
Impact bed under feed boot
3-ply 1,050 42” wide plain belt
Optional Features
Side skirting to enclose the belt · Chevron belt · Belt weigh scale · Overband magnet
Specifications

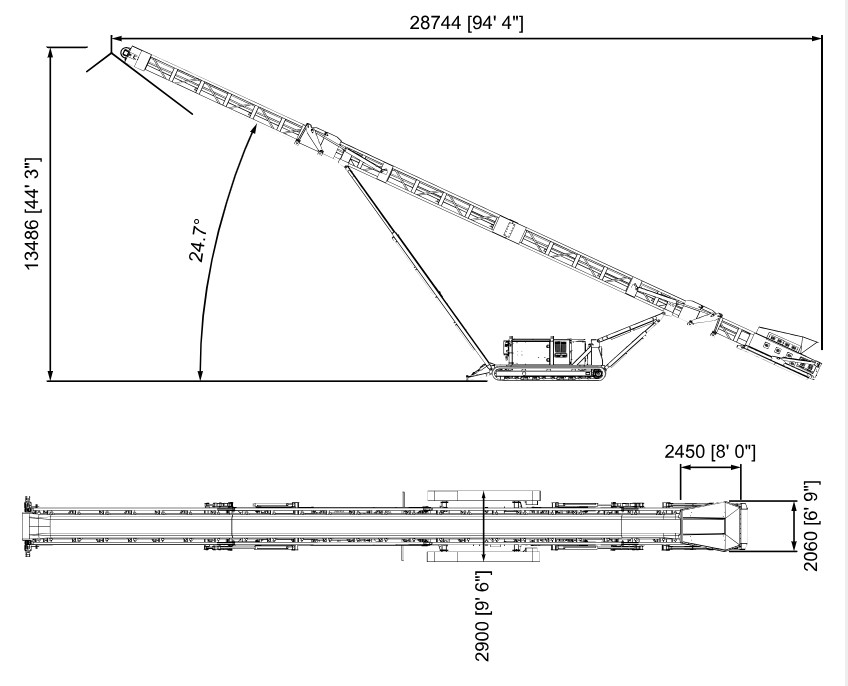

Anaconda TR100 Tracked Conveyor Specifications
Height44′ 3″
Length101′ 8″
Width9′ 6″
Weight42,328 lbs.
Engine Options
ModelPowerEmissions
JCB 44463 kW (85 HP)Tier 3
CAT 4.475 kW (101 HP)Tier 3
JCB 44455 kW (74 HP)Tier 4 Final
JCB85 kW (114 HP)Tier 4 Final
Deutz50 kW (67 HP)Stage V
CAT C2.855 kW (74 HP)Stage V
CAT C3.6100 kW (134 HP)Stage V
Gallery
See It in Detail
