Anaconda · Tracked Conveyor
Anaconda TR60 Tracked Conveyor
Description
Consistent Material Flow for a Variety of Applications.
The Anaconda TR60 Tracked Conveyor has a 60′ conveyor body and can accept feed sizes of up to 4”. The TR60 is a compact solution for operators looking to transport equipment easily between sites. The TR60 contains a hydraulically folding head section and hydraulically raised front and rear legs for improved positioning on difficult terrain.
Features & Benefits
Hydraulic folding head section
Hydraulic raise and lower for front and rear legs
Impact bed under feed boot
3-ply 900 mm (36”) wide plain belt
Optional Features
Side skirting to enclose the belt · Chevron belt · Belt weight scale · Overband magnet · Dust canopy · Belt upgrades available
Specifications

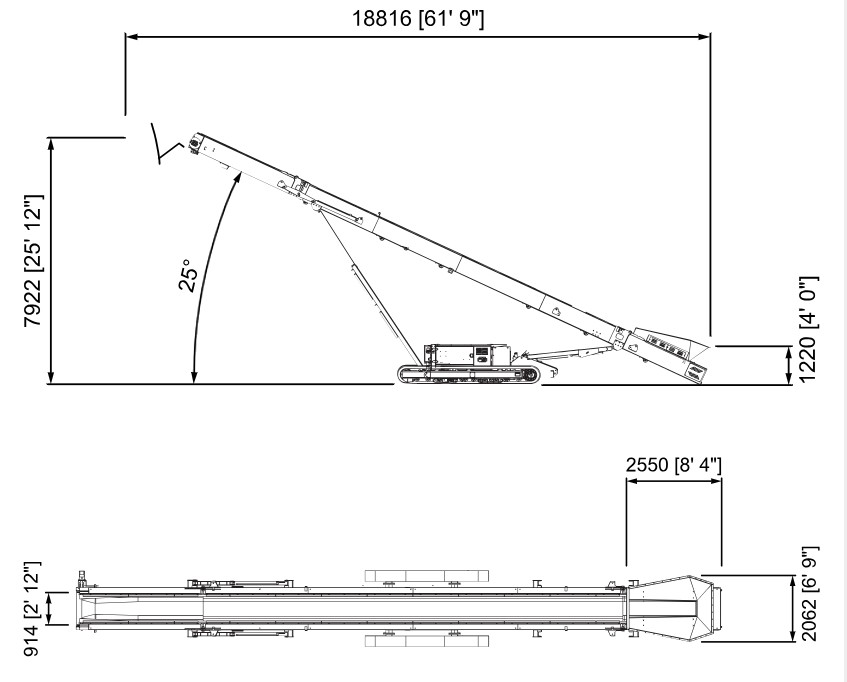

Anaconda TR60 Tracked Conveyor Specifications
Height27′ 4″
Length54’6” – 60′
Width7′ 5″
Weight24,250 lbs.
Engine Options
ModelPowerEmissions
CAT 2.2 NA36.3 kW (49 HP)Tier 3
JCB 444 DieselMAX63 kW (85 HP)Tier 3
JCB 444 EcoMAX55 kW (74 HP)Tier 4 Final
CAT C2.855 kW (74 HP)Stage V
Deutz 2.9 L450 kW (67 HP)Stage V

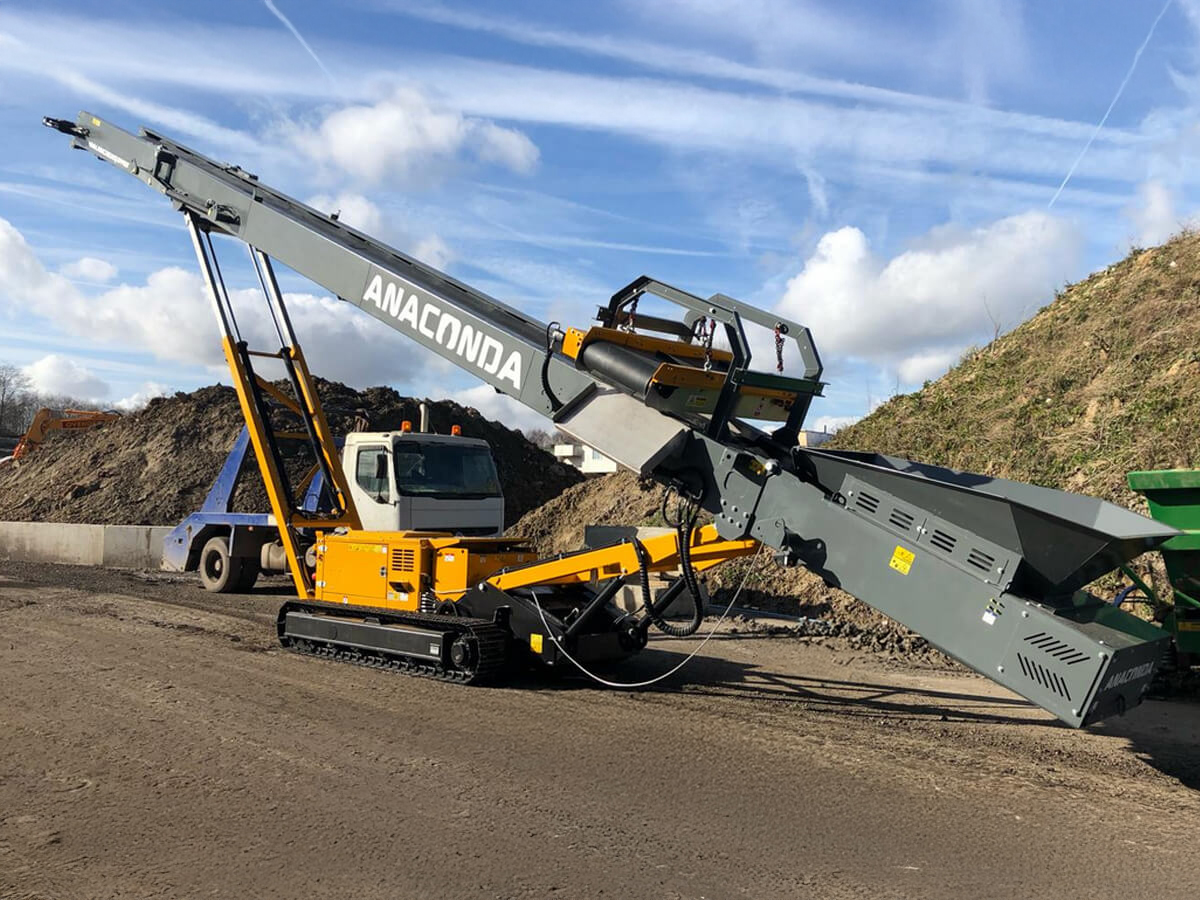

Gallery
