Anaconda · Tracked Conveyor

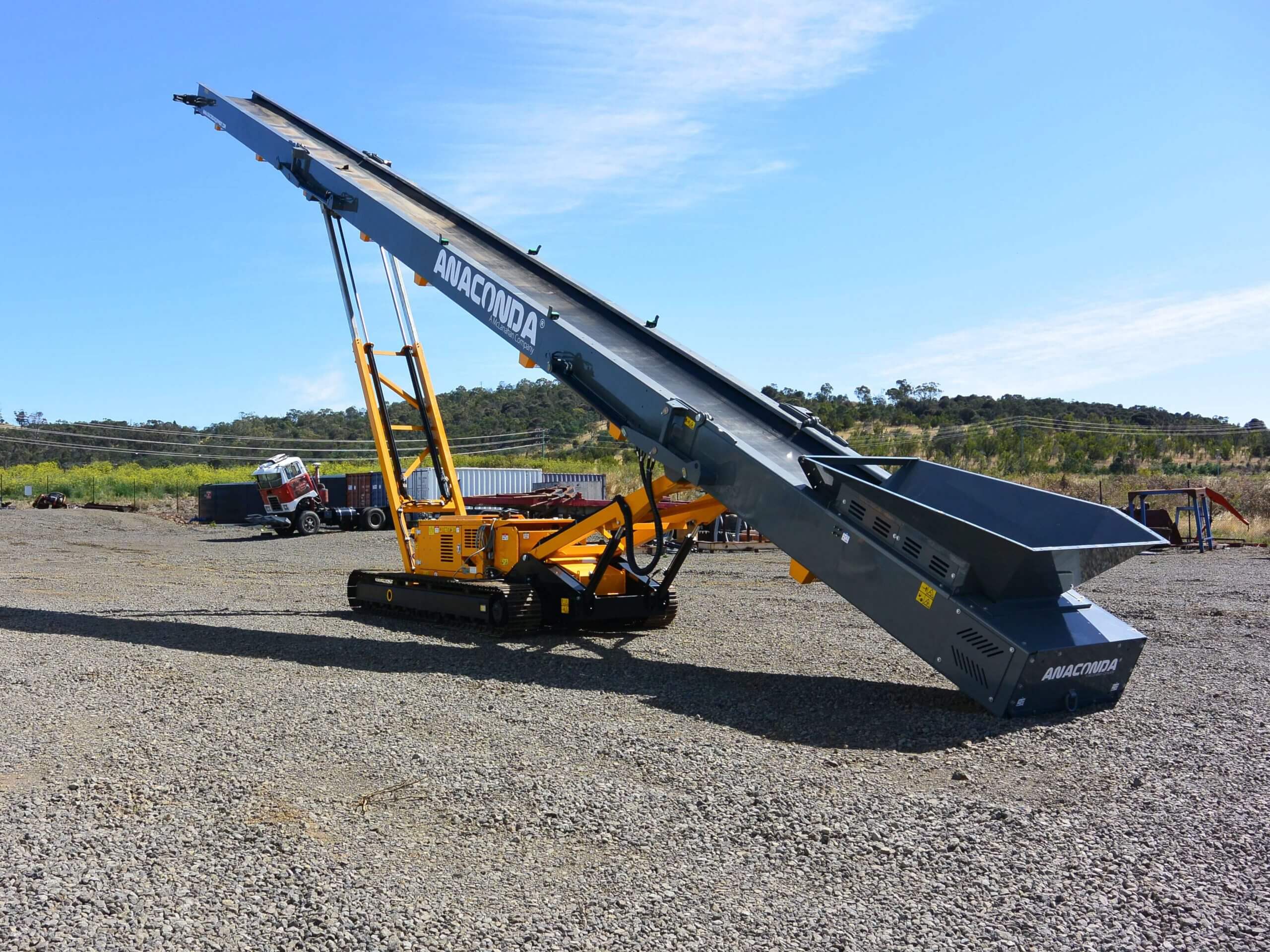

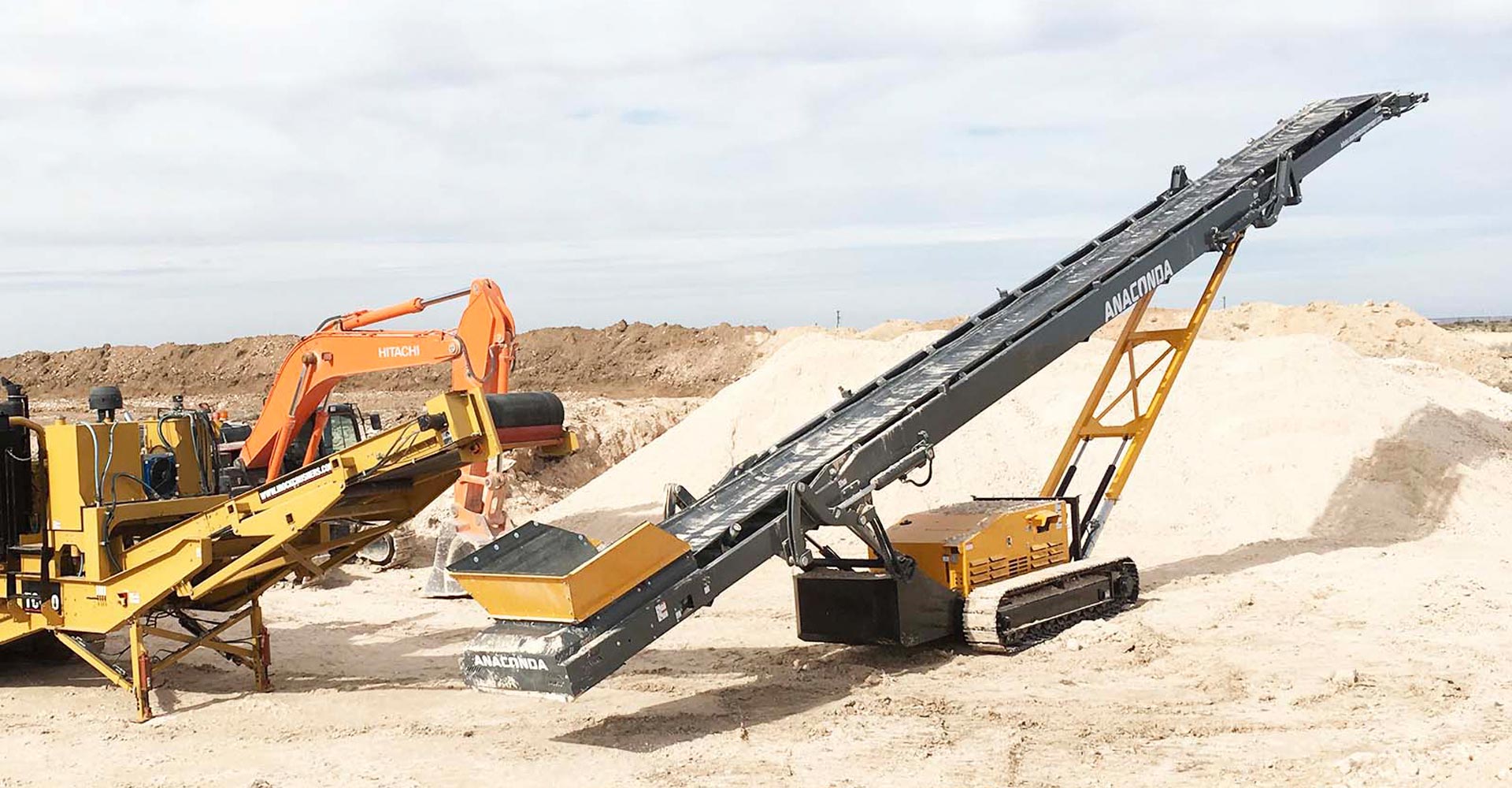

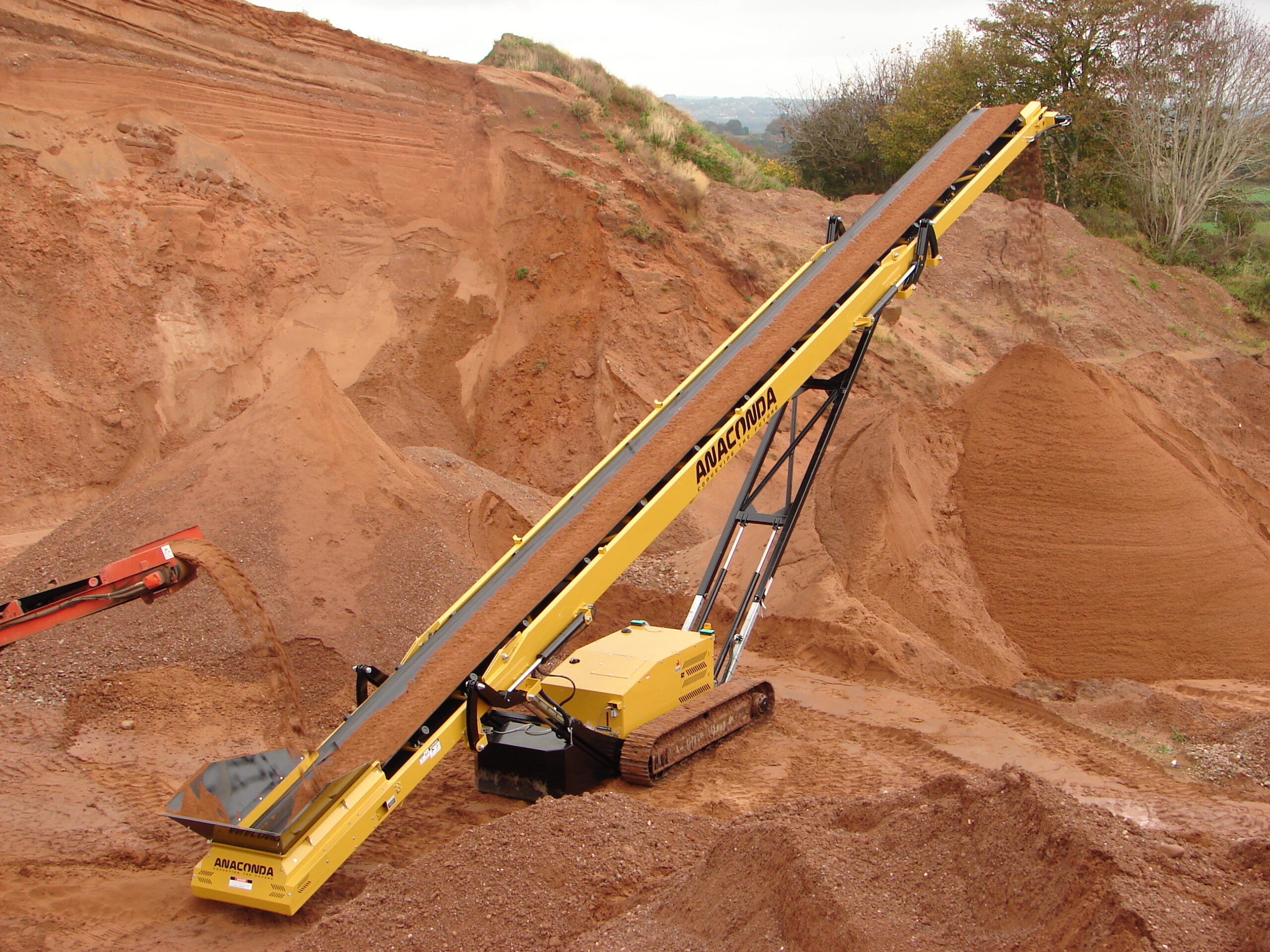

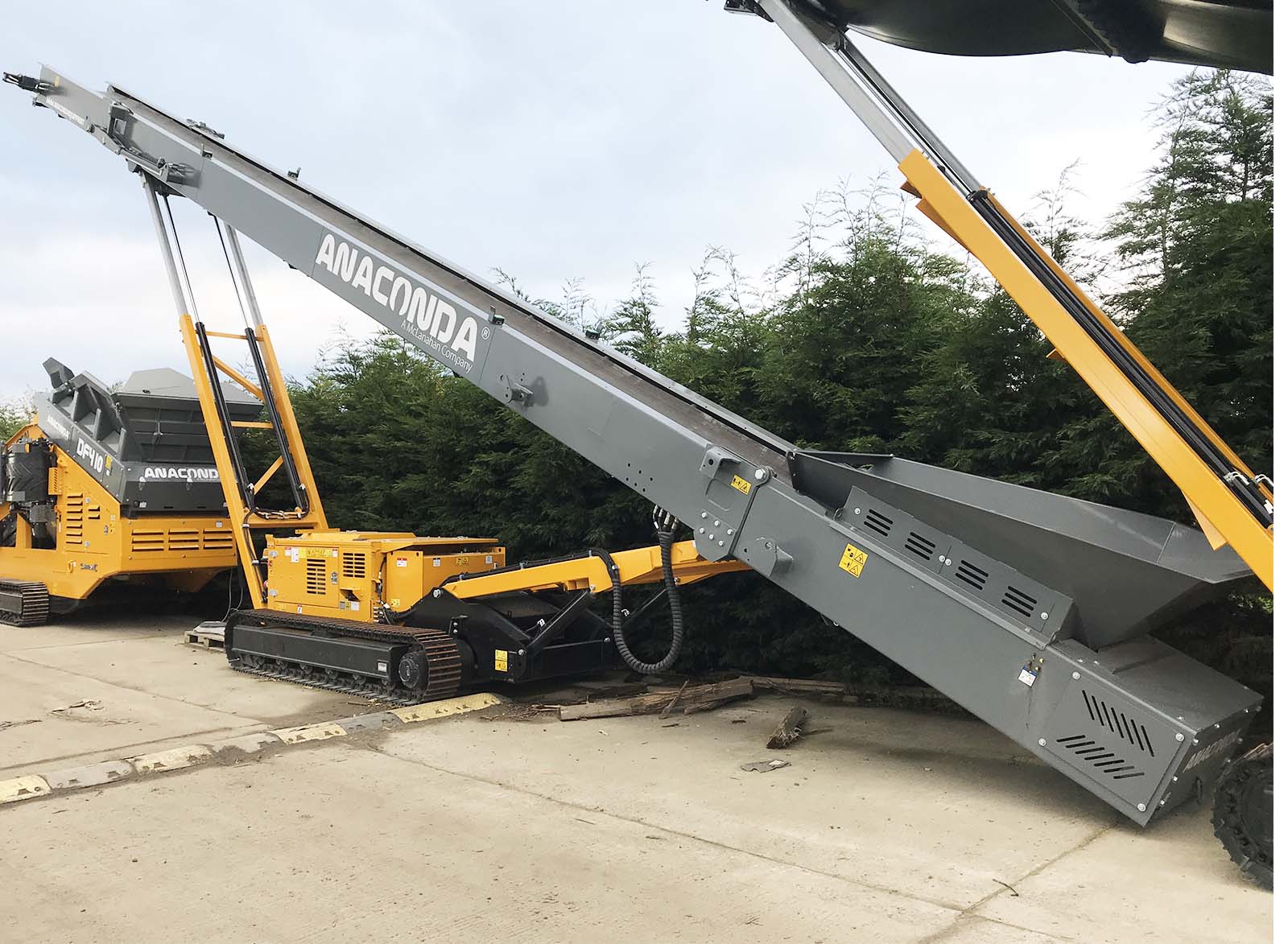

Anaconda TR75 Tracked Conveyor
Description
Consistent Material Flow for a Variety of Applications.
The Anaconda TR75 Tracked Conveyor has a 75’ conveyor body and is capable of moving up to 551 US tph with a maximum material size of 4”. It can also be containerized, allowing operators to transport the unit in a standard 40’ shipping container with minimal dismantling required.
Features & Benefits
Hydraulic folding head and tail section
Hydraulic raise and lower for front and rear legs
Impact bed under feed boot
3-ply 1,050 mm (42”) wide plain belt
Optional Features
Side skirting to enclose the belt · Chevron belt · Belt weigh scale · Overband magnet · Dust canopy · Belt upgrades available
Specifications
Anaconda TR75 Tracked Conveyor Specifications
Height34′ 5″
Length6’9″ – 7’5″
Width7′ 5″
Weight30,864 lbs.
Feed Capacity551 US tph
Engine Options
ModelPowerEmissions
JCB 444 DieselMAX63 kW (85 HP)Tier 3
JCB 444 EcoMAX55 kW (74 HP)Tier 4 Final
Deutz 2.9 L450 kW (67 HP)Stage V
CAT C2.855 kW (74 HP)Stage V
