Terex

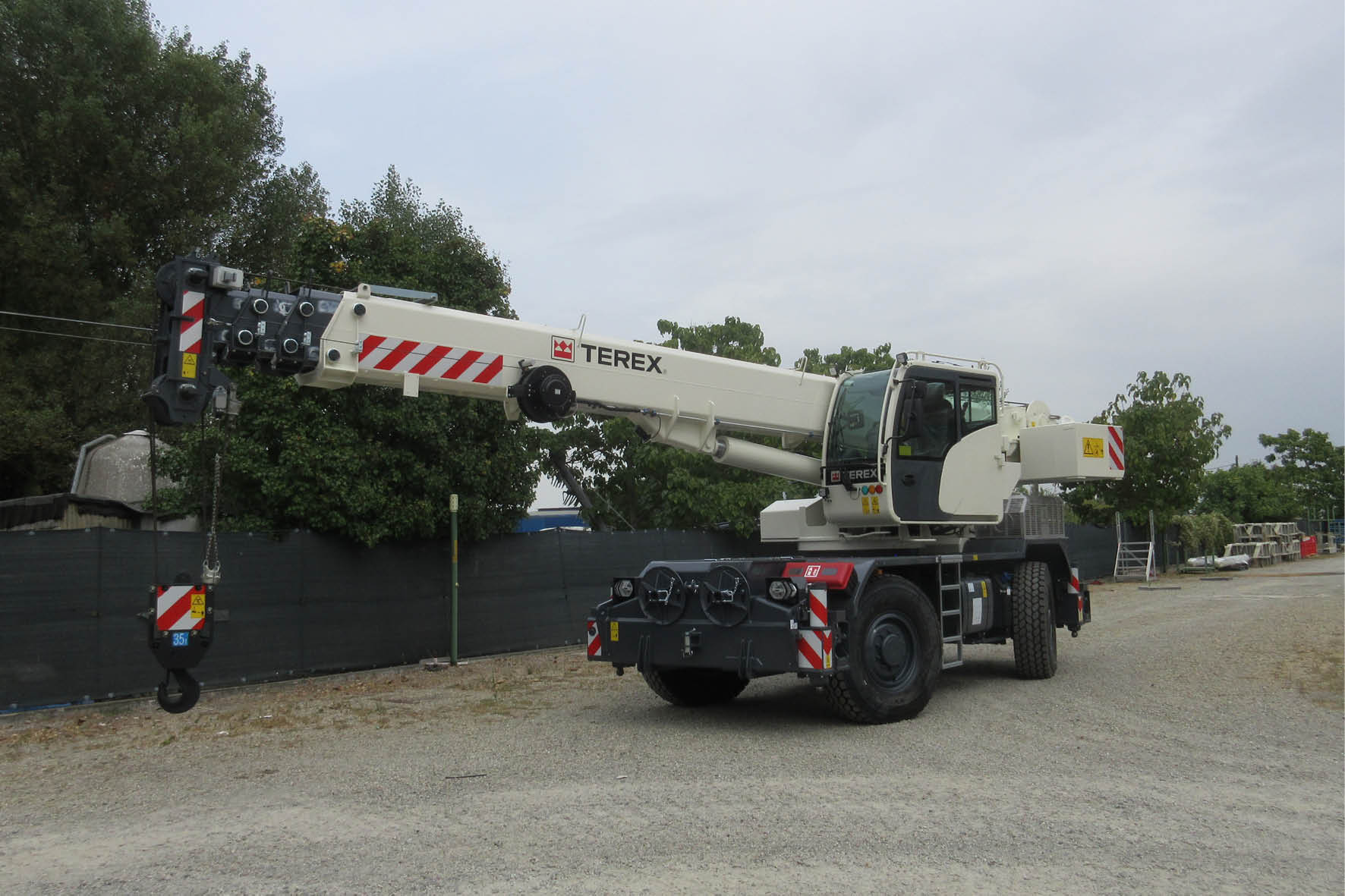

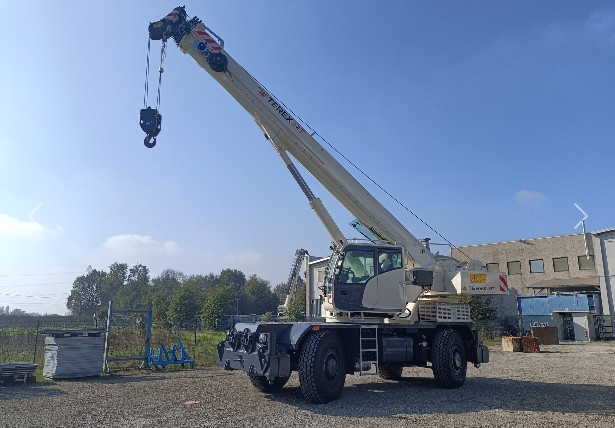

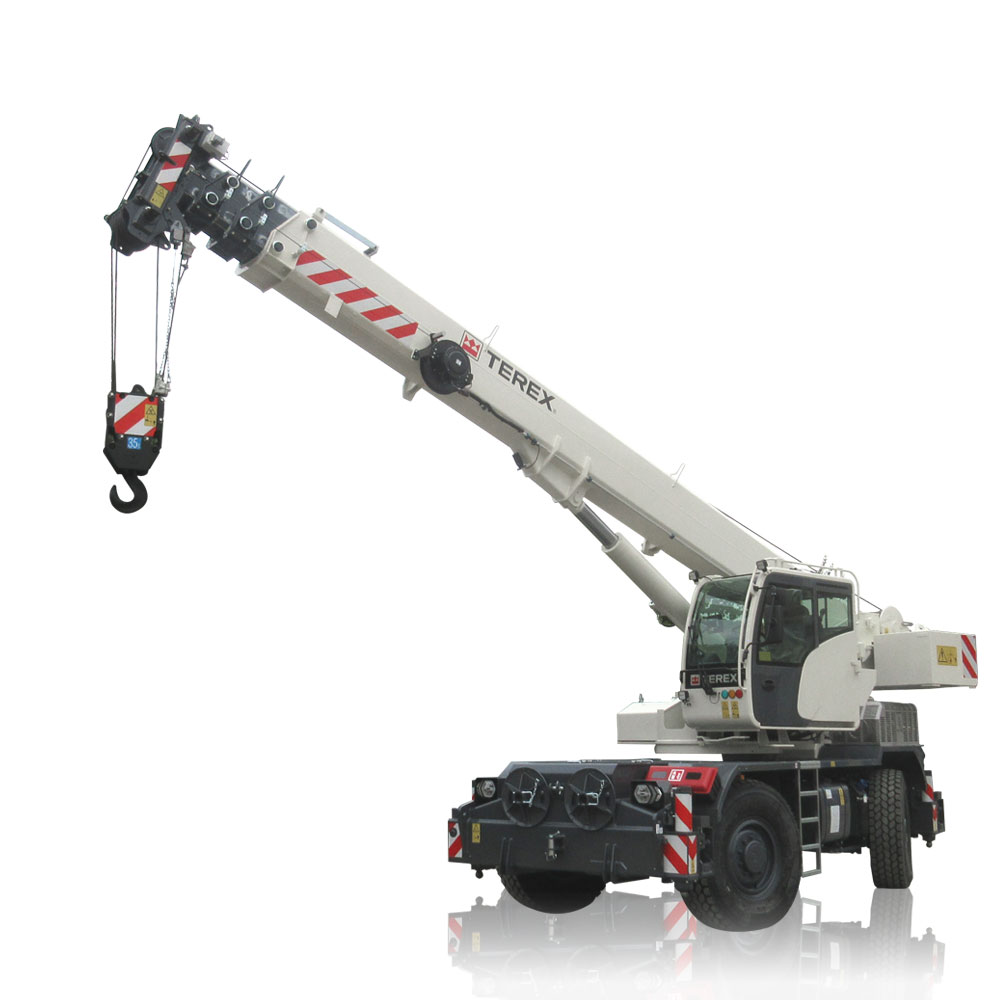

Terex TRT 40US Rough Terrain Crane
Rough Terrain Crane
Description
Solid Mid-Sized Crane For Multiple Applications
This powerful Terex rough terrain crane, TRT 40US, is a 40 USt max-capacity crane with a 99-ft main boom. The model features the new TEOS Terex Operating System: on a 10-inch touch-screen display, this control system offers a new user interface with improved information flow and accessibility to increase customers’ operating efficiency. This unit is perfect for new or experienced operators working inside limited spaces and on undeveloped sites.
Features & Benefits
Four steering modes for greater safety and flexibility
Ergonomic and customizable electro-proportional joysticks
108 ft maximum tip height main boom
99 ft. hydraulic four-section boom for proportional telescoping mode for versatility
New TEOs operating system for full control of the boom
Specifications

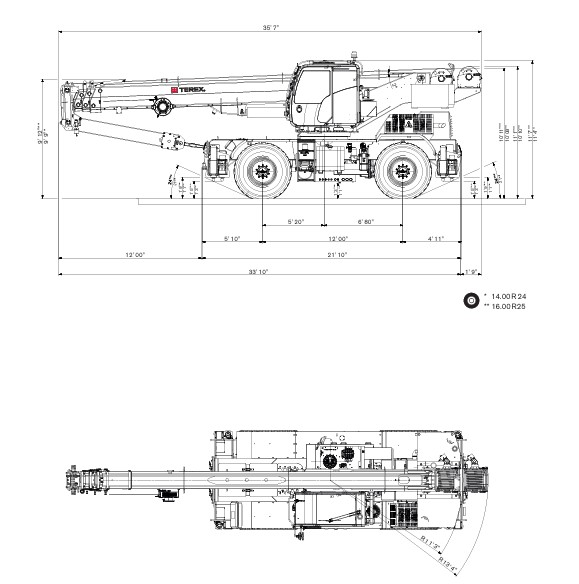

Terex TRT 40US Rough Terrain Crane Specifications
Max Lifting Capacity40 US tons @ 8.2 ft. radius
Main Boom Length29.9 – 98.8 ft. (4-section)
Max Tip Height (Main Boom)107.7 ft. (incl. extension)
Boom Extension26.2 ft. (offsets 0° / 20°)
SteeringFour modes (two-wheel front, two-wheel rear, four-wheel coordinated, four-wheel crab)
Operating SystemTEOS (10-inch touchscreen)
Engine Power173 hp @ 2,200 rpm
Counterweight9,260 lbs.
Overall Vehicle Weight54,278 lbs.
Slew Speed1.1 rpm
Travel Speed18 mph
Transmission4WD with two shift modes
Fuel Tank63 gallons
Engine Options
ModelPowerEmissions
Cummins QSB4.5, 173 hp.Stage V / Tier 4F
