Terex

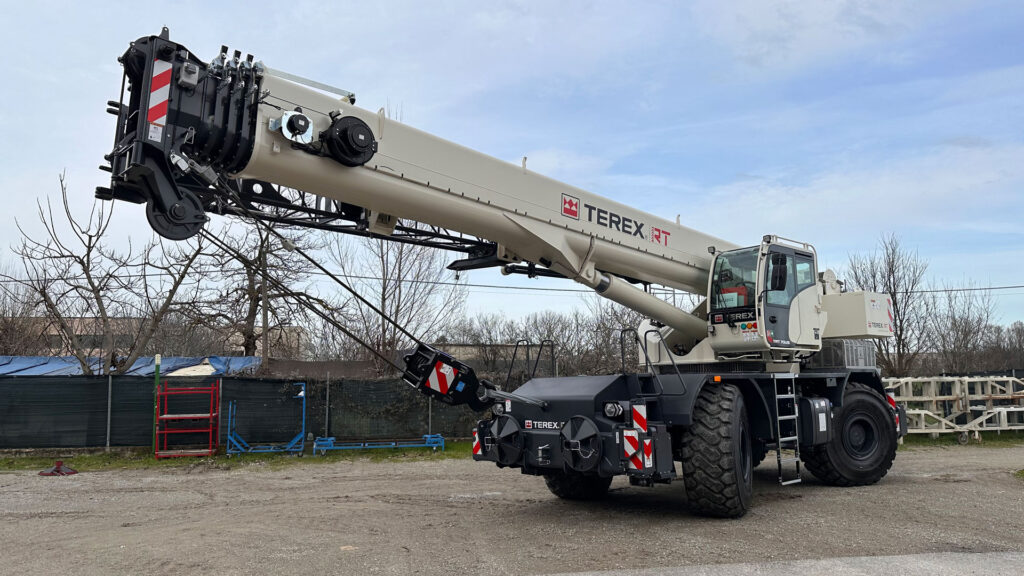

Terex TRT 70US Rough Terrain Crane
Rough Terrain Crane
Description
Ultimate in Versatility and Features In A Rough Terrain Crane
Go off-road confidently with Terex rough terrain cranes. With excellent ground clearance and up to four steering modes, positioning these cranes in even the most rugged terrain is easy. Add to that their flexibility, durable construction, and low cost of ownership, and you can see why Terex rough-terrain cranes are an easy choice for day-in, day-out lifting. The new Terex rough-terrain crane TRT 70US is a 70 USt max-capacity crane with a main boom length of 143 ft. The model features the new TEOS Terex Operating System: on a 10” touch screen display, this new control system has a totally new user interface with improved information flow and accessibility, to increase customers’ operating efficiency.
Features & Benefits
Up to 4 cameras for enhanced visibility, integrated on the main display
143 ft hydraulic four-section boom – proportional telescoping mode
Ergonomic electro-proportional joysticks with adjustable responsiveness to operator preferences
Integrated heating and air conditioning system
Additional lattice jib of 26/49 ft
Four steering modes for different jobsites
Four steering modes
Extra-wide and tiltable cabin
Compact dimensions
Specifications
Terex TRT 70US Rough Terrain Crane Specifications
Overall Weight99,870 lbs.
Max Lifting Capacity70 US tons @ 8.2 ft. radius
Max Tip Height (Main Boom36.1 – 142.7 ft. (5-section)
Max Tip Height (with Jib26 / 49 ft. (2-section, offsets 0° / 20° / 40°)
SteeringFour-wheel coordinated (four-wheel crab)
Engine Power225 hp @ 2,200 rpm
Counterweight13,230 lbs.
Hoist Line Pull15,062 lbs.
Travel Speed19 mph
SteeringFour modes
Fuel Tank79 gallons
Engine Options
ModelPowerEmissions
Cummins QSB6.7 225 hpTier 4 Final/Stage V
