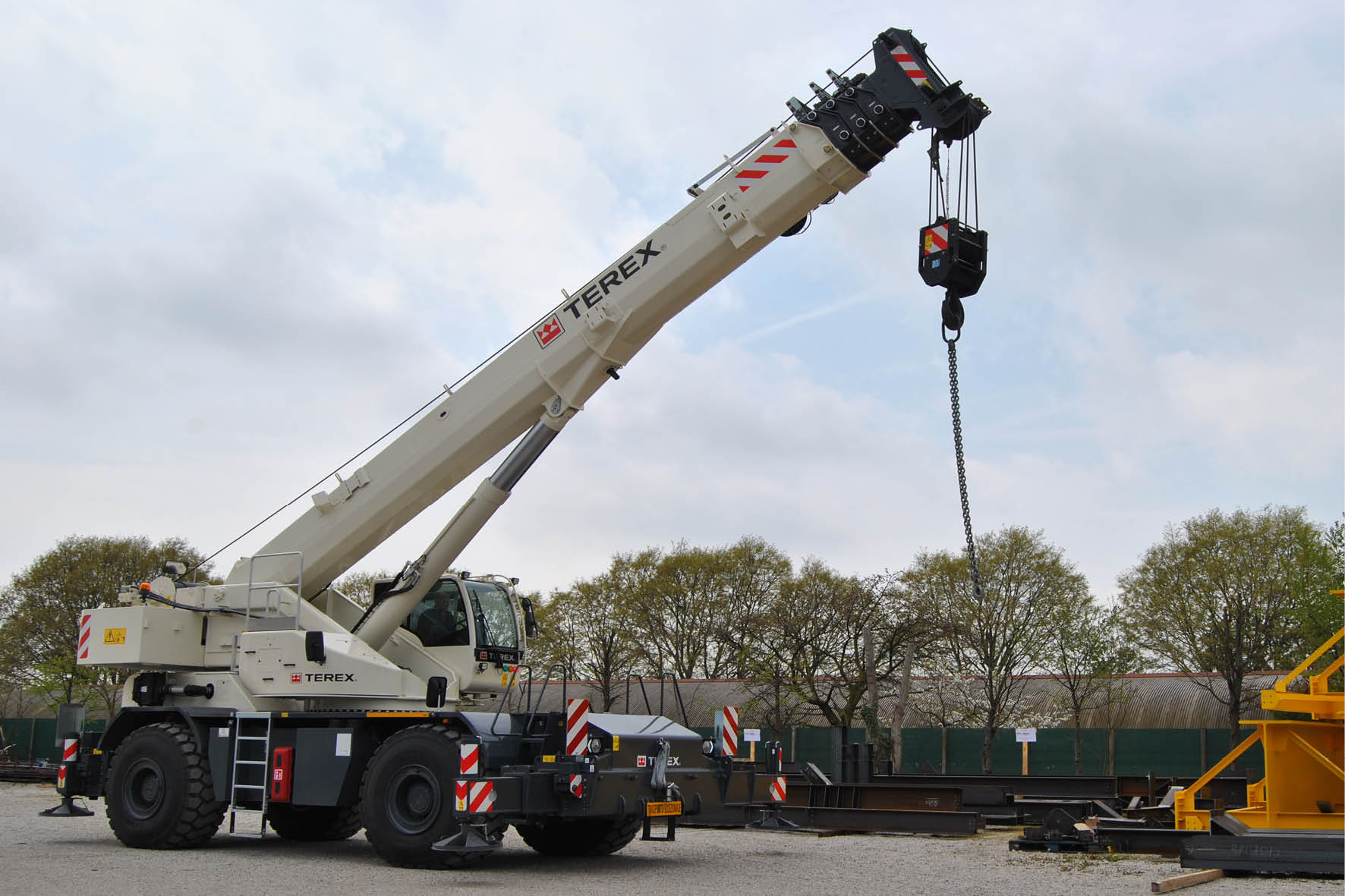

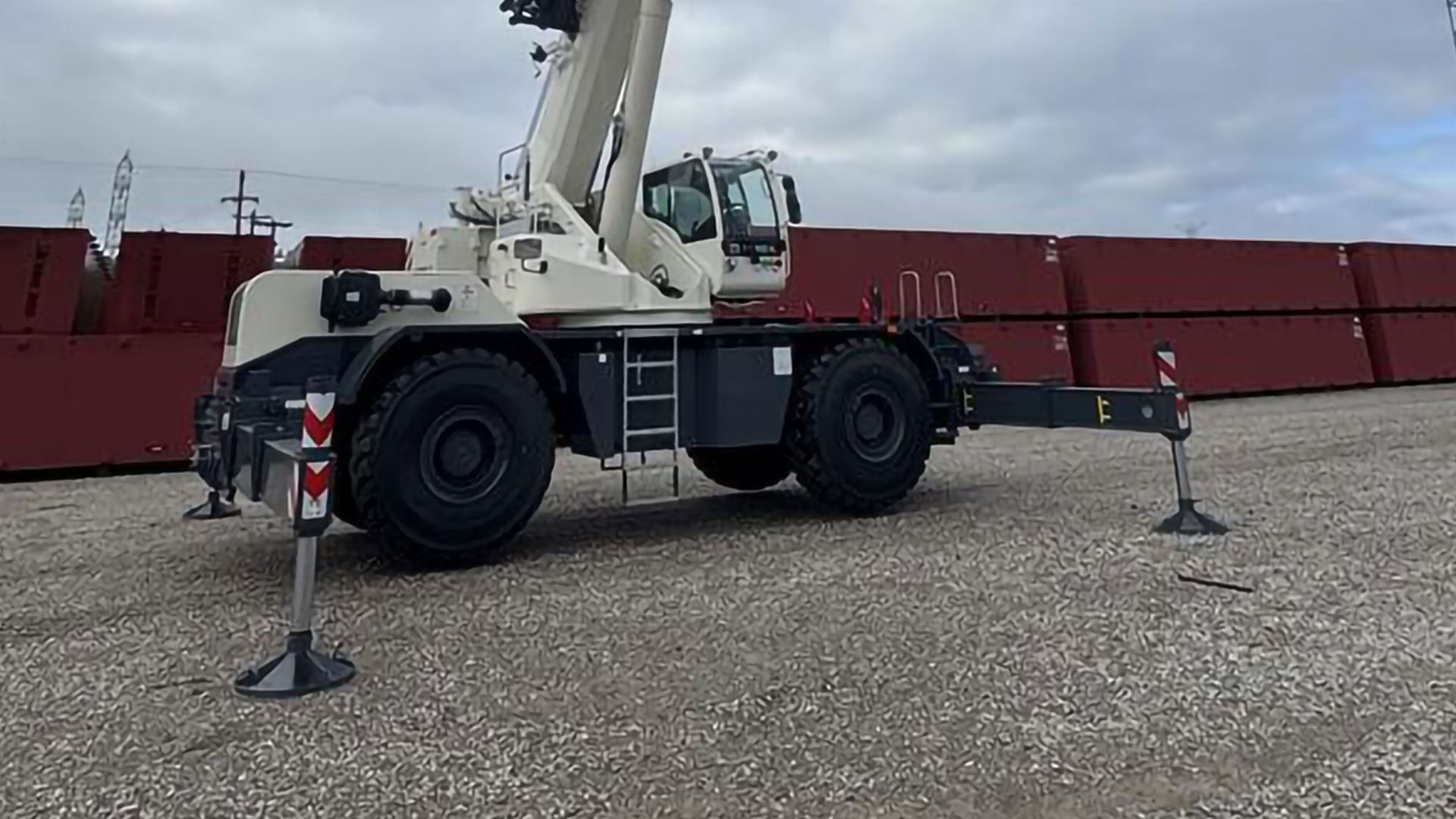

Terex TRT 80US Rough Terrain Crane
Rough Terrain Crane
Description
Powerful Versatile Rough Terrain Crane For All Applications
A crane that can stand up to any challenge. Terex’s rough terrain crane TRT 80US is an 80 USt max capacity crane with a main boom length of 138 ft. The model features the new TEOS Terex Operating System: on a 10-inch touch-screen display, this control system offers a new user interface with improved information flow and accessibility to increase customers’ operating efficiency. The compact size and adequate ground clearance mean that no matter the ground type, you always have the right traction and maneuverability
Features & Benefits
Extra-wide and tiltable cabin
138 ft five-section boom – three telescoping modes
Superior load charts and tip heights
An additional 2-section jib of 26/49 ft.
Self-removable counterweight
Jib availability to reach the more demanding spots on top of the buildings
Ergonomic and customizable electro-proportional joysticks
Specifications
Terex TRT 80US Rough Terrain Crane Specifications
Overall Weight1018, 121 lbs.
Overall Width9.8 ft
Max Lifting Capacity80 US tons @ 8.2 ft radius
Main Boom36.7 – 138.1 ft (5-section)
Tip Height w/ Jib195 ft.
Jib26.2 / 49.2 ft (offsets 0° / 20° / 40°)
Engine Power225 hp @ 2,200 rpm
Operating SystemTEOS (10-inch touchscreen)
SteeringFour-wheel coordinated (four-wheel crab)
Counterweight17,600 lb (self-removable to 7,700 lbs.)
Hoist Line Pull15,062 lbs.
Transmission4WD with two shift modes
Max Speed18 mph
Fuel Tank66 gallons
Engine Options
ModelPowerEmissions
Cummins QSB6.7 225 hpTier 4F / Stage V
Gallery
See It in Detail
