ASV · Compact Track Loader

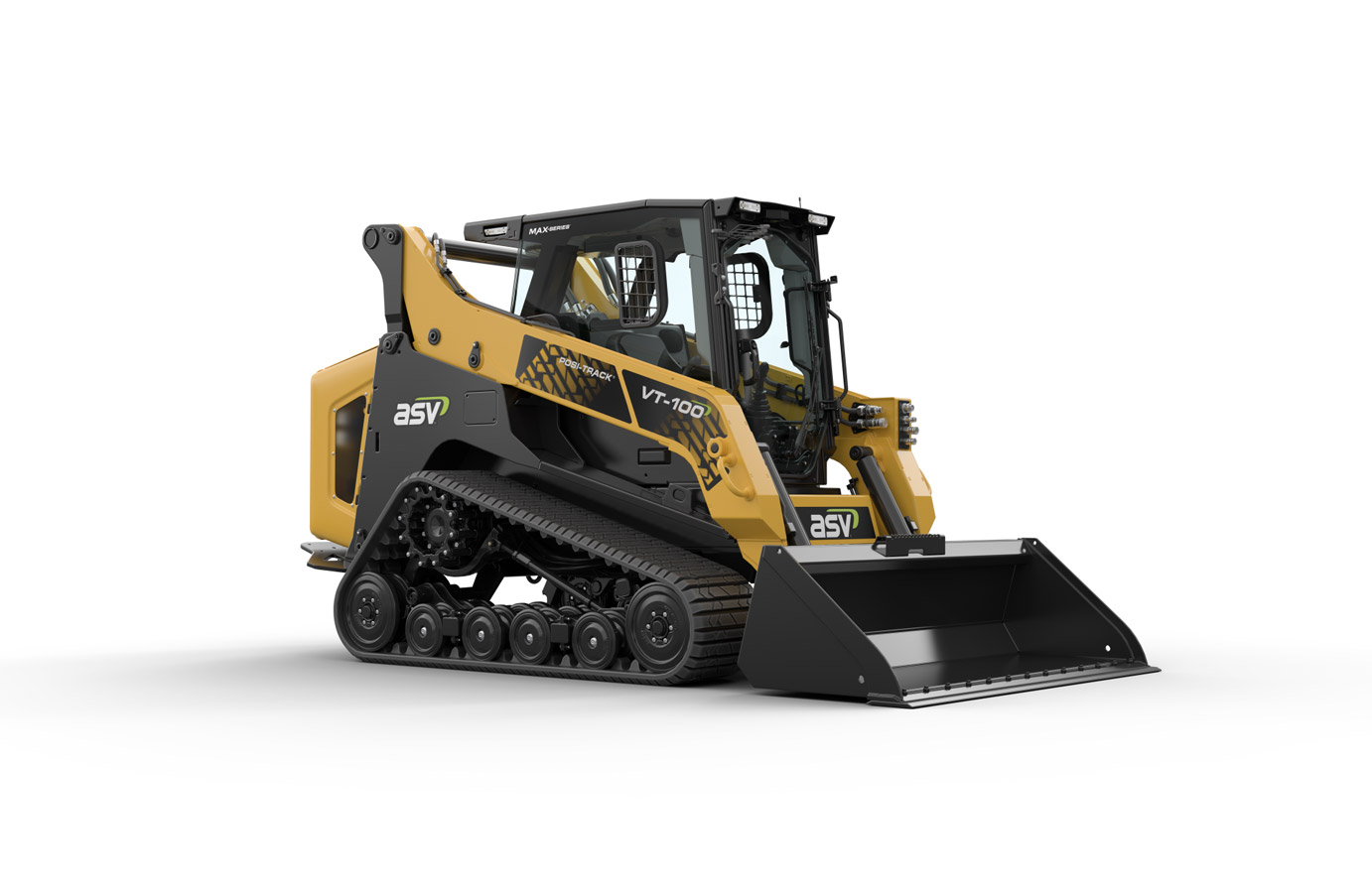

ASV VT-100 Compact Track Loader

Ideal Track Loader for Everything from Loading to Grading

The hard-hitting MAX-Series™ VT-100 gives you the tools to improve productivity while working comfortably. The vertical-lift machine excels in loading and grading applications in landscaping and construction. From an efficient, reliable, and powerful 103.5 hp Yanmar engine to numerous new technology features such as auto 2-speed, loader and bucket return-to-positioning, speed-sensitive ride control, and more, the VT-100 is a hard-hitting jobsite addition.

Premium 360-degree visibility and a state-of-the-art 7-inch color display improve convenience on the jobsite. The display provides vital monitoring tools, shows the rear-view camera feed, and integrates with service schedules and history for added convenience. The fully adjustable suspended seat and the smooth ride enabled by ASV’s Posi-Track undercarriage contribute to greater comfort on bumpy terrain. Additionally, the VT-100 includes optional ride control.

Features & Benefits
Meets all U.S. EPA Tier 4 final standards
Transfers more flow and pressure directly to the attachment and reduces power loss
Operators can work comfortably due to the rubber track undercarriage and the MAX-Series cab

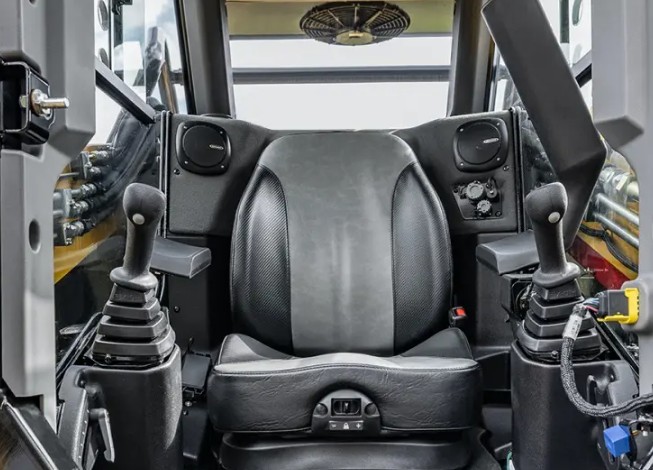

Adjustable suspended seat and smooth ride

ASV VT-100 Compact Track Loader Specifications

Operating Weight10,345 lbs.
Overall Height83.5 in
Overall Width76 in.
Track Width18 in.
Rated Operating Capacity (35%)3,500 lbs.
Ground Pressure4.0 psi
Ground Clearance15 in.
Engine Power103.5 hp
Max. Travel Speed9.3 mph
Fuel Tank34 gallons

Engine Options

ModelPowerEmissions
Yanmar 4TNV94FHT103.5 hp (77.2 kW)Tier 4 Final
