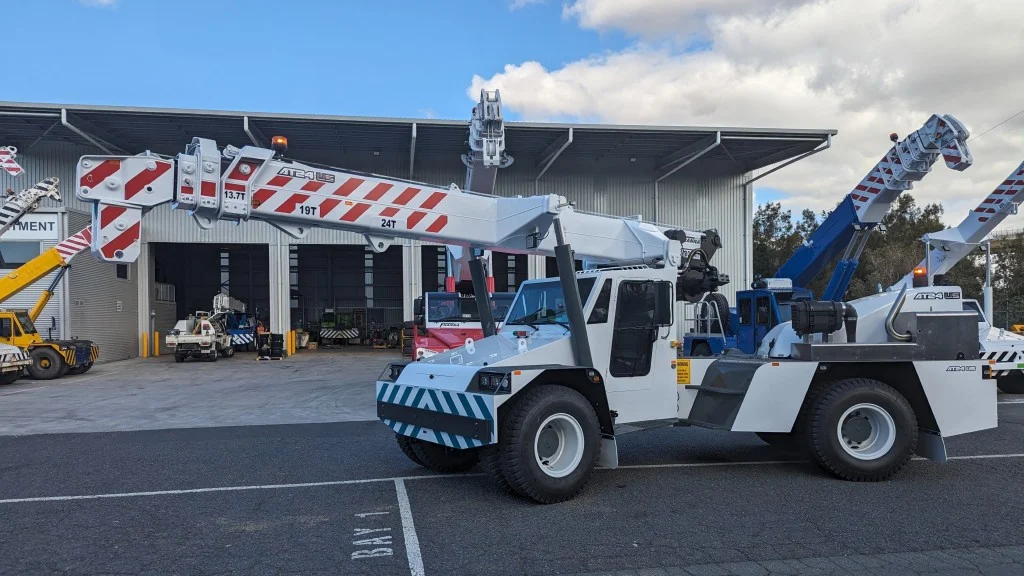

Franna AT24 US Pick & Carry Crane
Pick & Carry Crane
Description
The Multi-Function Pick N Carry Crane
The AT24 US is a mid-sized, mobile pick-and-carry crane with a maximum lifting capacity of 24 tons. Boasting maximum safety features and superior capabilities compared to other pick-and-carry cranes in the field, the AT24 US is a logical choice for customers across a wide range of applications.
Features & Benefits
Wide stance boom lift cylinders enhance the operator’s vision 50 mph for greater efficiency
17.6 ton capacity on a 4-part hook block for more power when needed
Single lift cylinder enhances the operator’s vision.
Ergonomic cabin design ensures maximum comfort for the operator
Easy access to all key maintenance points
Dynamic LMI (Patent Protected)
Wide stance boom lift cylinders enhance operator's vision.
Easy access to all key maintenance points
Modern cabin design
Specifications
Franna AT24 US Pick & Carry Crane Specifications
Operating Weight48,000 lbs.
Max Lifting Capacity24 USt (24-ton)
Main Boom Length58.8 ft (4-section, proportional)
Max Tip Height (Main Boom)55.9 ft.
Max Tip Height (with Jib)65.7 ft.
Transmission4-speed automatic transmission
Steering4WD
Operating SystemClutch-free operation
Max. Speed50 mph
Fuel Tank116 gallons
Engine Options
ModelPowerEmissions
Mercedes OM 934 Tier 4 F228 hp.EPA Final 4V

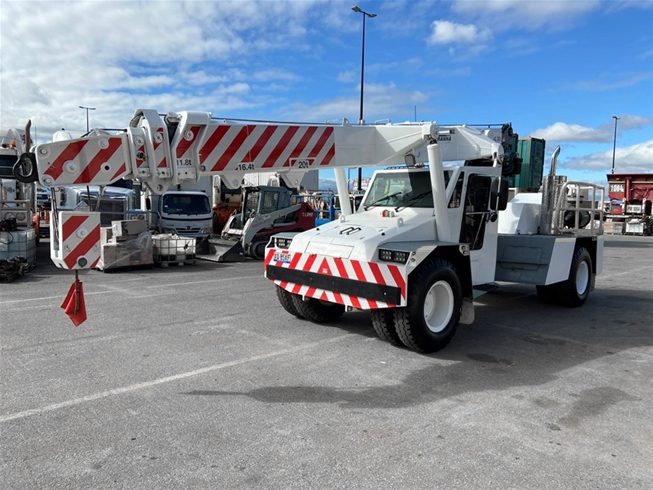

Gallery
See It in Detail
