Pick & Carry Cranes
Strength & Ease of Operation For Heavy Loads
Pick and Carry Cranes Built With A Purpose
With a rich heritage of design and engineering excellence, Franna is the leading manufacturer of pick-and-carry cranes. For over 40 years the company has dominated many foreign markets and today Franna Cranes are sold across the globe including the U.S.
Franna pick-and-carry cranes live up to their name with the strength and easy operation to pick up heavy loads and the steering flexibility to move in tight spaces. Their high road speeds get them to the jobsite quickly, and because the articulated frame needs no outriggers, you can get set up and working almost immediately.
Franna Pick & Carry Crane Lineup

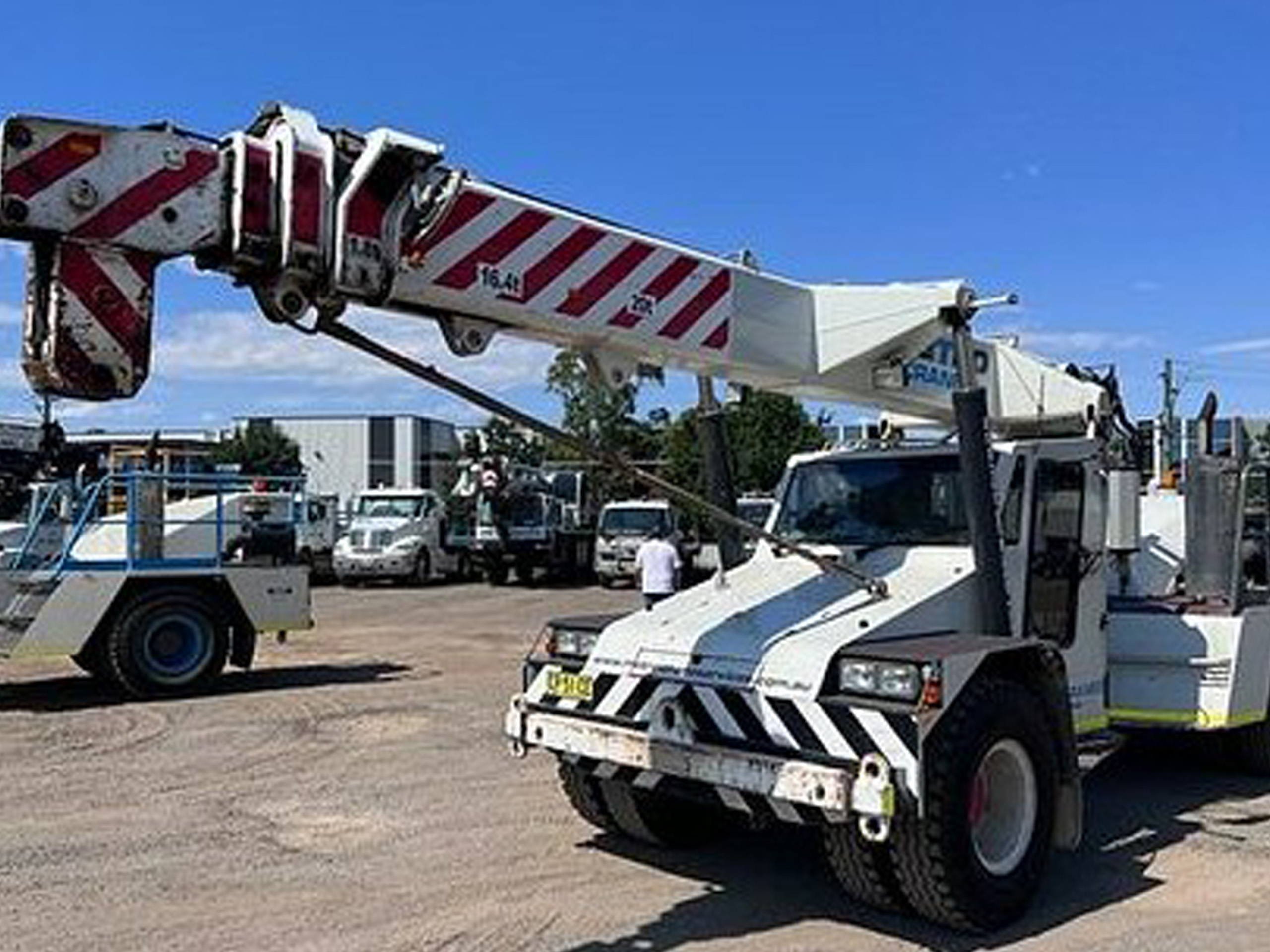

FR19 US
Franna cranes are engineered with safety as the number one priority. The FR19 US model incorporates advanced safety technologies to ensure secure lifting operations to protect both personnel and the surrounding environment. With features such as overload protection, Franna’s own advanced Dynamic LMI, external E-stop, and an ergonomically designed cabin, Franna cranes provide operators with peace of mind, allowing them to focus on their tasks without compromising safety.
- 19 US ton @ 4’11”radius
- 1.1 US ton @ 53’7” radius
- 56’3” maximum hook height
- 11.5 US ton capacity on 4 part hook block
- Single line pull 3.5 US ton
- Single lift cylinder enhances operator’s
vision. - Easy access to all key maintenance points
- Ergonomic cabin design ensures maximum comfort for the operators

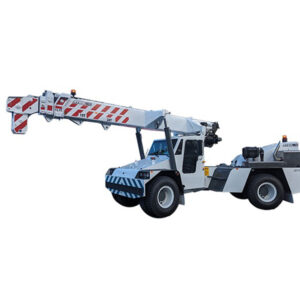

AT24 US
The AT 24US is a mid-sized, mobile pick-and-carry crane with a maximum lifting capacity of 24 tons. Boasting maximum safety features and superior capabilities than of other pick-and-carry cranes in the field, the AT 24 US is a logical choice for customers who cover a wide range
of applications.
- 24 ton @ 4’7”radius
- 1.8 ton @ 51’10” radius
- 55’9” maximum hook height
- 17.6 ton capacity on 4 part hook block
- Single line pull 4.4 ton
- Dynamic LMI (Patent Protected)
- Wide stance boom lift cylinders enhance operator’s vision.
- Easy access to all key maintenance points
- Modern cabin design
AT44 US
The AT44 US is the flagship pick-and-carry crane in the Franna portfolio, incorporating the latest technology with engineering excellence. With a huge maximum lift capacity of 40 tons, the 3-axle design eliminates the need for a removable counterweight and the third axle control system raises axle 3 when operating on a work site. Additional features include a full width isolated cabin, articulating counterweight, and increased cabin storage.
- 40 ton at 1.1m radius on lug
- 35 tons at a 2.0m radius on 8 8-part hook block
- 20 tons on machinery (Rhino) hook
- 62 ft maximum hook height
- Single line pull 4.3 tons
- Dynamic LMI (patent protected)
- Designed to AS1418.5 (2013)
- Full-width isolated cabin ensures excellent visibility
- High-strength boom with easy maintenance
- Hydro-pneumatic suspension enhances roadability
- Turret counterweight for greater articulated lifting capacityick
