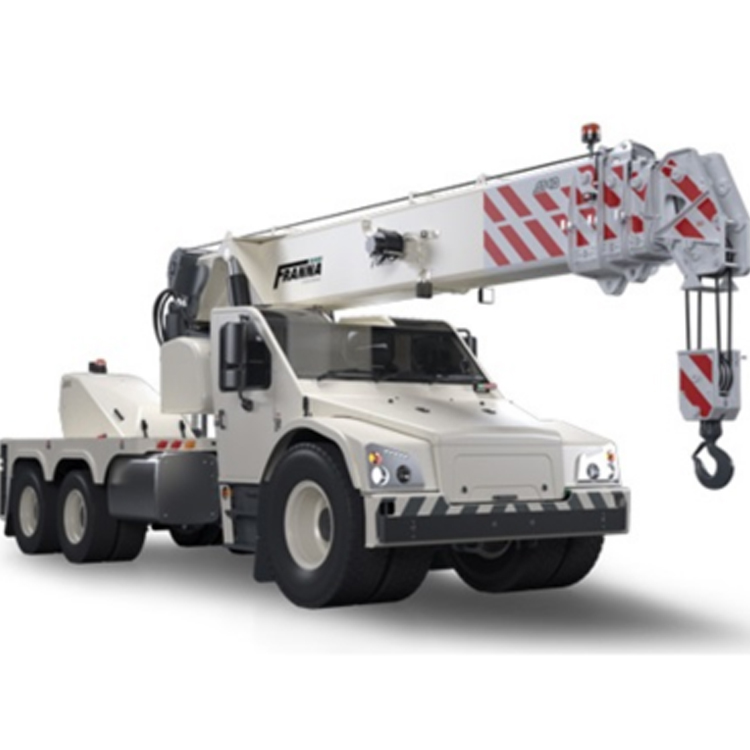

Franna AT44 US Pick & Carry Crane
Pick & Carry Crane
Description
Franna’s Largest and Most Powerful Pick and Carry
Franna has launched its largest and most powerful pick-and-carry crane for the North American market yet, the AT44 US. Driven by a 308-horsepower Mercedes diesel engine, the AT44 has a 44-ton lifting capacity at a 3-foot 7-inch radius and a maximum hook height of 62 feet.
The three-axle design allows the crane to self-transport its additional required counterweight. Operators can raise the third axle while turning to reduce the turning radius. The control system also allows the crane to articulate while stationary, providing precise load positioning on tight jobsites. No outriggers are required.
Features & Benefits
Full-width isolated cabin ensures excellent visibility
35 tons at a 2.0m radius on 8 8-part hook block
Includes load moment indicator and emergency stop systems for greater safety
High-strength boom with easy maintenance
Hydro-pneumatic suspension enhances roadability
Turret counterweight for greater articulated lifting capacity
Easy access to all key maintenance points
Full-width isolated cabin ensures excellent visibility
High-strength boom with easy maintenance
Hydro-pneumatic suspension enhances roadability
Turret counterweight for greater articulated lifting capacityick
Specifications
Franna AT44 US Pick & Carry Crane Specifications
Operating Weight:88,000 lbs.
Max Lifting Capacity44 USt (44-ton)
Main Boom Length65 ft (4-section, proportional)
Max Tip Height (Main Boom)62 ft.
Max Tip Height (with Jib): 66.9 ft.
Transmission4-wheel drive
Steering4WD
Operating SystemClutch-free operation
Max. Speed50 mph
Fuel Tank110 gallons
Engine Options
ModelPowerEmissions
Mercedes OM936308 hpEPA Tier 4 Final
Gallery
See It in Detail
