AUSA · Articulated Dumper

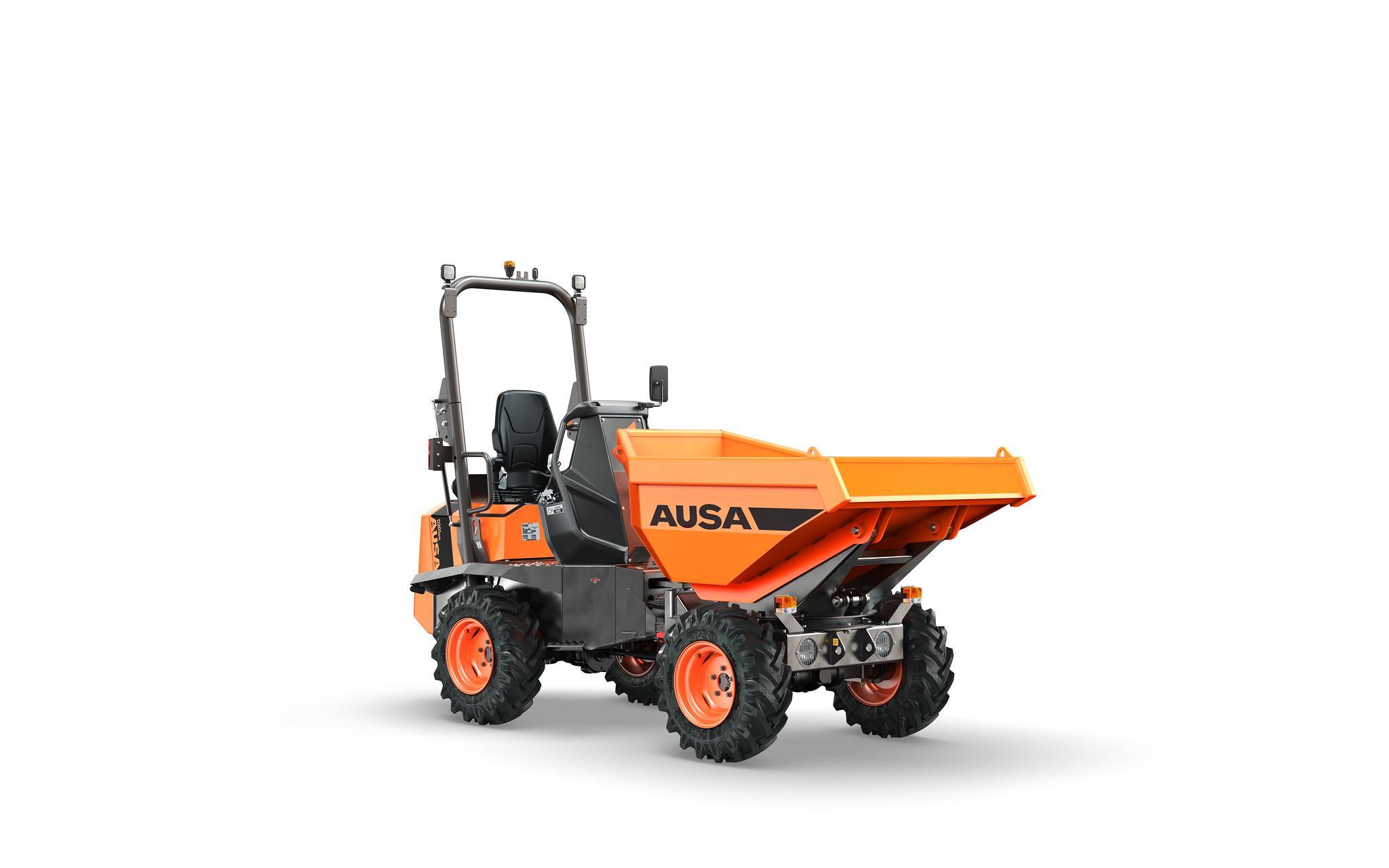

AUSA D201AHG Dumper
Description
Power, Agility, and Capacity Workhorse
With a 4,400 lb. payload and a swivel skip that can hold more than 1.7 cu yds., this is the highest-capacity dumper in its class. Its compact dimensions at just 59 in. wide make it ideal for municipal works. The D201AHG makes transporting earth or debris on sites with little room for maneuvering an agile, quick task.
This dumper also stands out for its easy and economical maintenance. The accessibility of all its components and its reliability make it one of the most cost-effective options.
Features & Benefits
High-capacity medium-sized dumper
Transports multiple materials
Combines reliability and cost effectiveness
Easy maintenance accessibility
Extra comfort seat, fully adjustable with All-in-one joystick
Hydrostatic transmission
Specifications
AUSA D201AHG Dumper Specifications
Overall Weight4,592 lbs.
Load Weight Capacity4,400 lbs.
Unloading SystemSwivel Tip
ChassisArticulated
Heaped Skip Capacity 1.7 cu yd / Level Skip Capacity 1.4 cu yd
TransmissionHydrostatic
Max. Speed10.5 mph
Maximum Gradient50%
External Turning Radius 155.7 in.
Traction4x4
Tires 10.0/75-15.3
Fuel Tank9.9 gallons
Engine Options
ModelPowerEmissions
Kubota V1505-E4B24.8 hp Stage V - EPA Tier 4
Gallery

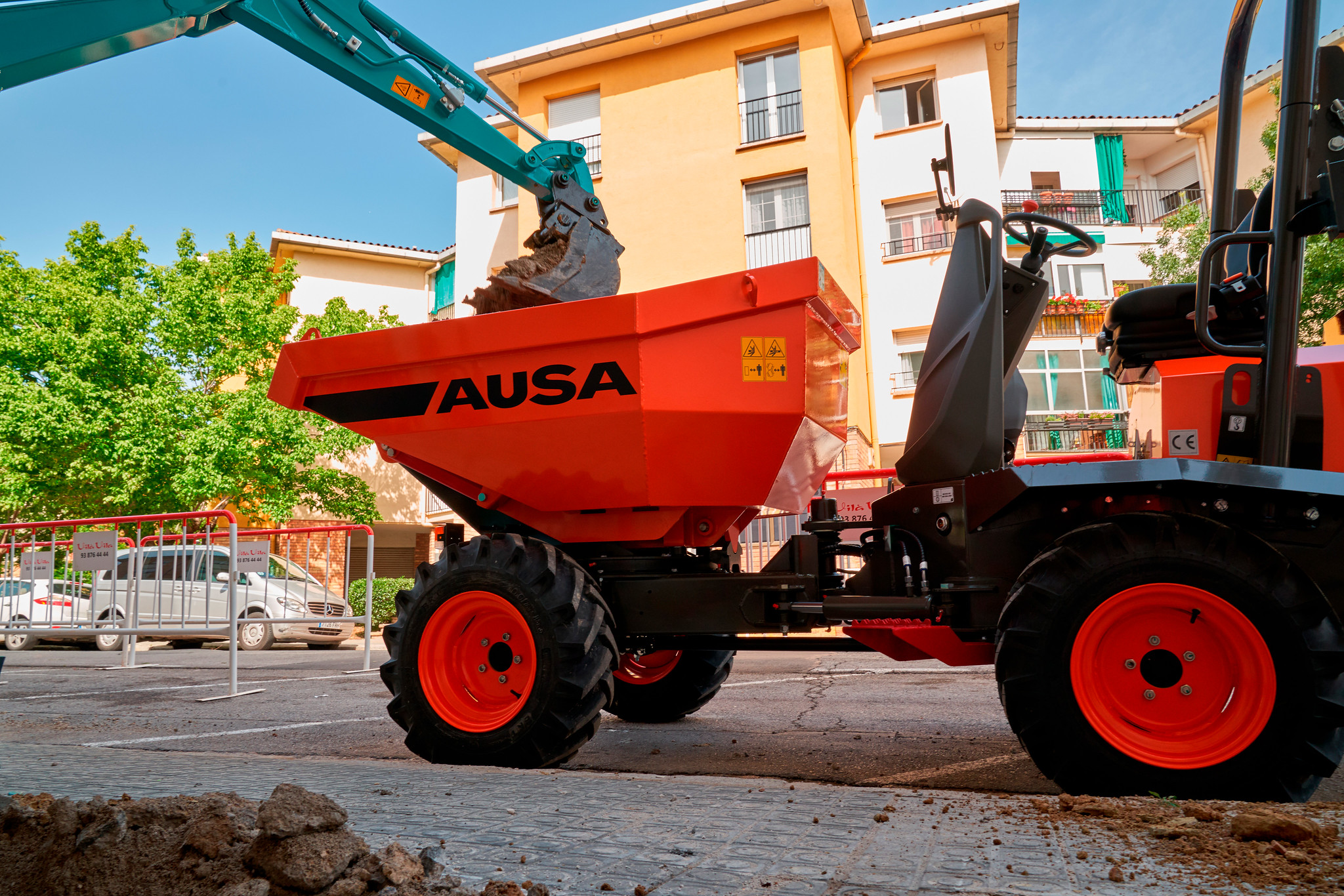

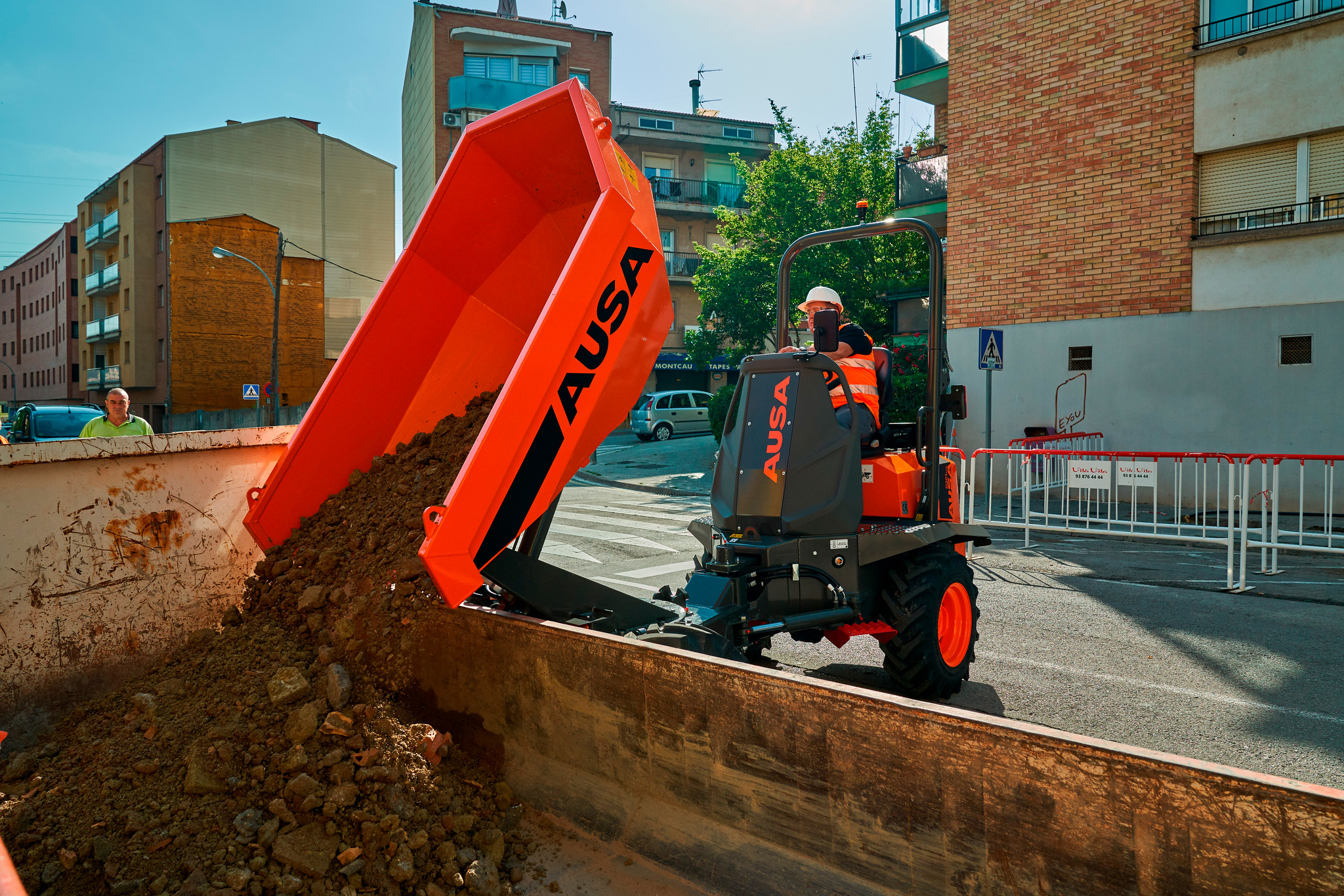

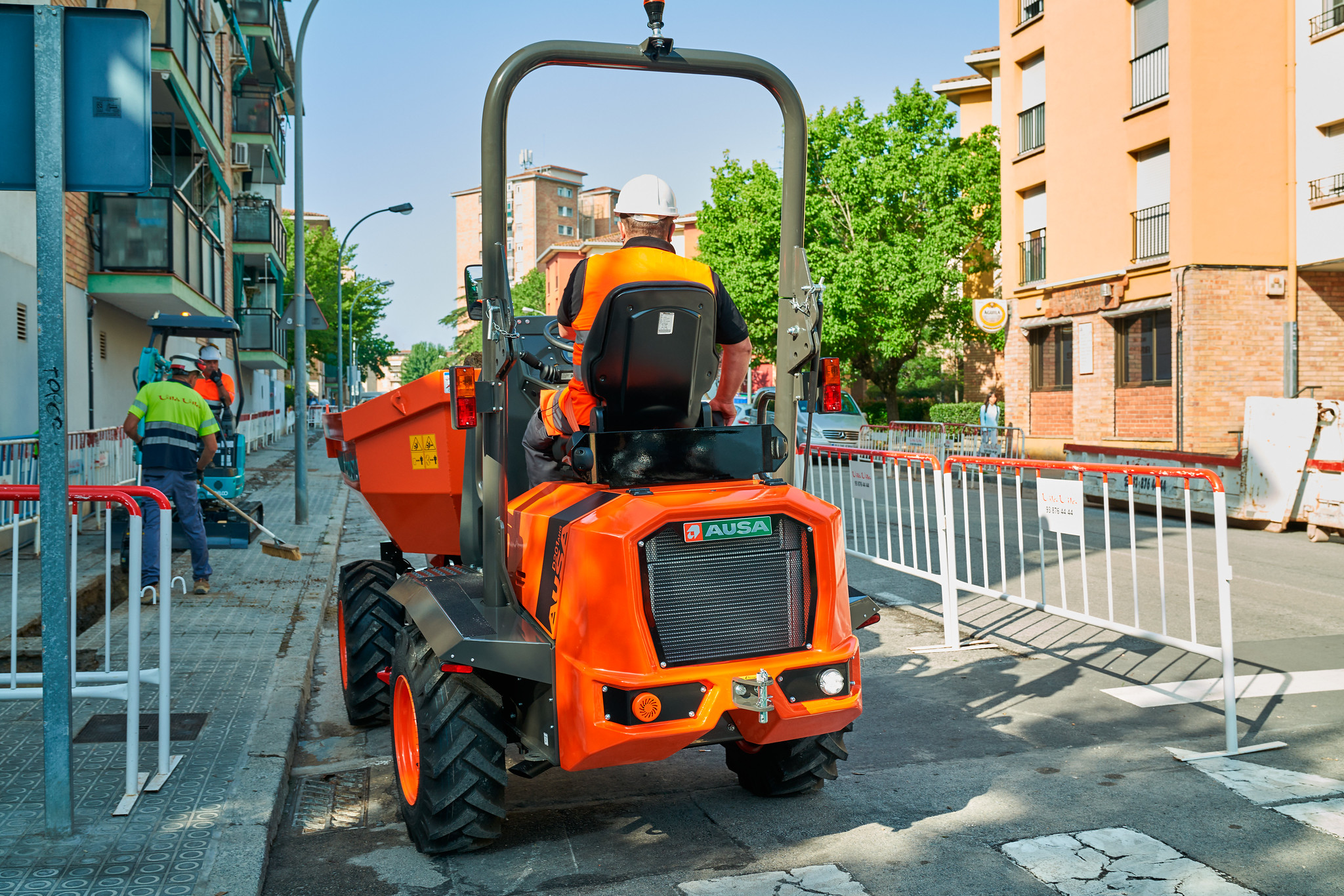

See It in Detail
