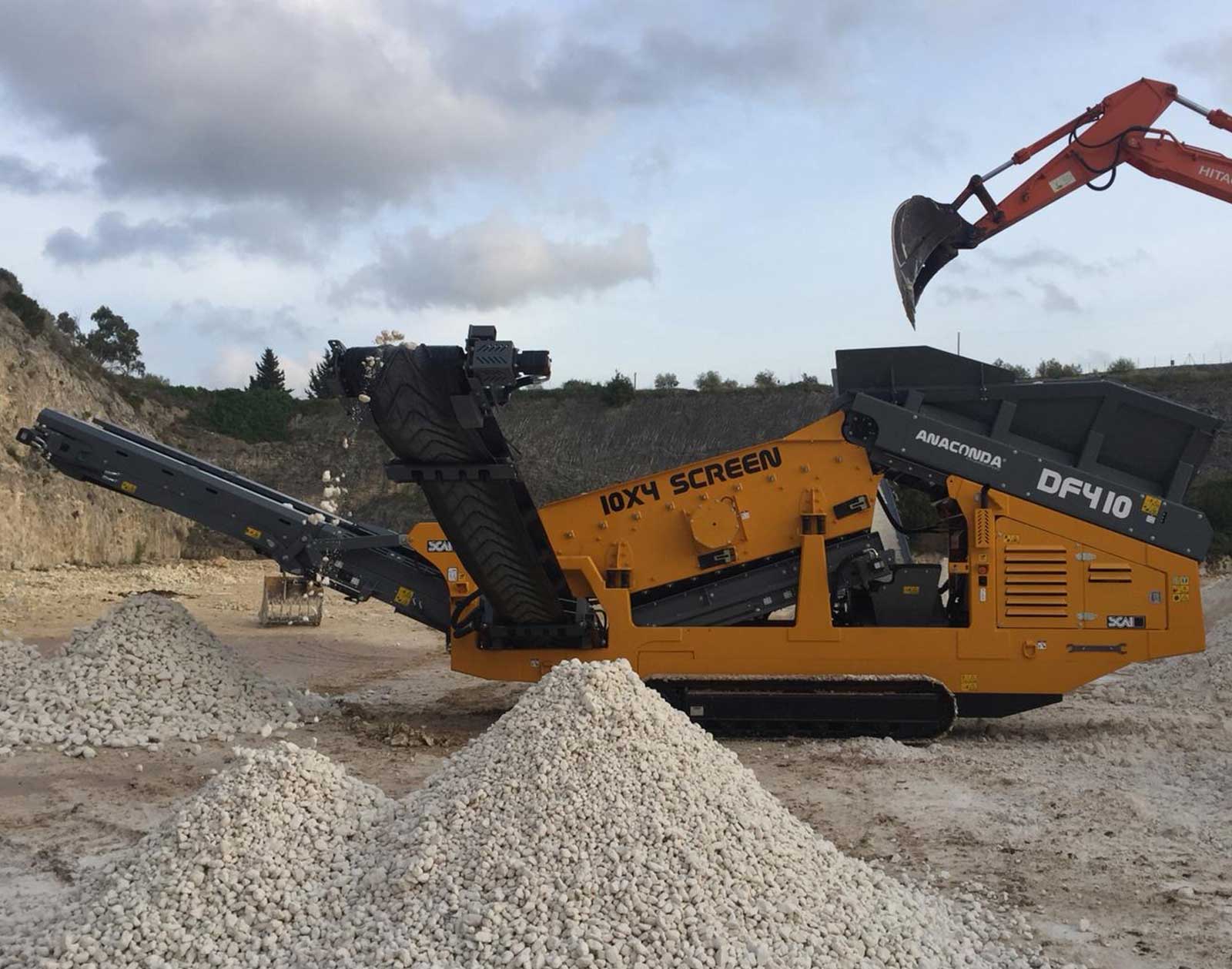

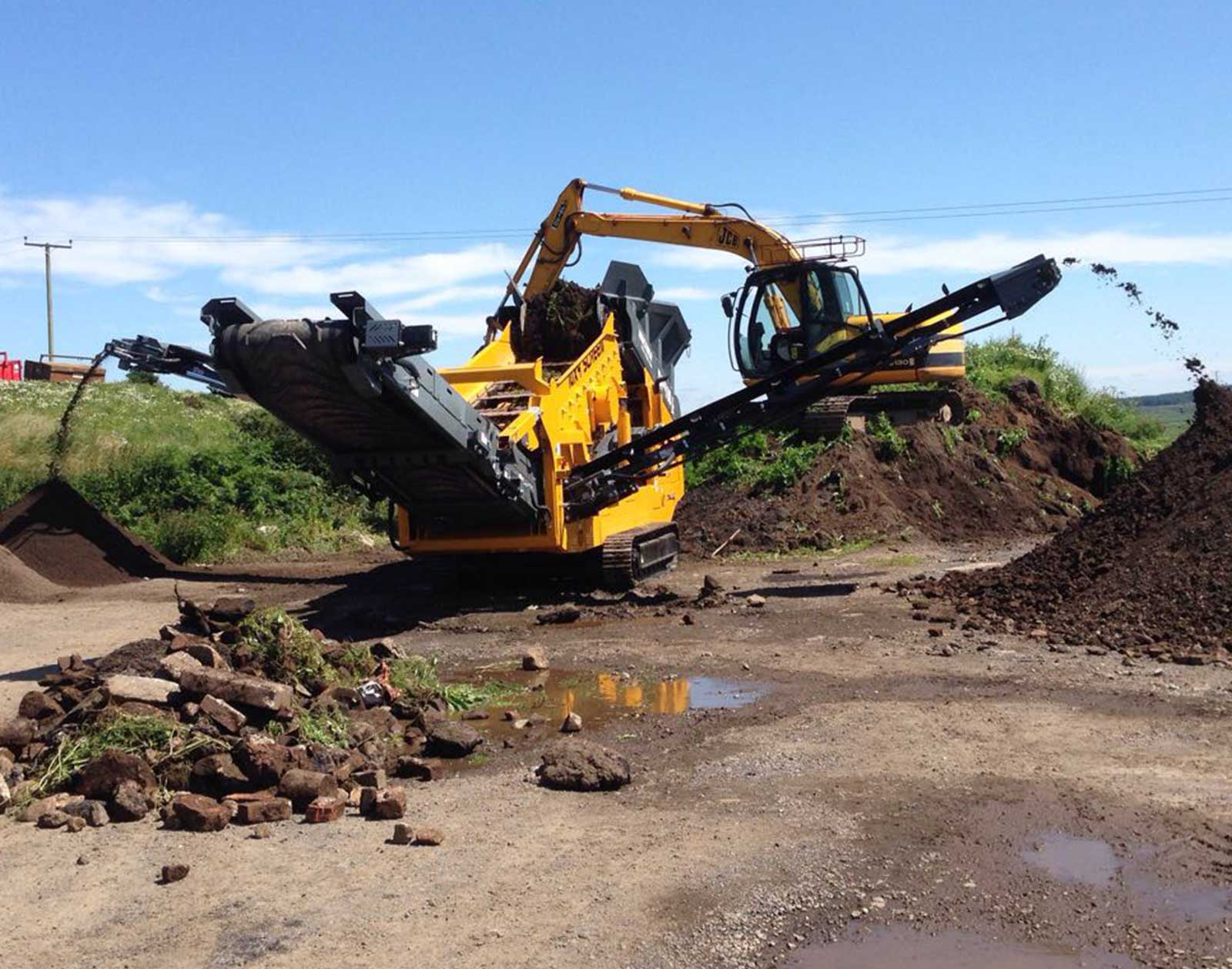

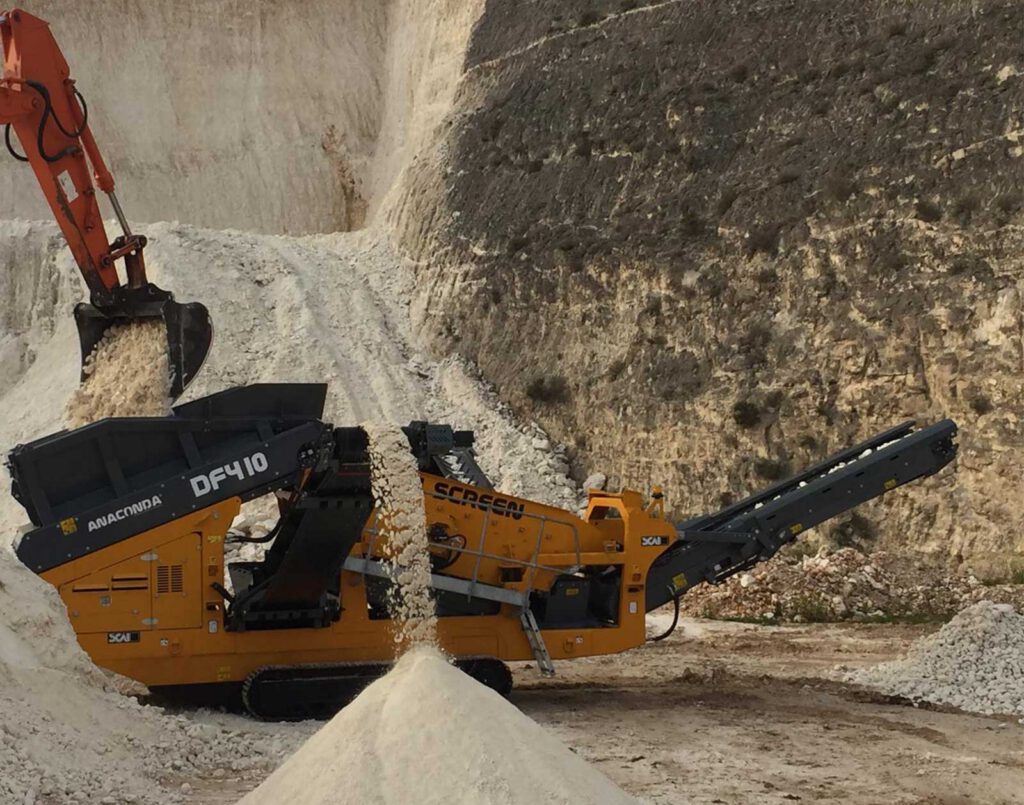

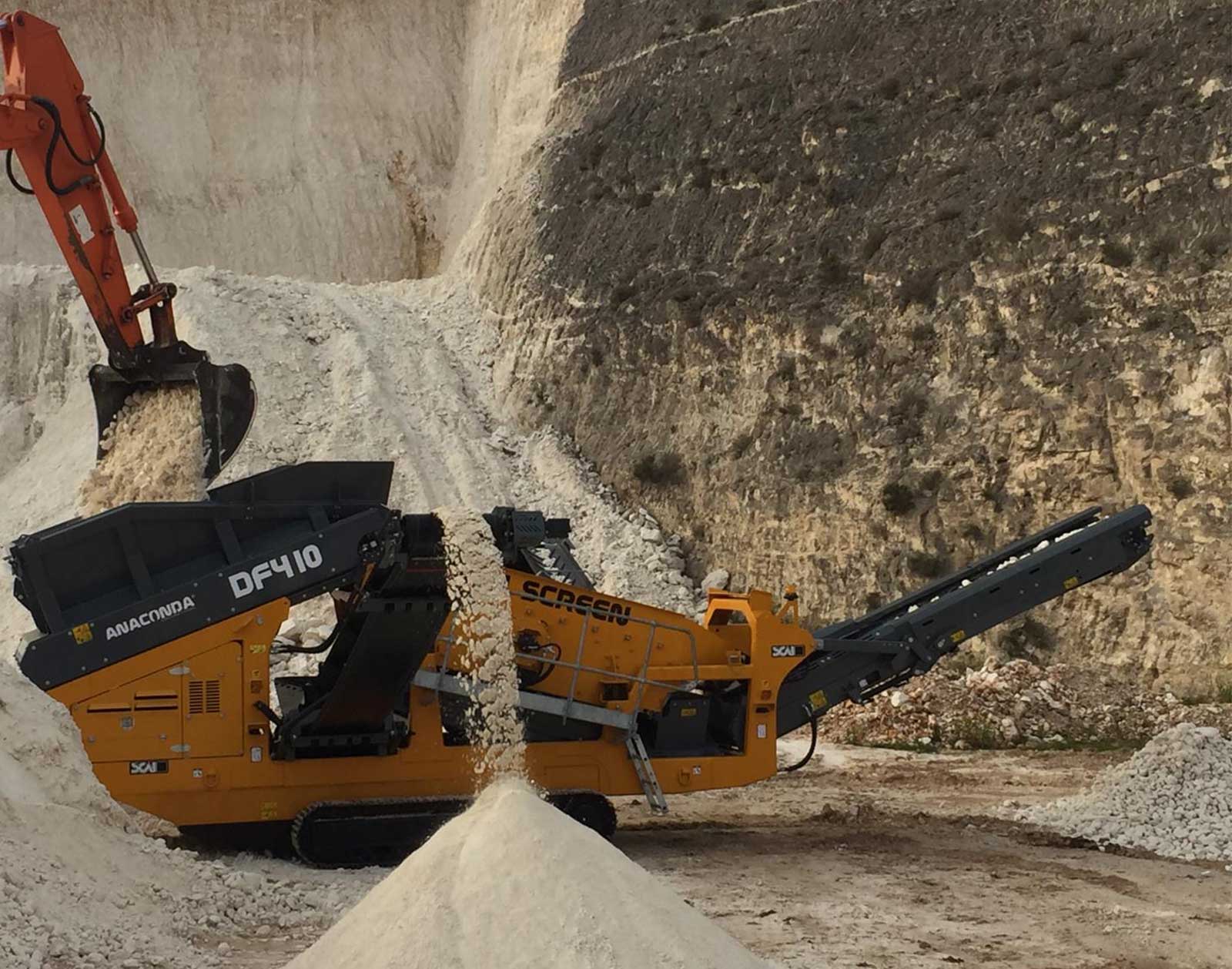

Anaconda DF410 Scalping Screen
Description
Optimum Screening Within a Confined Site
The Anaconda DF410 has been designed as a primary screening solution for operators who have low tonnage and straightforward operations. The DF410 can process up to 254 US tph with a max feed size of 12”, and suits applications such as quarry rock, virgin soil, recycled concrete, topsoil, riverbed, utility waste, scrap metal, and asphalt millings. The DF410 is 10’ x 4’ and contains two screen decks to make a total of 3 finished products.
Features & Benefits
Variable speed control on all belts (excluding fines)
Flip-down hopper tailgate for direct feeding from a crushing belt
Tail conveyor lowers hydraulically to easily access bottom screen deck
Side-tensioned top deck
End-tensioned bottom deck
Containerises for transport without breakdown
Optional Features
Screen deck options include mesh, Bofar bar, finger screens and punch plates · Radio remote control · Overband magnet on the oversize conveyor
Specifications

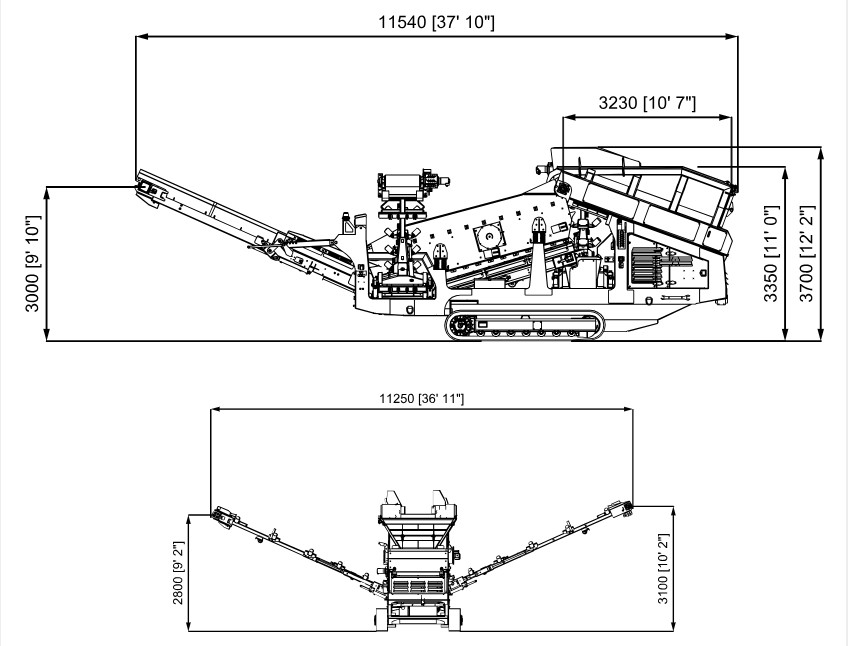

Anaconda DF410 Scalping Screen Specifications
Height12′ 1″ (3.70 m)
Length37′ 7″ (11.54 m)
Width36′ 9″ (11.25 m)
Weight34,400 lbs (15,600 kg)
Hopper Capacity5.9 yd³ (4.5 m³)
Fixed Screen Angle15° (15°)
Engine Options
ModelPowerEmissions
Deutz TD2011 L04i49 kW (66 HP)Tier 3
JCB 444 DieselMAX63 kW (85 HP)Tier 3 /Stage 3a
JCB 444 EcoMAX55 kW (74 HP)Tier 4 Final
Deutz TD2.9 L0450 kW (67 HP)Stage V
CAT C2.855 kW (74 HP)Stage V
JCB 43055 kW (74 HP)Stage V
Gallery
See It in Detail
