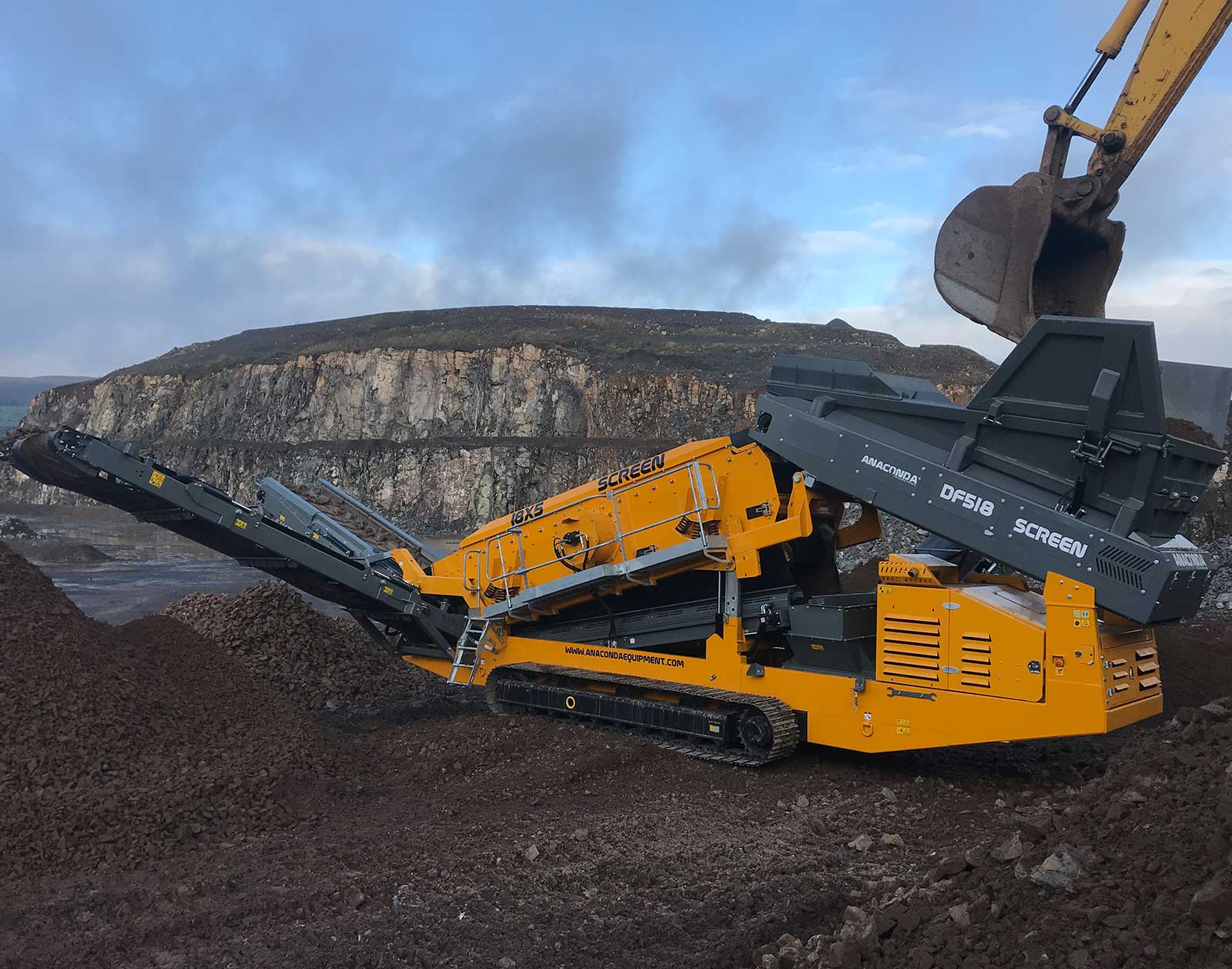

Anaconda DF518 Scalping Screen
Description
Screening Bulky and Heavy Materials With Ease
The Anaconda DF518 Scalping Screen is a primary screening solution for bulky and abrasive materials, such as quarry rock and overburden, with the ability to process up to 413 US tph at a max feed size of 12”. The DF518 has a 8’ x 6’ screen box and comes equipped with a hydraulically folding hopper and main conveyor as well as two hydraulically folding side conveyors.
Features & Benefits
5-piece side-tensioned top and second decks
3-piece end-tensioned bottom deck
Screen box walkways for safe, easy maintenance
Variable speed 4-ply belt feeder
Variable speed on all stockpile belts
Optional Features
Screen decks available in mesh, punch plate, finger tines and Bofor bars · Radio remote control · Apron feeder · Overband magnet
Specifications
Anaconda DF518 Scalping Screen Specifications
Height15′ 9″ (4.86 m)
Length50′ 8″ (15.49 m)
Width45′ 4″ (13.84 m)
WeightApron feed – 70,547 lbs / Belt feed – 67,240 lbs (Apron feed – 32,000 kg / Belt feed – 30,500 kg)
Hopper Capacity10.5 yd³ (8 m³)
Screen Box Angle13° – 17° (13° – 17°)
Engine Options
ModelPowerEmissions
CAT 4.4 ACERT96.5 kW (129 HP)Tier 3
JCB 444 DieselMAX85 kW (115 HP)Tier 3
JCB 444 EcoMAX93 kW (125 HP)Tier 4 Final
CAT 4.4110 kW (147 HP)Stage V
JCB 444 EcoMAX97 kW (130 HP)Stage V

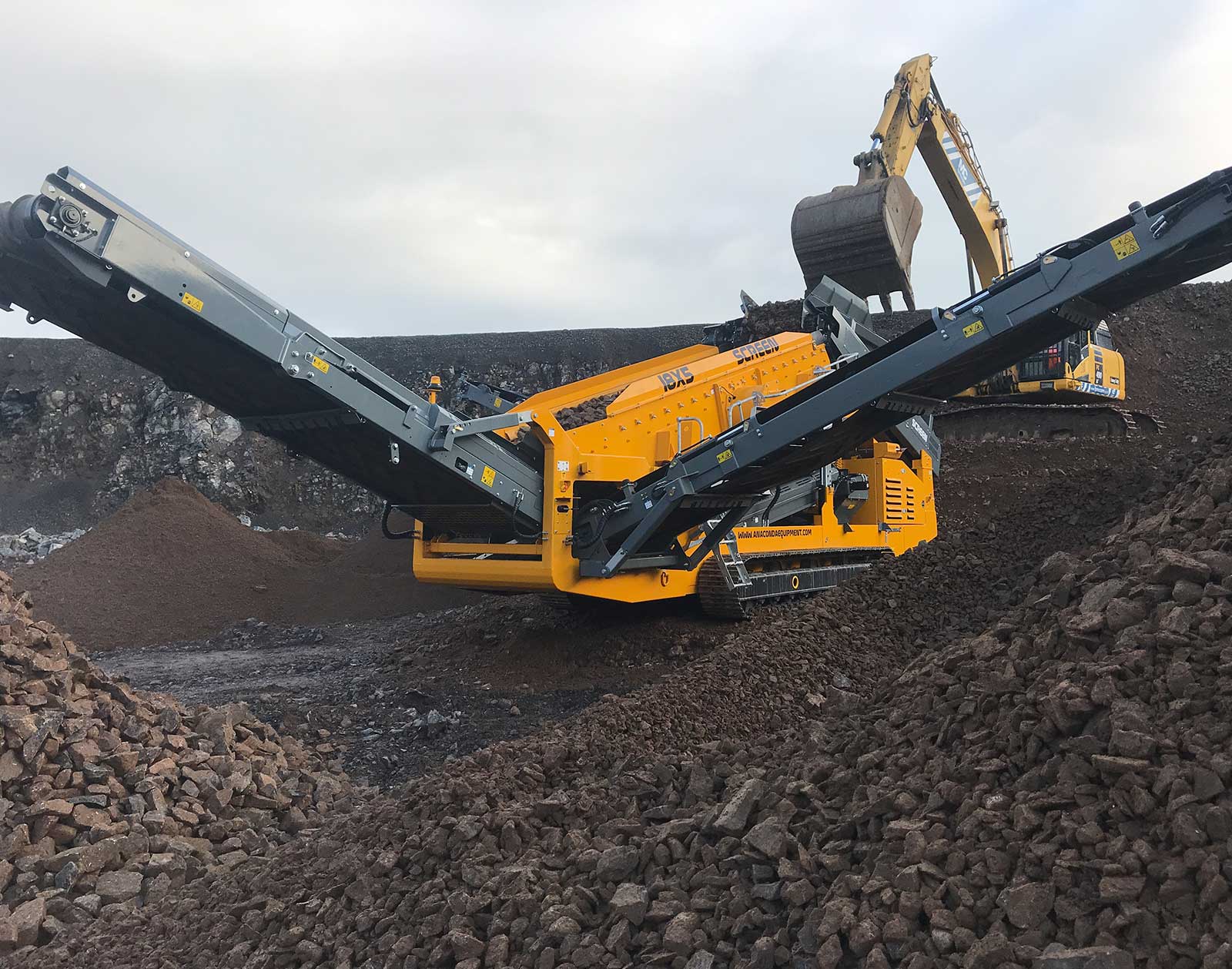

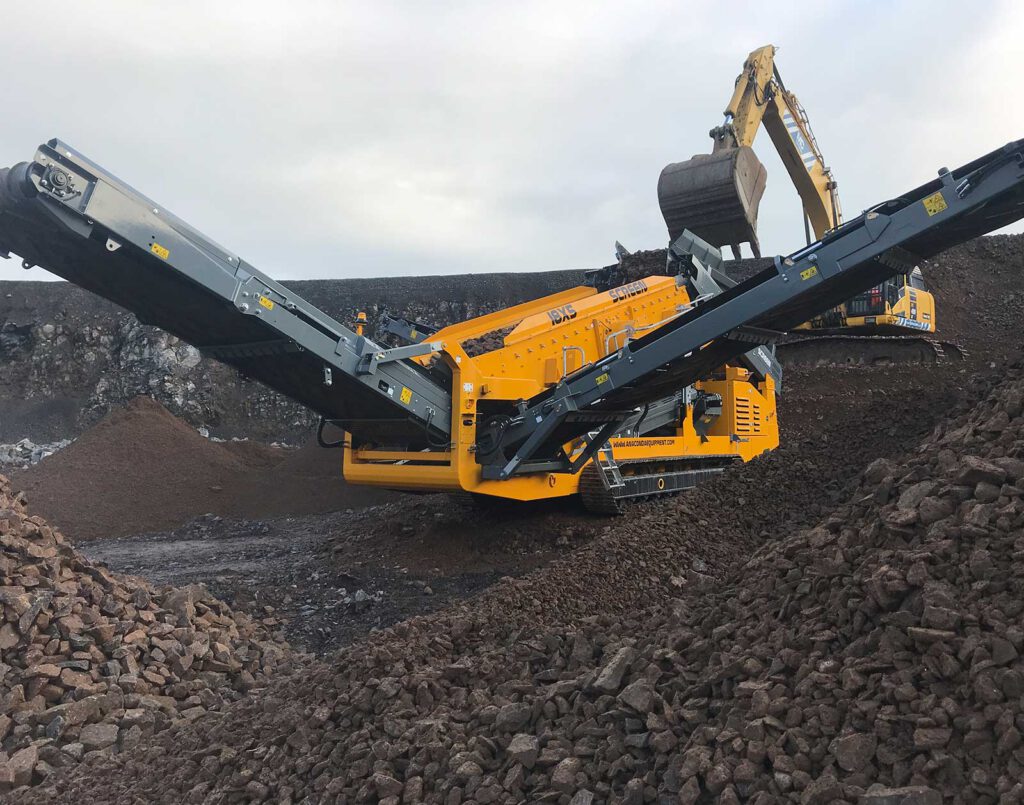

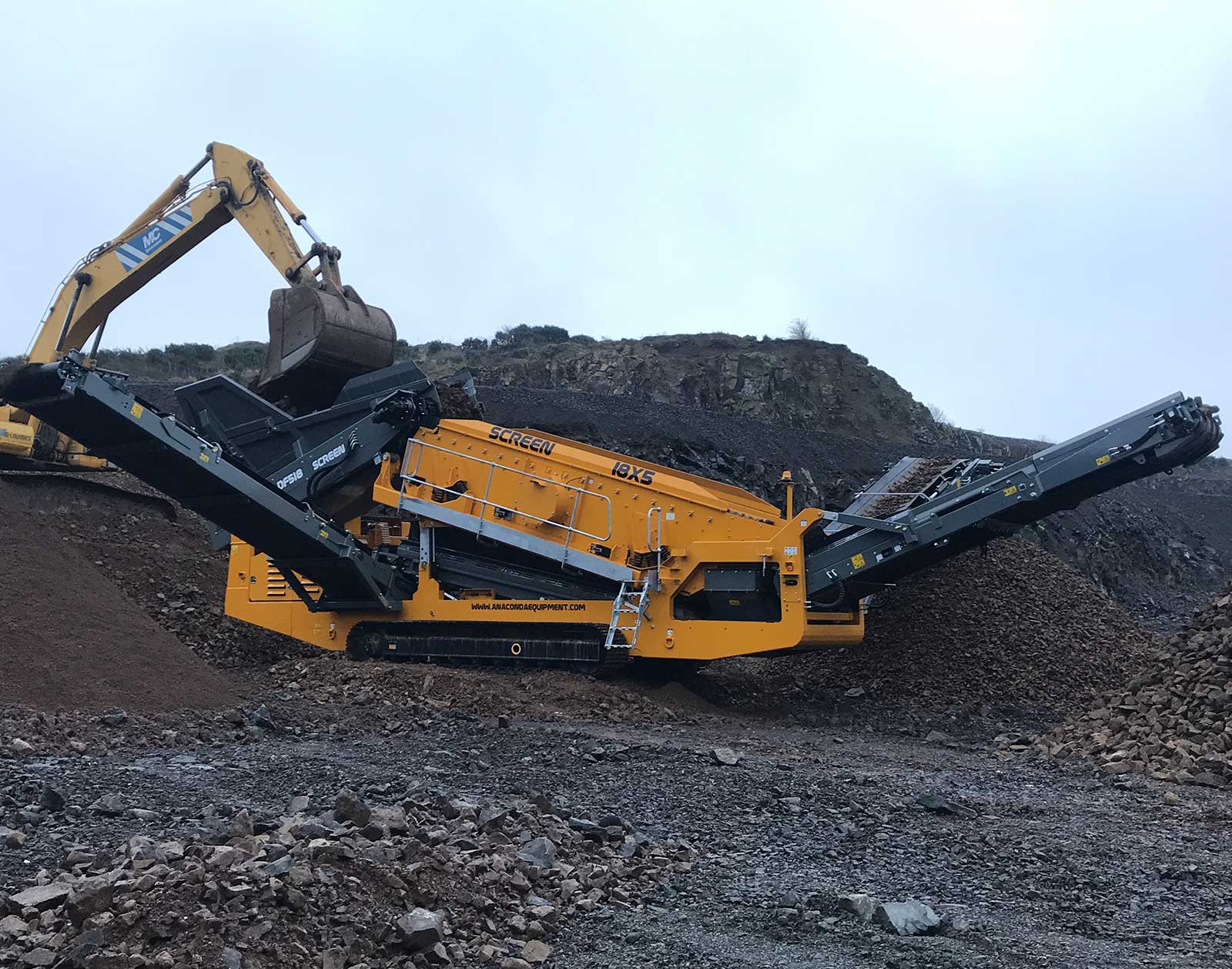

Gallery
