Anaconda · Scalping Screen
Anaconda FSL100 Scalping Screen
Description
High Duty Scalping For Road/Concrete Waste
The Anaconda DF518 Scalping Screen is a primary screening solution for bulky and abrasive materials, such as quarry rock and overburden, with the ability to process up to 413 US tph at a max feed size of 12”. The DF518 has a 18’ x 5’ screen box and comes equipped with a hydraulically folding hopper and main conveyor as well as two hydraulically folding side conveyors.
Features & Benefits
Adjustable vibrating grid
Hydraulic tipping function
6-ply conveyor belt
Flip hopper tailgate for direct feeding from the crushing belt
Optional Features
Dust covers for the main belt · Radio remote control · Overband magnet
Specifications
Anaconda FSL100 Scalping Screen Specifications
Height13′ 3″ (4.05 m)
Length40′ 4″ (12.30 m)
Width8′ 4″ (2.56 m)
Weight41,667 lbs (18,900 kg)
Hopper Capacity6.3 yd³ (4.8 m³)
Engine Options
ModelPowerEmissions
Deutz 201149 kW (66 HP)Tier 3
JCB 444 DieselMAX63 kW (85 HP)Tier 3
JCB 444 EcoMAX55 kW (74 HP)Tier 4 Final
Deutz 2.9 L450 kW (67 HP)Stage V
JCB 43055 kW (74 HP)Stage V

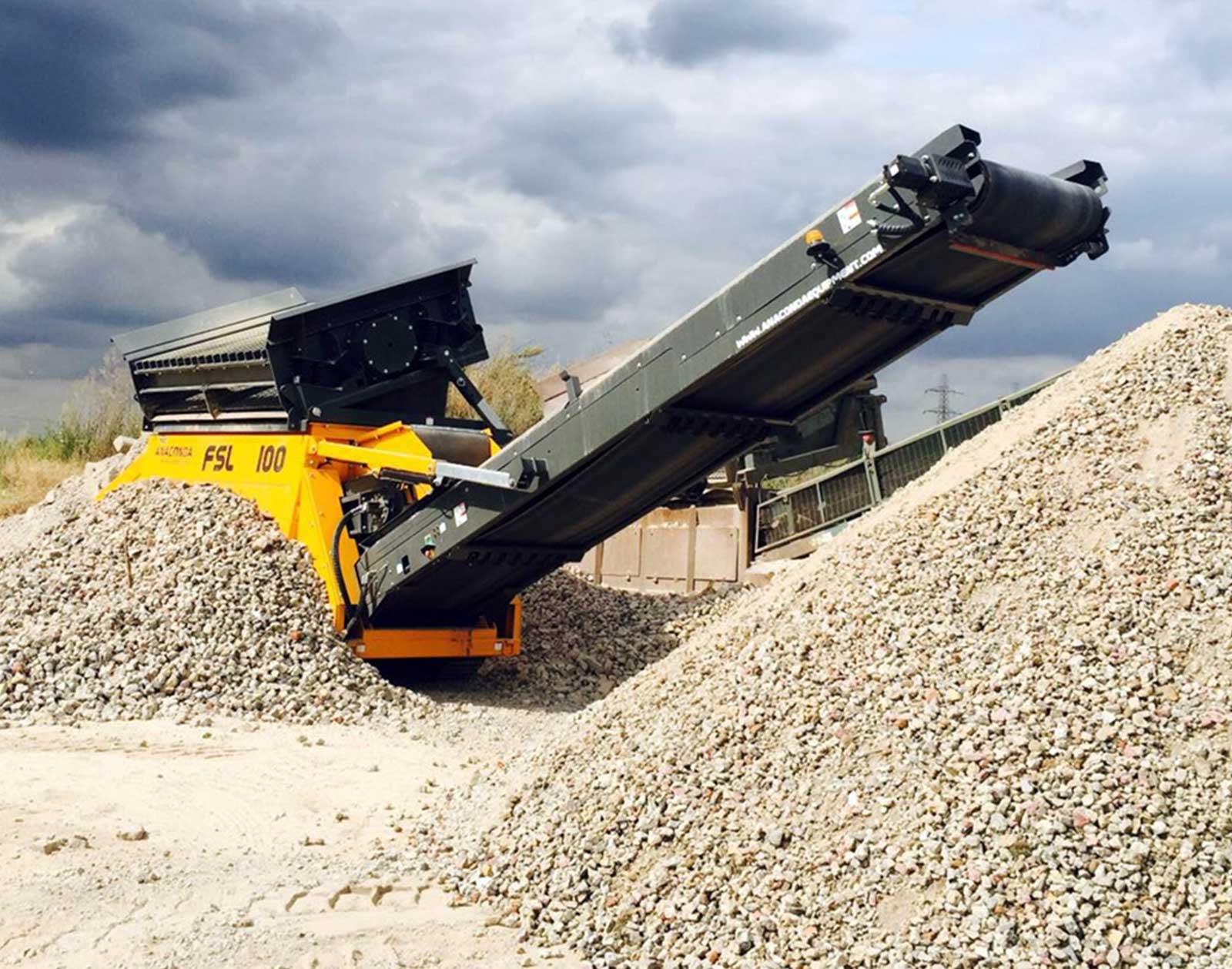

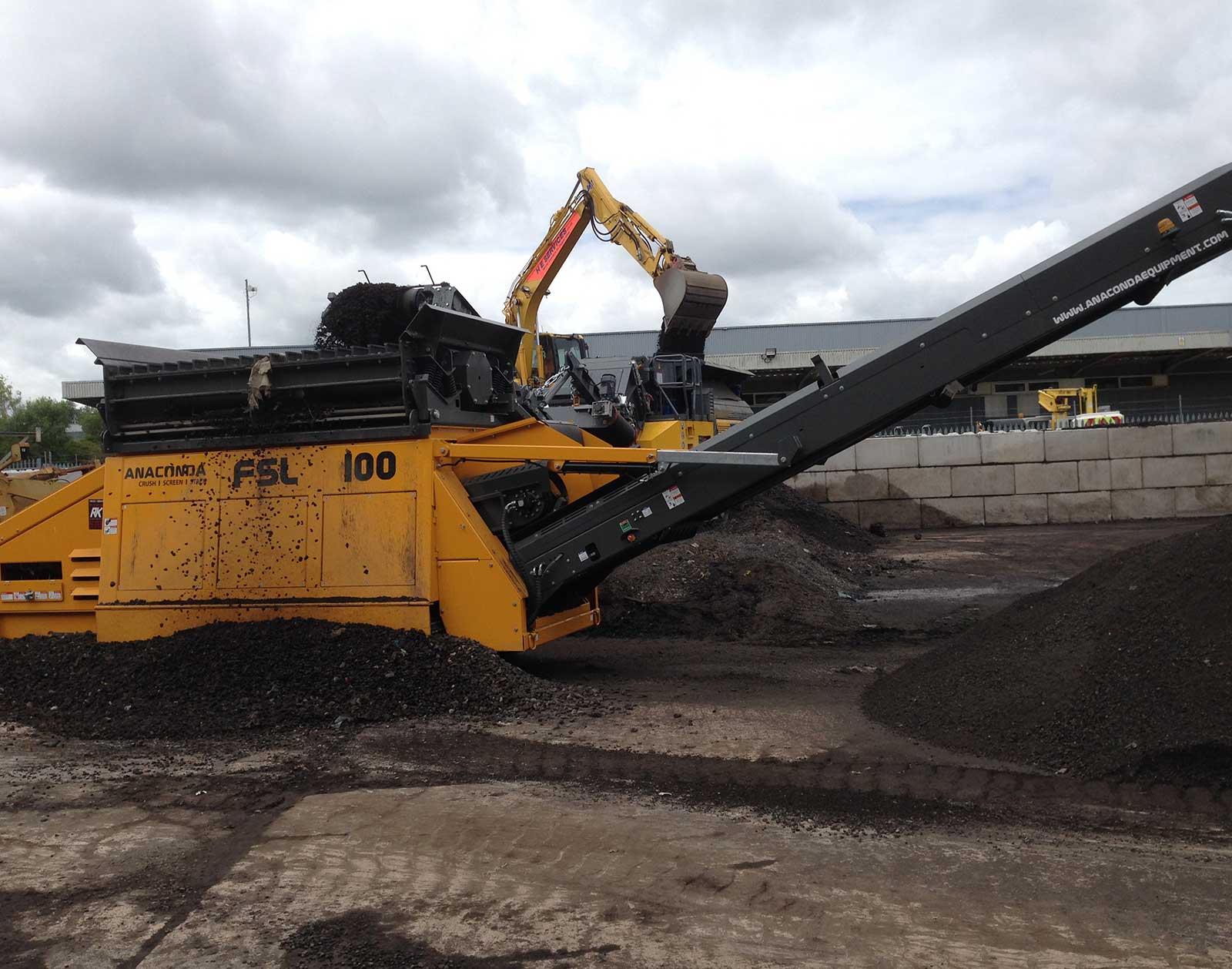

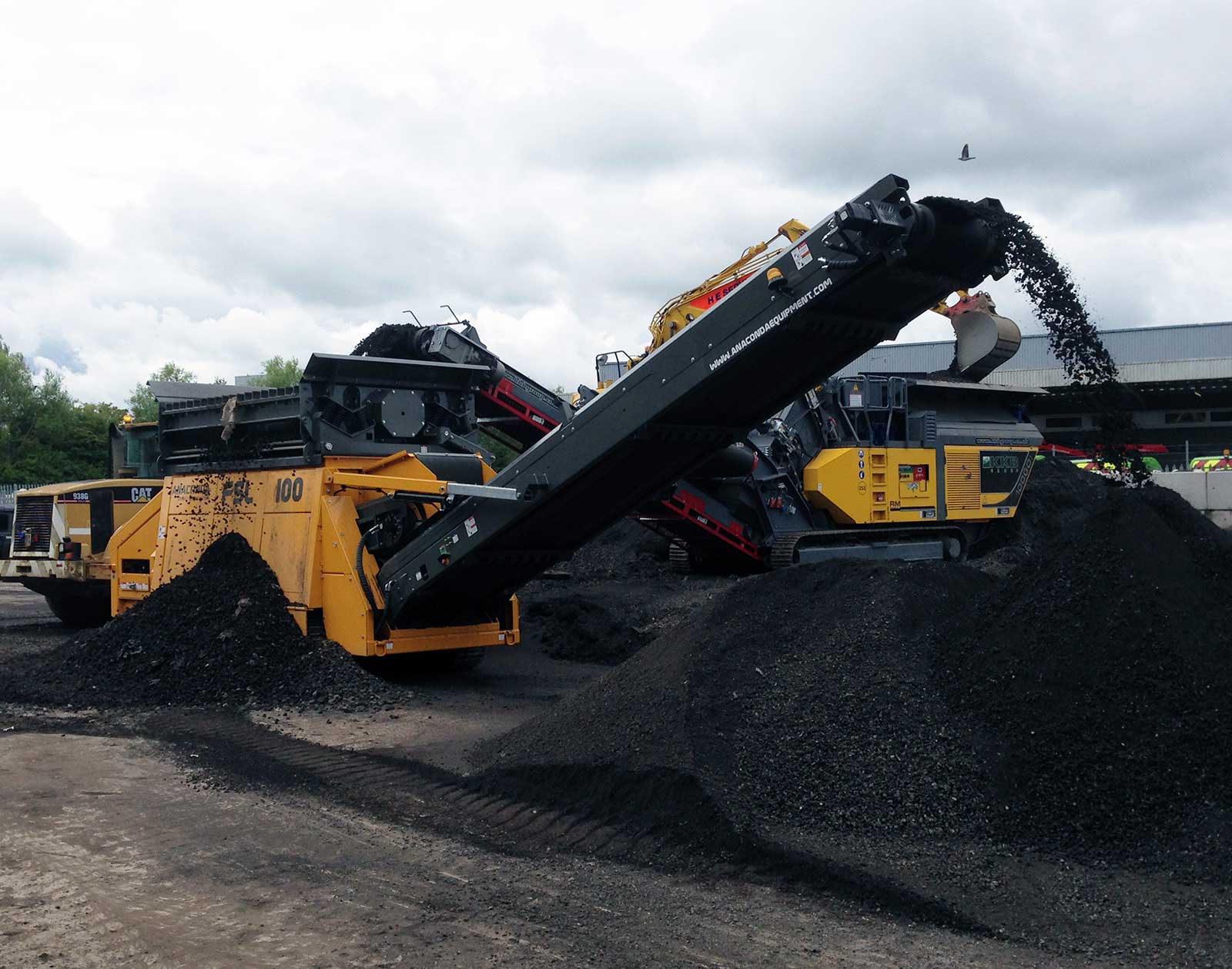

Gallery
See It in Detail
