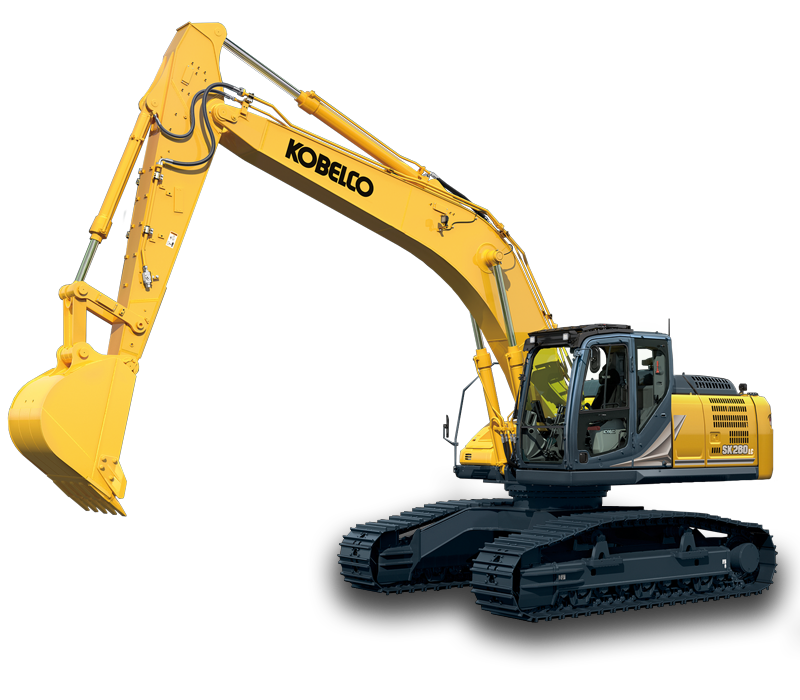

KOBELCO SK260LC-11 High & Wide Excavator
Description
Power and Durability You Can Trust

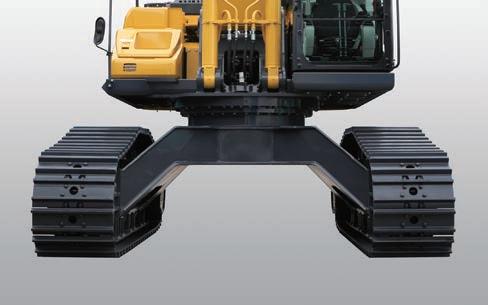

With their wider stance and increased clearance, KOBELCO High & Wide excavators can tackle jobs usually reserved for bigger machines – including forestry work, craning large pipe, and loading out trucks. The SK260LC-11 H&W features an overall width of 11’ 8”, making it stable under the heaviest of loads. Plus, it offers all the standard features you expect from a KOBELCO, including independent travel, swing flashers, and premier operator comforts.
Features & Benefits
Higher torque value resulting in a greater digging force of 42,000 lbs.
Lifting capacity of 21,540 lbs.
Heavy-duty hydraulic fittings and connectors
Great multi-function capabilities
Premier operator safety and comfort
Specifications

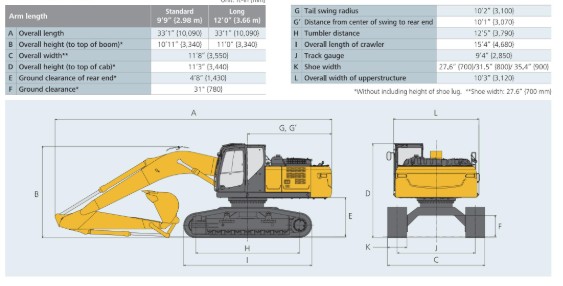

KOBELCO SK260LC-11 High & Wide Excavator Specifications
Operating Weight65,000 lbs.
Overall Height11’ 3”
Overall Width11’ 1”
Max. Lifting Capacity21,540 lbs.
Travel Speed3.6 mph
EngineYanmar 4TNV107FTT
Power194 hp
Tail Swing10’ 2”
Max. Digging Depth23'
Max. Digging Reach33' 10"
Fuel Tank106.5 gallons
Engine Options
ModelPowerEmissions
Yanmar 4TNV107FTT194 mphStage IV F
