Anaconda · Finishing Screen

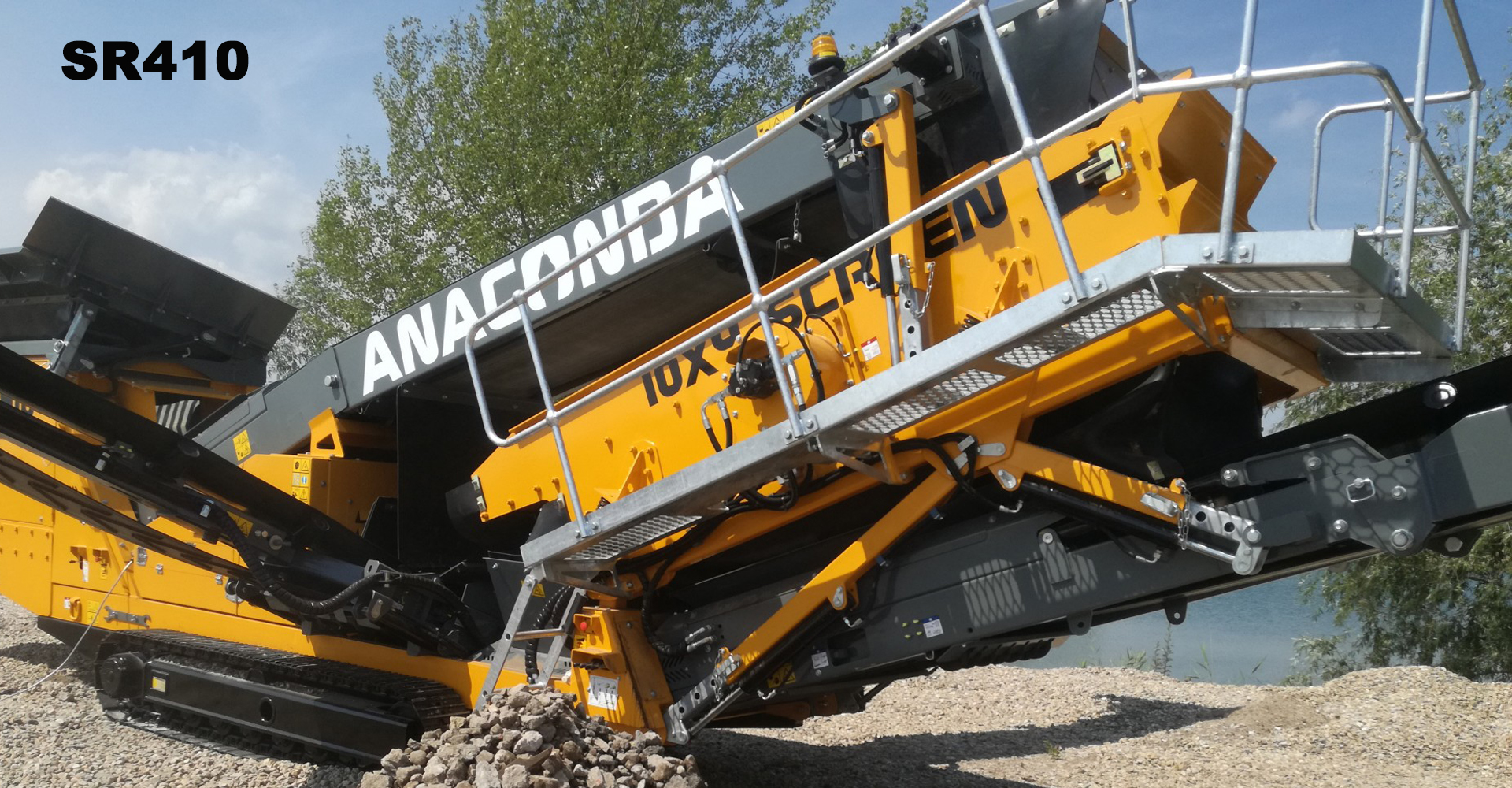

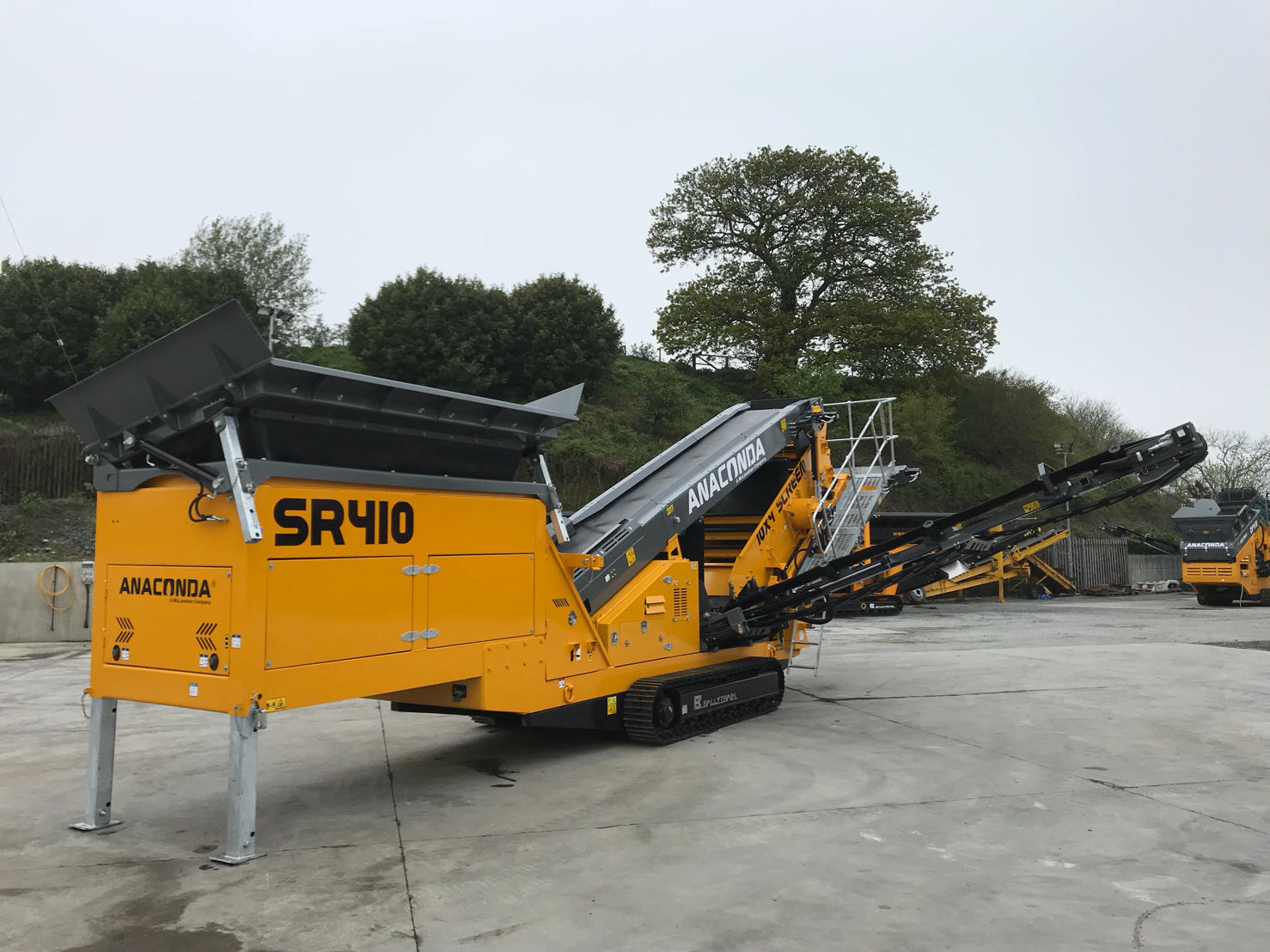

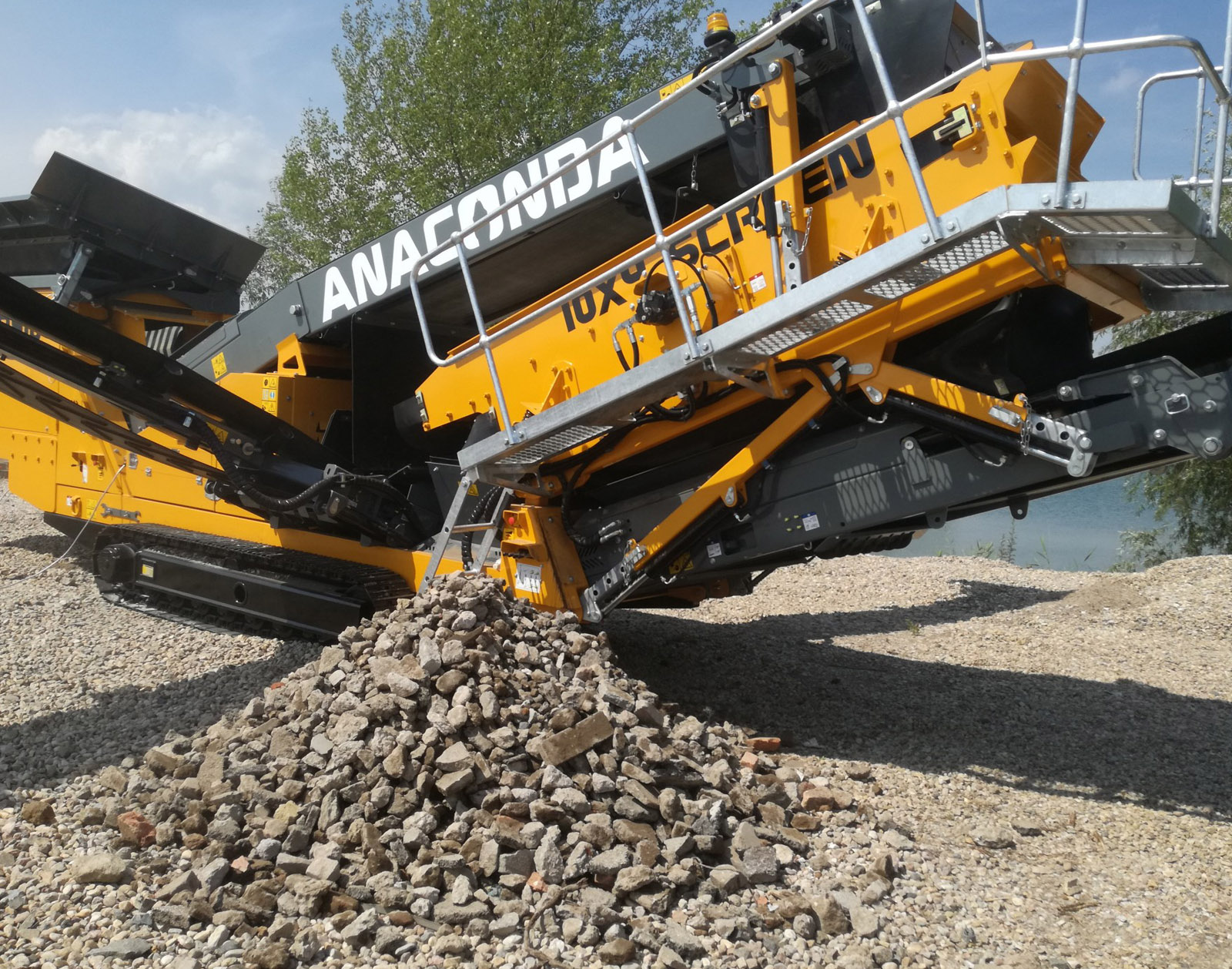

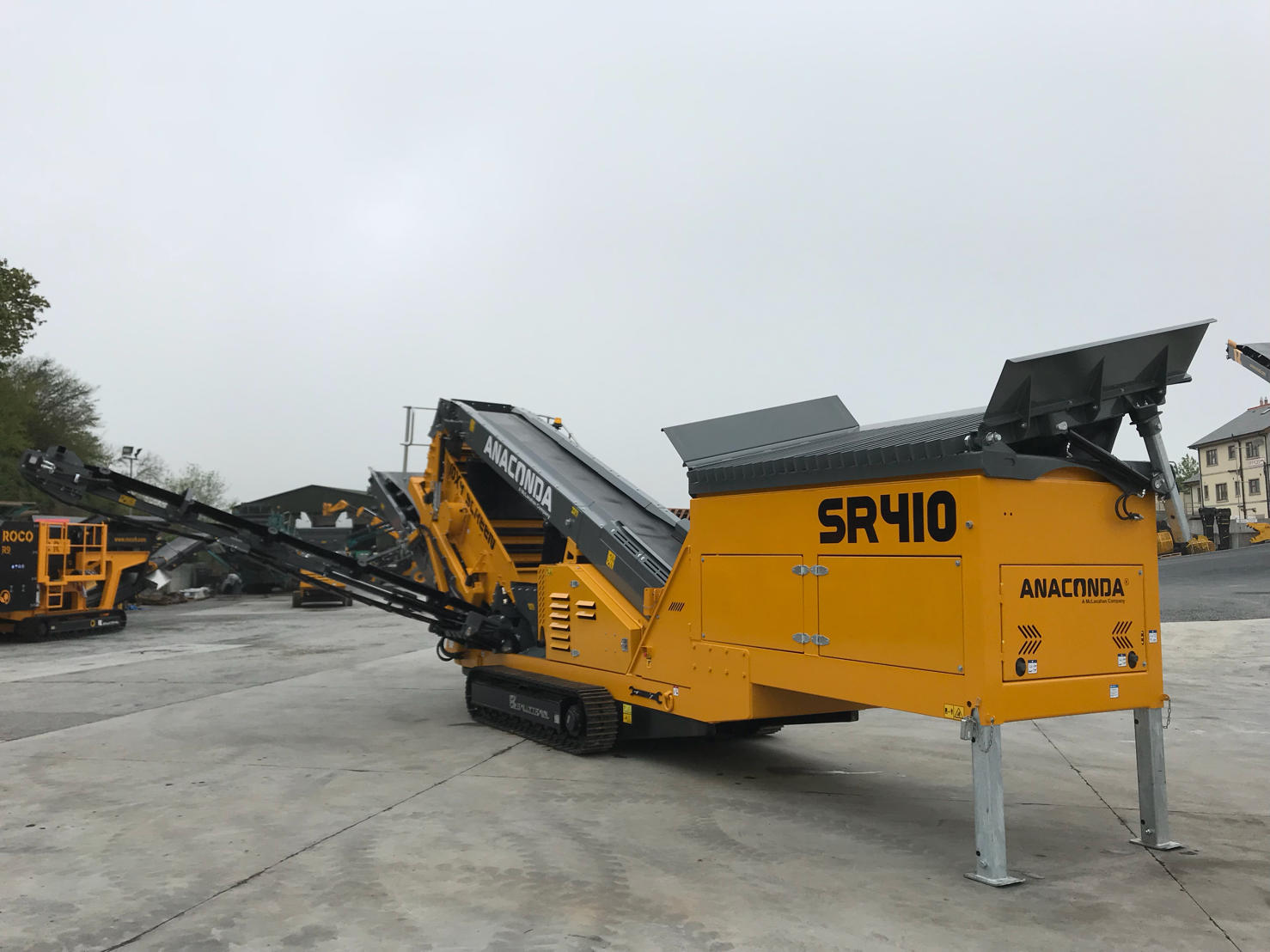

Anaconda SR410 Finishing Screen
Description
Ideal For Any Fine Screening Application.
The Anaconda SR410 Finishing Screen can stockpile up to 3 products simultaneously at a rate of 220 US tph. The max feed size for the SR410 is 3”, and it has a 10’ x 4’ two-bearing screen box, 14′ feed hopper, and 3 hydraulically folding stockpile conveyors. The SR410 can handle sand, gravel, coal, and aggregates, making it a versatile solution for operators across multiple job sites. The small footprint of the SR410 makes it easy to maneuver in tight spaces and can be set up and commissioned within 20 minutes of arrival on site.
Features & Benefits
Fully adjustable spreader plate for optimal screening
End-tensioned mesh arrangement
Screen box and tail conveyor lower for easy mesh change
Variable speed 3-ply belt feeder
Variable speed main and side conveyors
Radio remote tipping grid
Optional Features
Screen decks available in mesh or piano wire · Hopper extensions · Dust covers
Specifications
Anaconda SR410 Finishing Screen Specifications
Height14′ 1′ (4.30 m)
Length44′ 6″ (13.60 m)
Width36′ 1″ (11 m)
Weight34,000 lbs (15,500 kg)
Hopper Capacity7.1 yd³ (5.8 m³)
Screen Box Angle28° – 36° (28° – 36°)
Engine Options
ModelPowerEmissions
Deutz 201149 kW (66 HP)Tier 3
JCB 444 DieselMAX63 kW (84 HP)Tier 3
JCB 444 EcoMAX55 kW (74 HP)Tier 4 Final
Deutz 2.9 L450 kW (67 HP)Stage V
