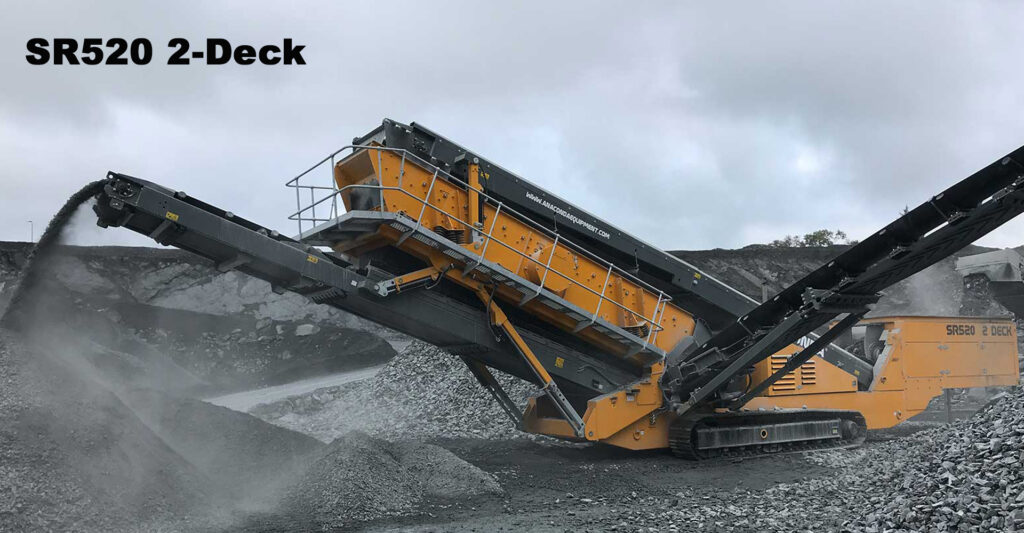

Anaconda SR520 Finishing Screen
Description
Screening 4 Products Efficiently
The Anaconda SR520 Finishing Screen is a dry screening solution for materials such as quarry aggregates and road base. Available in 2-deck and 3-deck configurations, the SR520 features a 14′ hopper and can process up to 385 US tph. It produces up to 4 finished products: fines, mids, mids oversize and oversize.
Features & Benefits
Built to Run Hard
20' x 5' 2 or 3-deck screen
Adjustable screen box angle – 18° to 30°
3-piece end-tensioned mesh arrangement for the bottom deck
5- piece side-tensioned mesh arrangement for top and secondary decks
Screen box and tail conveyor lower for mesh changeouts
Variable speed 4-ply belt feeder
Variable speed main and side conveyors
Radio remote tipping grid
Optional Features
Screen decks available in mesh or piano wire · 2 or 3-deck configuration · 2-deck vibrating grid · Radio remote control · Dust covers · Anti-rollback feature · Overband magnet
Specifications

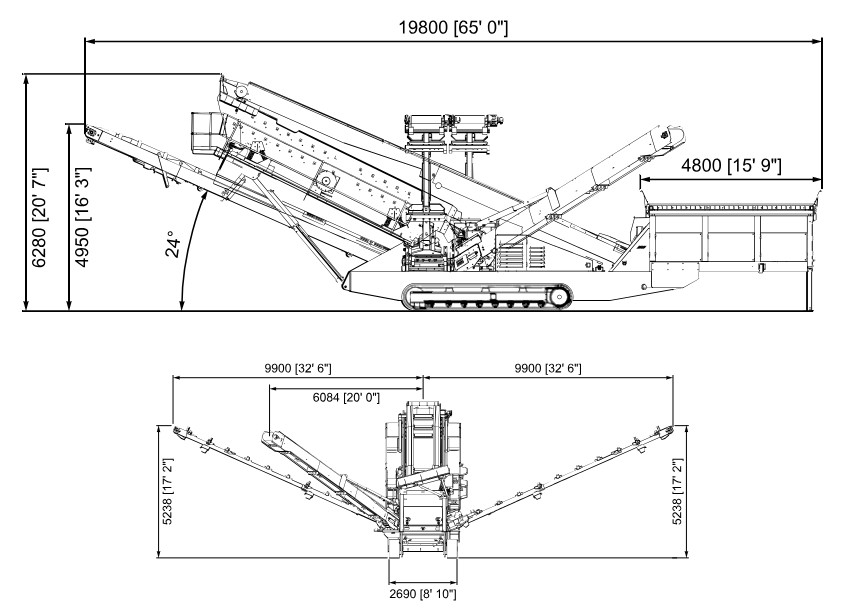

Anaconda SR520 Finishing Screen Specifications
Height2-Deck – 20′ 7″ / 3-Deck – 20′ 7″ (2-Deck – 6.28 m / 3-Deck – 6.28 m)
Length65′ (19.80 m)
Width64′ 9″ (19.80 m)
Weight2-Deck – 76,940 lbs / 3-Deck – 85,010 lbs (2-Deck – 34,900 kg / 3-Deck – 38,560 kg)
Hopper Capacity10.4 yd³ (8 m³)
Engine Options
ModelPowerEmissions
CAT 4.496.5 kW (129 HP)Tier 3
JCB 444 DieselMAX120 kW (161 HP)Tier 3
JCB 444 EcoMAX129 kW (173 HP)Tier 4 Final
CAT (dual-certified)110 kW (148 HP)Stage V
JCB 444 EcoMAX129 kW (173 HP)Stage V

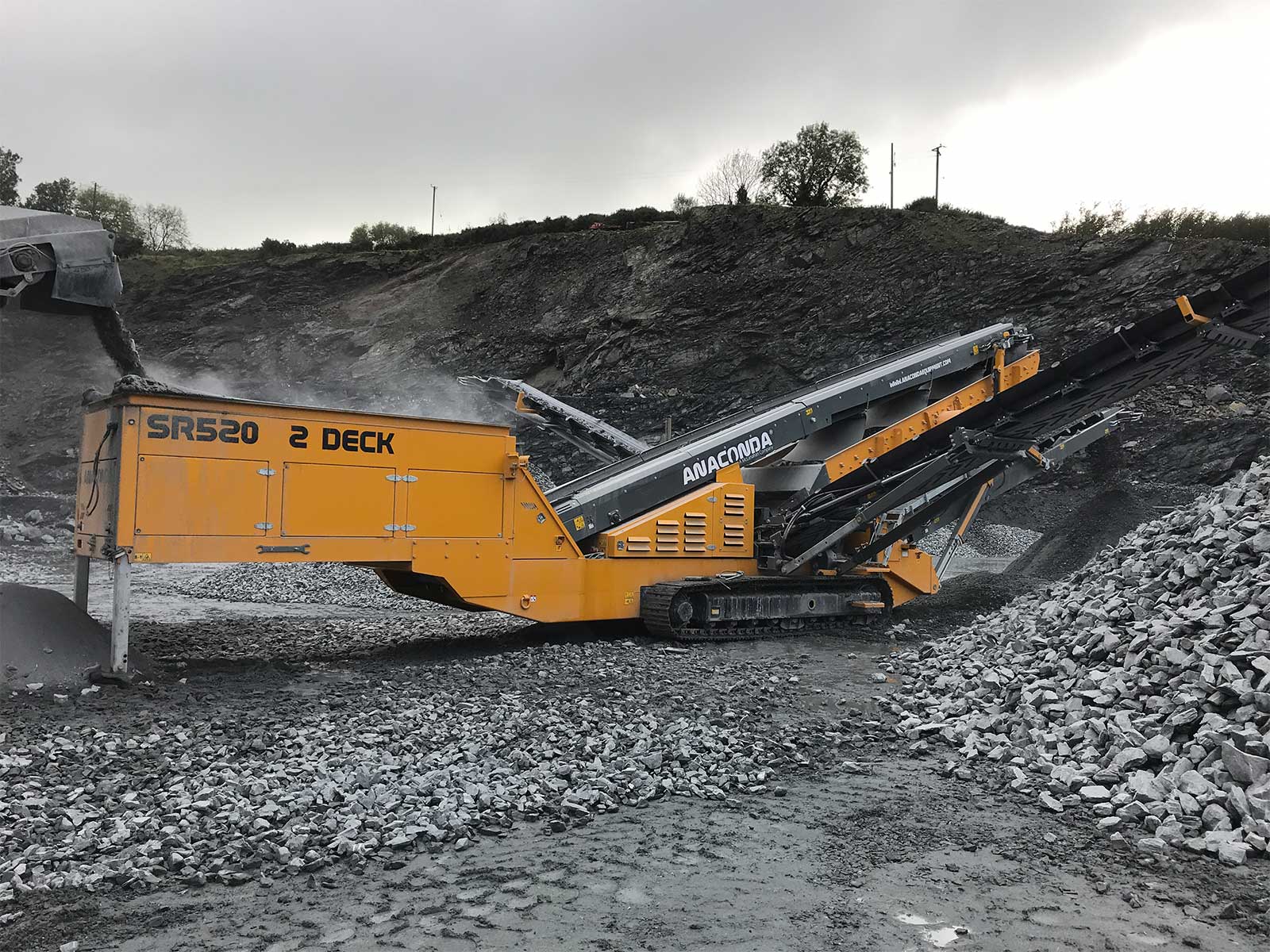

Gallery
