AUSA · Telehandler

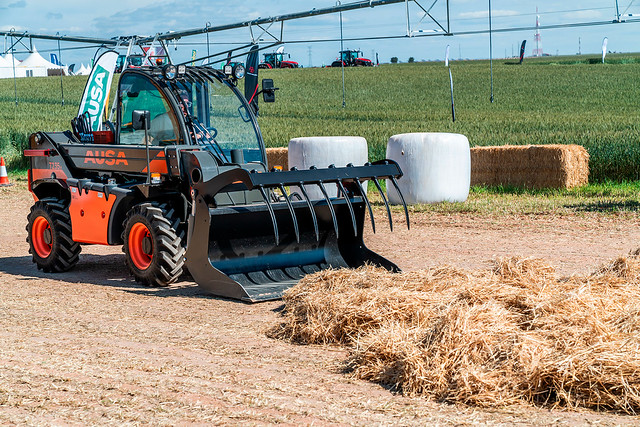

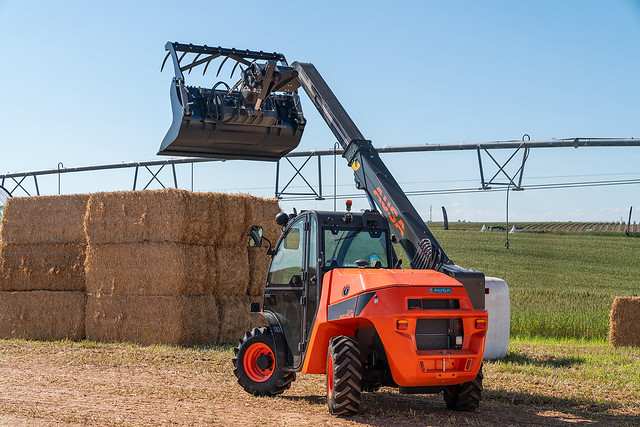

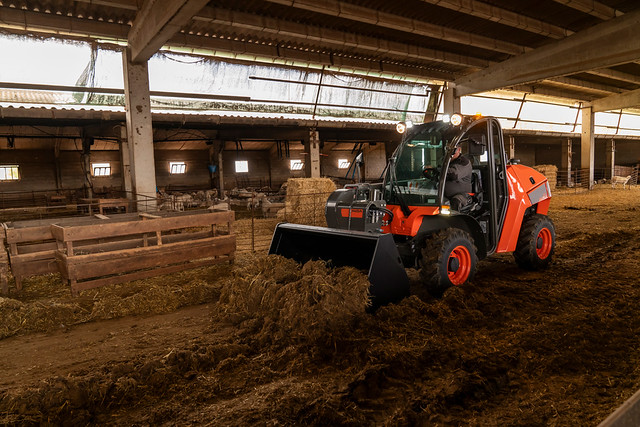

AUSA T204H Telehandler

Where Stability & Power Meet For Greater Versatility

With a payload of 3,900 lbs. and a height of 13.8 ft., the T204H is the most compact and advanced telescopic handler of its class.  From the interior digital display, the operator will be able to control any part of the telehandler and easily, quickly, and efficiently access the diagnostics menu and all maintenance parameters.

It is a highly versatile machine that can easily adapt to any terrain thanks to its 4x4x4 drive and three steering modes: front-wheel, all-wheel, and crab. A perfect combination that makes machine movements and approaches easier, especially on terrain with little room for maneuver. With its hydraulic functions and quick-connect couplings for accessories and implements, you can exponentially expand its capabilities and applications.

Thanks to the exceptionally designed cab, which provides the operator with a spacious and functional space. The cab design and boom placement provide the operator with a 360° view, making the work environment safe for all involved.

Features & Benefits
Three steering modes: front-wheel, all-wheel and crab
AUSA mechanical and universal hydraulic quick couplers
Advanced digital displays for operator control and safety
All-in-one joystick with inverted functions
Large loading capacity and extensive reach
Tilting cab with air conditioning

AUSA T204H Telehandler Specifications

Load Capacity3,900 lbs.
Max Lift Height13.8 ft.
Max Reach7.4 ft.
Load at Max Height1,960 lbs.
Overall Weight9,457 lbs.
TransmissionHydrostatic
Max. Speed12.4 mph
Max. Gradient42%
Turning Radius119.75 in.
SteeringFront-wheel, four-wheel and crab
Traction4x4x4
Tires10/75-15.3
Fuel Capacity17.2 gal

Engine Options

ModelPowerEmissions
Kubota D1803-CR-T-E5B44.5 hpStage V - EPA Tier 4f
