Anaconda TD620 Trommel Screen
Description
Engineered For Optimum Productivity
The Anaconda TD620 Trommel Screen is a robust primary screening solution for operators seeking to process a range of organic materials, including topsoil, sand, shredded waste, aggregate, dolomite, and compost. The TD620 can process up to 220 US tph with a max feed size of 12” and max screen size of 3”. The Trommel Screen range has been designed with a lift bar system to effectively cut through wet materials and prevent build-up in the drum.
Features & Benefits
Quick set up within 20 minutes of arrival on site
Four-wheel hydraulic drive drum system
Variable speed on the screening drum and all conveyors
Drum load sensing system
Optional Features
Radio remote tipping grid · Hopper extensions · Punch plate solid drum
Specifications

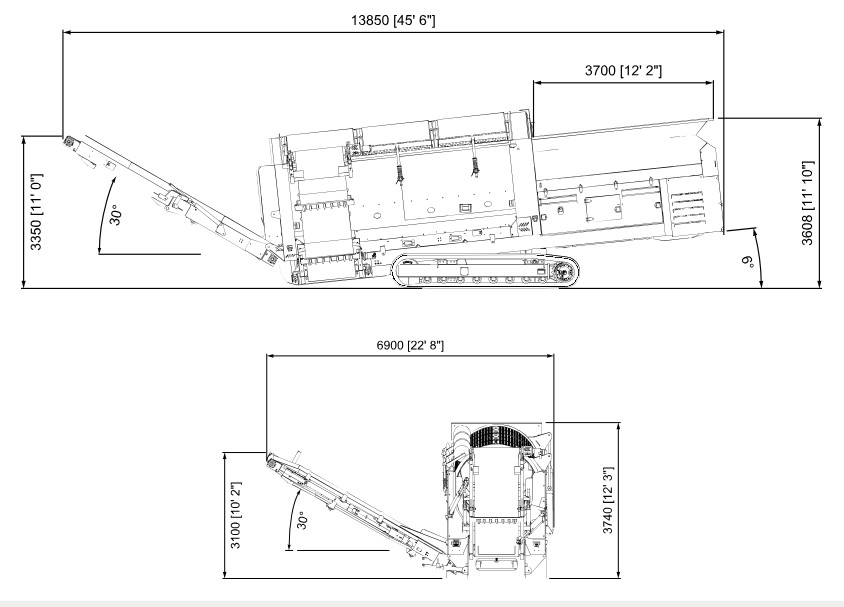

Anaconda TD620 Trommel Screen Specifications
Height12′ 3″
Length45′ 4″
Width22′ 6″
Weight44,000 lbs.
Hopper Capacity12.6 yd³
Screen Angle0° – 6°
Screen Drum Length18′
Screen Drum Diameter6′ 5″
Engine Options
ModelPowerEmissions
CAT 4.4 LRC74.5 kW (100 HP)Tier 3
JCB 444 DieselMAX85 kW (114 HP)Tier 3/Stage 3a
JCB 444 EcoMax93 kW (125 HP)Tier 4 Final
CAT C3.6100 kW (134 HP)Stage V
